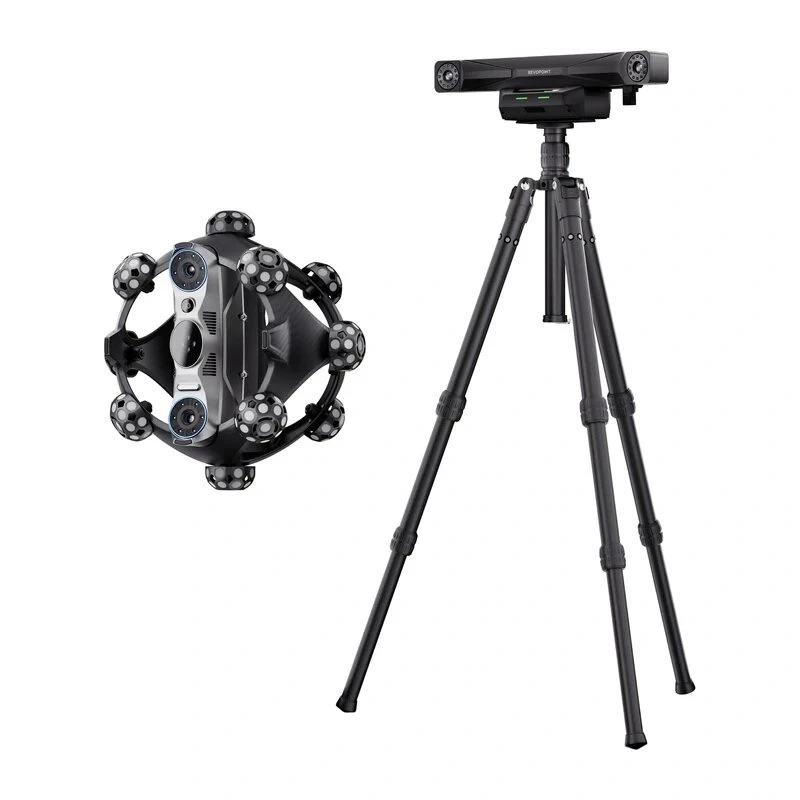

Revopoint Trackit SR CMM Edition 3D Optical Scanner - Portable Infrared Tracking System for Industrial Metrology, 0.02 mm Accuracy

In the demanding world of industrial metrology, achieving high-precision 3D measurements often requires expensive, stationary coordinate measuring machines (CMMs) that are complex to operate and impossible to move. The Revopoint Trackit SR CMM Edition 3D Optical Scanner breaks that mold, delivering professional-grade tracking and scanning accuracy in a compact, portable solution. It transforms your compatible Revopoint scanner into a dynamic, wireless measurement system, enabling you to capture precise 3D data directly on the shop floor, in the field, or anywhere your work takes you.

Who is it for

This optical tracker is engineered for quality control engineers, reverse engineering specialists, and metrology professionals who need reliable, high-accuracy measurements without the constraints of a fixed CMM. Whether you're inspecting machined parts, verifying assemblies, or digitizing components for CAD comparison, the Trackit SR CMM Edition is your versatile partner. It's also ideal for researchers and educators in advanced manufacturing environments who require a flexible, precise scanning setup.

Main features

• Professional-Grade Accuracy: Achieve single-frame accuracy up to 0.02 mm and volumetric accuracy up to 0.05 mm/m, ensuring your measurements meet rigorous industrial standards.
• Infrared Optical Tracking: The tracker uses infrared optical technology to follow the scanner's position in real time, providing stable and reliable tracking across a working volume from 0.3m x 0.3m x 0.3m up to 1.5m x 1.5m x 1.5m.

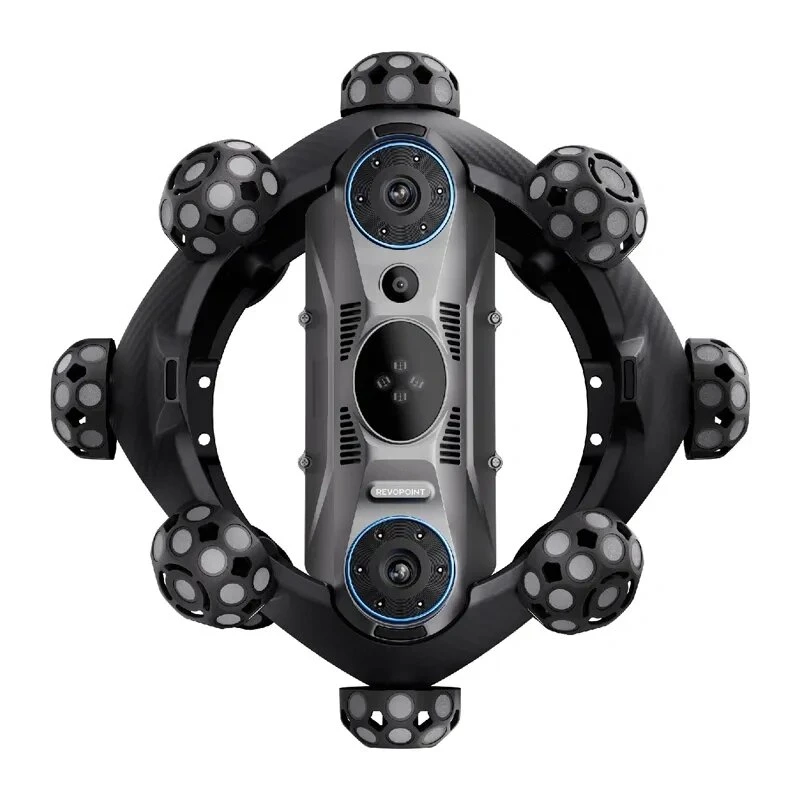

• Wide Compatibility: Works seamlessly with Revopoint MINI, RANGE, POP 3, and INSPIRE scanners, turning them into high-precision CMM systems.
• Flexible Connectivity: USB Type-C connection ensures fast data transfer and easy setup with Windows, Android, iOS, and macOS devices.

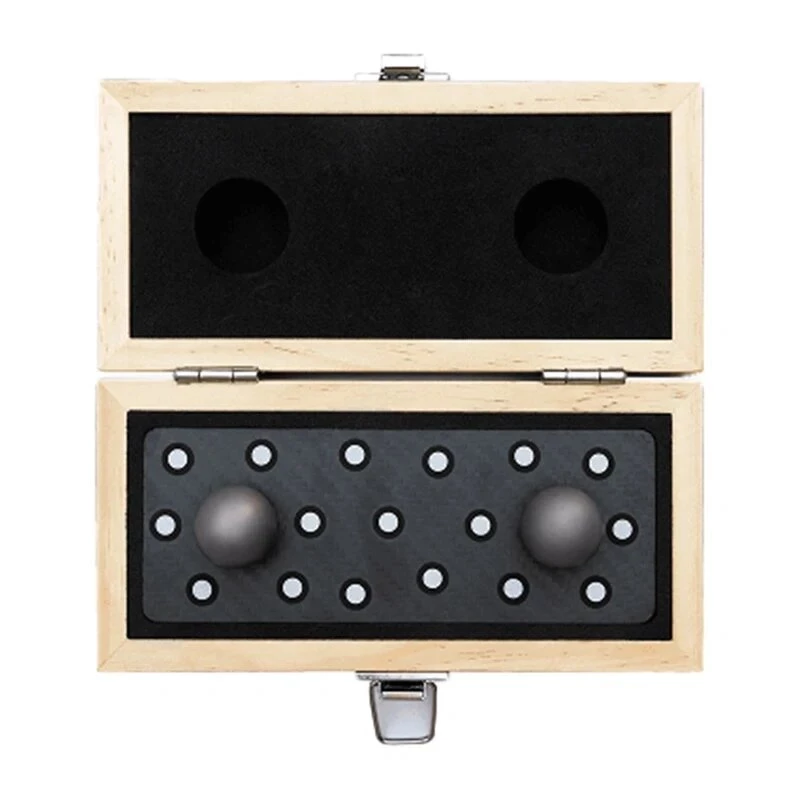

• Automatic Calibration: Marker-based calibration simplifies the setup process, reducing downtime and ensuring consistent accuracy.

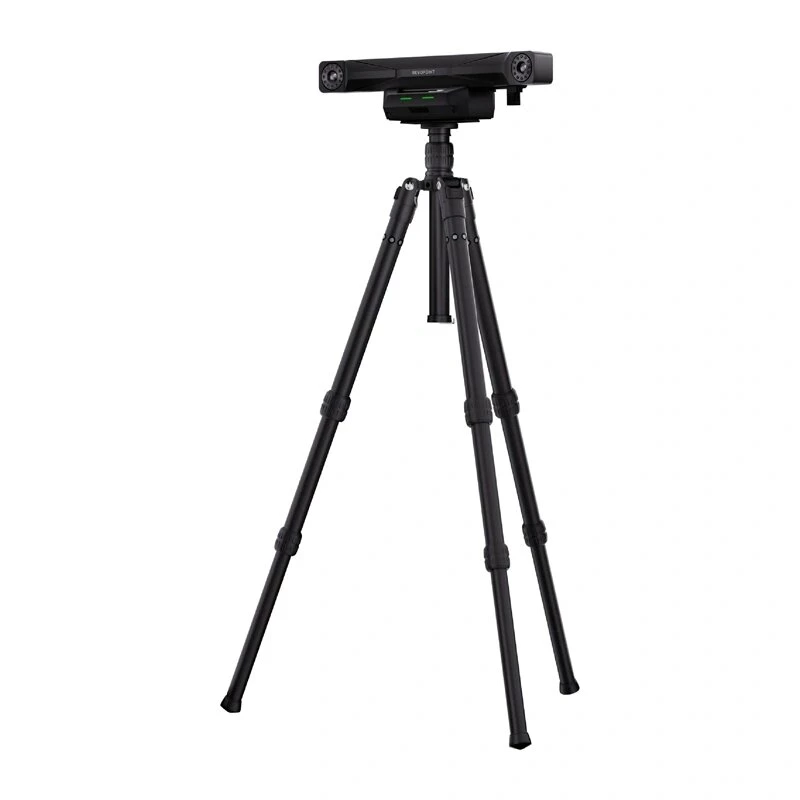

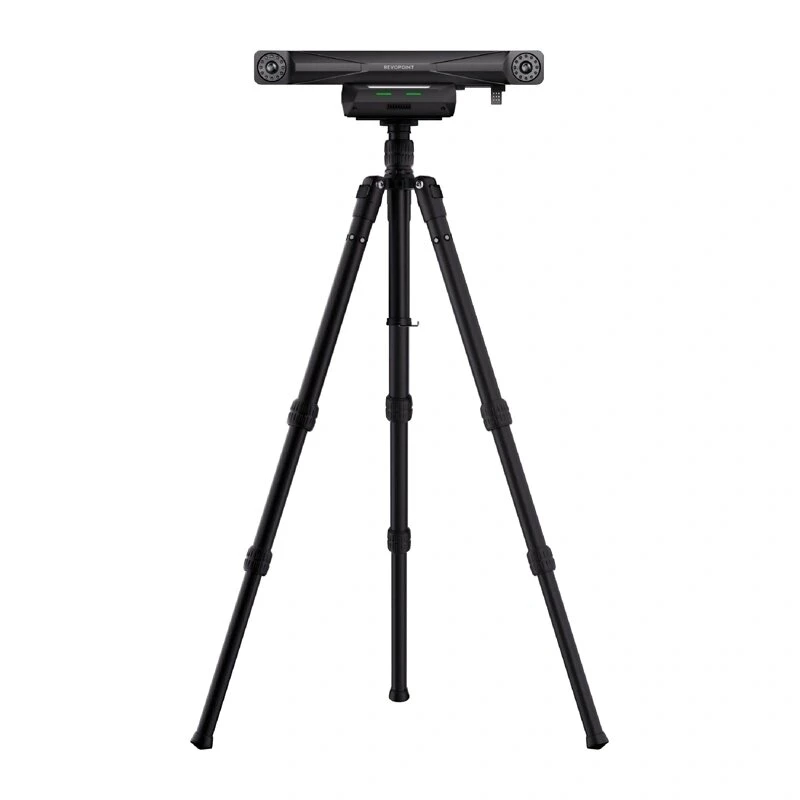

• Portable Design: Standard 1/4"-20 tripod thread allows mounting on standard tripods or fixtures, making it easy to position the tracker for optimal coverage.

Specifications

• Tracking Principle: Infrared Optical Tracking
• Single-Frame Accuracy: Up to 0.02 mm
• Volumetric Accuracy: Up to 0.05 mm/m
• Tracking Frame Rate: 10 FPS
• Working Volume: 0.3m x 0.3m x 0.3m to 1.5m x 1.5m x 1.5m
• Compatible Scanners: Revopoint MINI, RANGE, POP 3, INSPIRE
• Connectivity: USB Type-C
• Power Input: 12V DC, 3A
• Operating System Support: Windows 10/11 (64-bit), Android, iOS, macOS
• Software Compatibility: Revoscan
• Application: Industrial Metrology, Quality Control, Reverse Engineering
• Calibration Method: Automatic Marker-based Calibration
• Light Source: Infrared LED
• Mounting: Standard 1/4"-20 Tripod Thread
• Operating Temperature: 0°C to 40°C

Tips

For best results, ensure the tracker and scanner are within the recommended working volume and that the environment is free from excessive infrared interference. Use the automatic marker-based calibration before each measurement session to maintain accuracy. The tracker can be mounted on a standard tripod for stable positioning, and the USB Type-C connection allows for quick integration with your existing Revopoint scanner setup.
