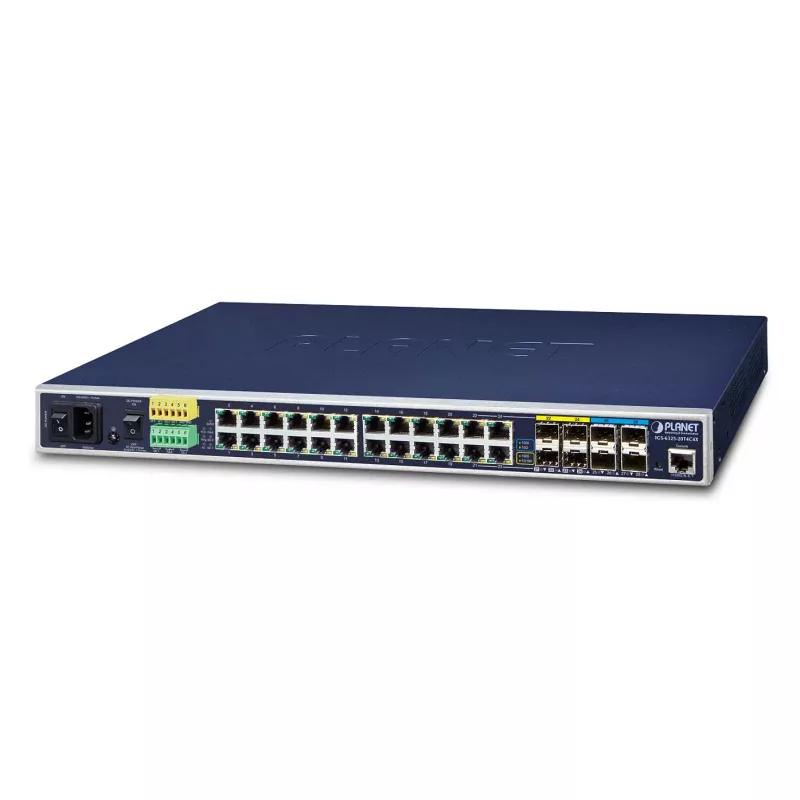

PLANET IGS-6325-20T4C4X Industrial L3 Managed Ethernet Switch, 20x Gigabit RJ45, 4x SFP, 4x 10G SFP+, -40-75°C

The PLANET IGS-6325-20T4C4X is a high-performance Industrial L3 Managed Ethernet Switch designed for demanding industrial networks. With 20 Gigabit RJ45 ports, 4 Gigabit SFP slots, and 4 10G SFP+ uplinks, it delivers robust connectivity and advanced Layer 3 routing capabilities. Built to withstand extreme temperatures from -40 to 75°C, it ensures reliable operation in harsh environments.

Advantages

This switch offers exceptional reliability and flexibility for industrial applications. Its dual power inputs (9-60V DC) provide redundancy, while IP30-rated metal housing protects against dust and mechanical stress. Advanced management features include CLI, Web, SNMP, and full Layer 3 routing protocols (RIP, OSPF, VRRP), enabling efficient network segmentation and traffic control.

Suitable for

• Industrial automation and manufacturing networks
• Transportation systems (rail, road, marine)
• Oil and gas, mining, and utility substations
• Outdoor surveillance and smart city infrastructure

Key specifications

• 20 x 10/100/1000BASE-T RJ45 ports
• 4 x 100/1000BASE-X SFP slots
• 4 x 10GBASE-X SFP+ slots
• Switching capacity: 128 Gbps
• Throughput: 95.23 Mpps
• MAC address table: 16K entries
• Jumbo frame support: 9K bytes
• Layer 3 routing: Static, RIP v1/v2, OSPF v2/v3, VRRP
• Management: Web, CLI (Telnet/SSH), SNMP v1/v2c/v3
• Operating temperature: -40 to 75°C
• IP rating: IP30
• Mounting: DIN-rail, wall-mount
• Power input: Dual 9-60V DC
• Max power consumption: 30.5 W
• ESD and surge protection: 6KV DC

Recommendations

For mission-critical industrial networks, the PLANET IGS-6325-20T4C4X provides the performance, redundancy, and environmental resilience required. Its combination of Gigabit and 10G uplinks ensures future-proof scalability.
