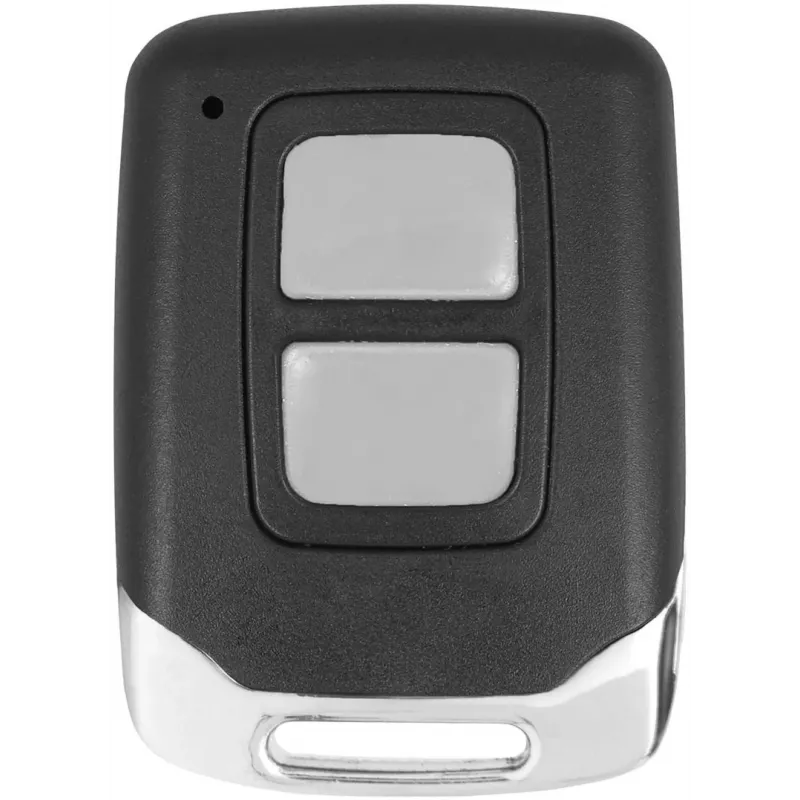

Pilot Proxima MINI FX (FAAC FIX) - 433.92 MHz Remote Control

The Pilot Proxima MINI FX is a compact and reliable remote control designed for FAAC FIX fixed code systems. Operating at 433.92 MHz, this 2-channel transmitter offers secure and convenient access control for gates, garage doors, and barriers. Its self-learning programming allows easy copying from an existing remote or receiver, making it an ideal replacement or addition to your automation system.

Advantages

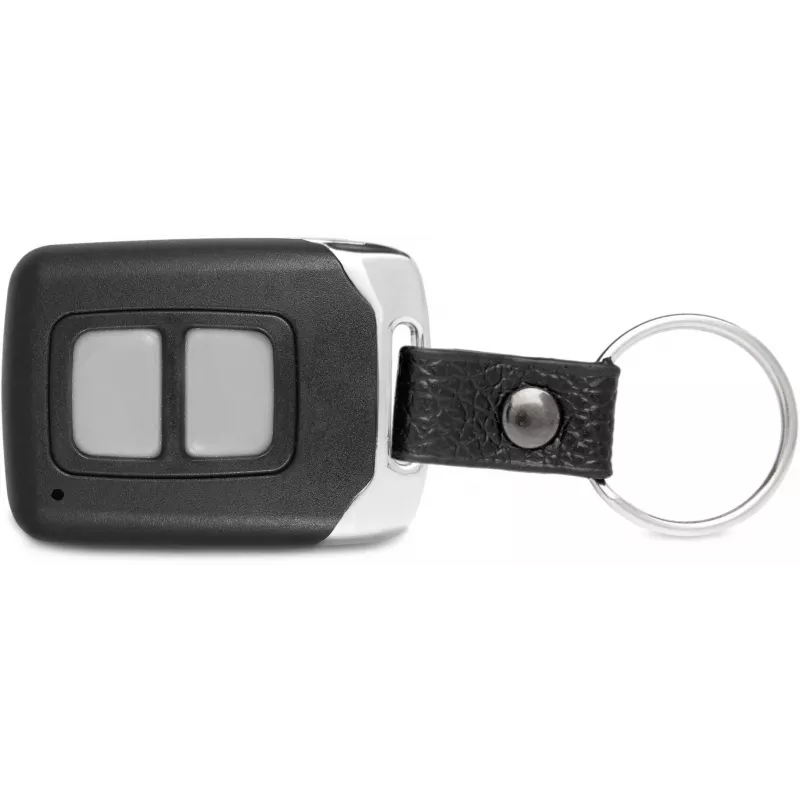

This remote control features a robust ABS plastic housing with an integrated key ring loop for portability. The tactile push-buttons provide clear feedback, and the red LED indicator confirms transmission. Powered by a single CR2032 battery (included), it delivers a range of up to 100 meters in open field conditions. Its compact design ensures easy handling and storage.

Suitable for

• Gate automation systems
• Garage door openers
• Barriers and access control
• FAAC FIX fixed code receivers

Key specifications

• Operating Frequency: 433.92 MHz
• Compatibility: FAAC FIX Fixed Code Systems
• Number of Channels: 2
• Encoding Type: Fixed Code
• Power Supply: 1x CR2032 Lithium Battery (3V)
• Transmission Range: Up to 100 meters (open field)
• Housing Material: High-quality ABS Plastic
• Color: Black
• LED Indicator: Yes (Red)
• Programming Method: Self-learning / Copying
• Operating Temperature: -20°C to +55°C
• Security Level: Standard (Fixed Code)
• Key Ring Attachment: Integrated loop
• Certifications: CE Compliant
• Button Type: Tactile push-buttons
• Included Accessories: Battery, User Manual

Recommendations

For optimal performance, ensure the remote is programmed according to the receiver's instructions. Replace the battery when the LED dims or range decreases. This product is CE certified and intended for use with compatible FAAC FIX systems only.
