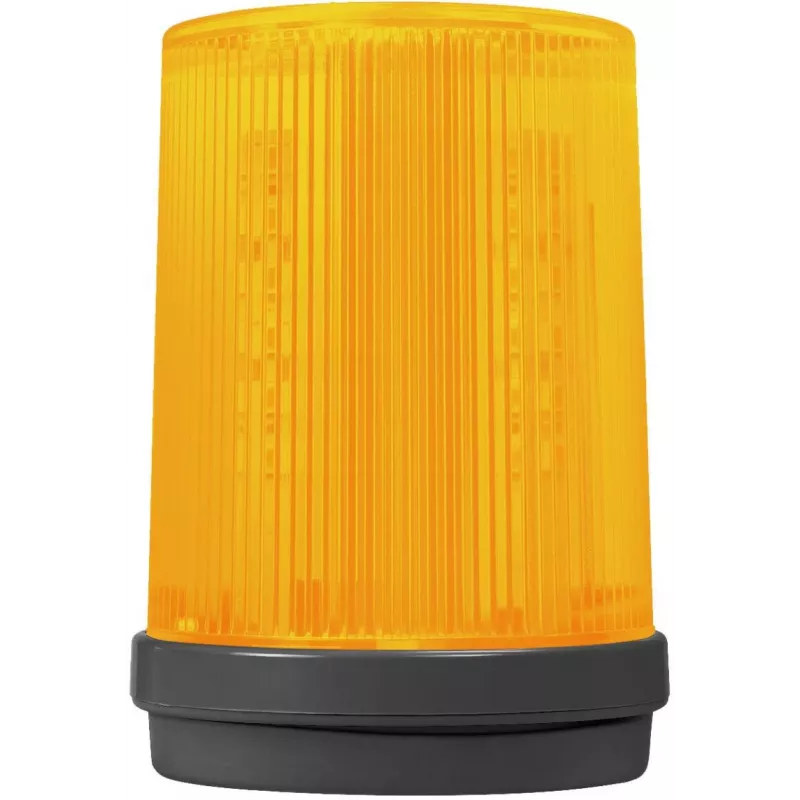

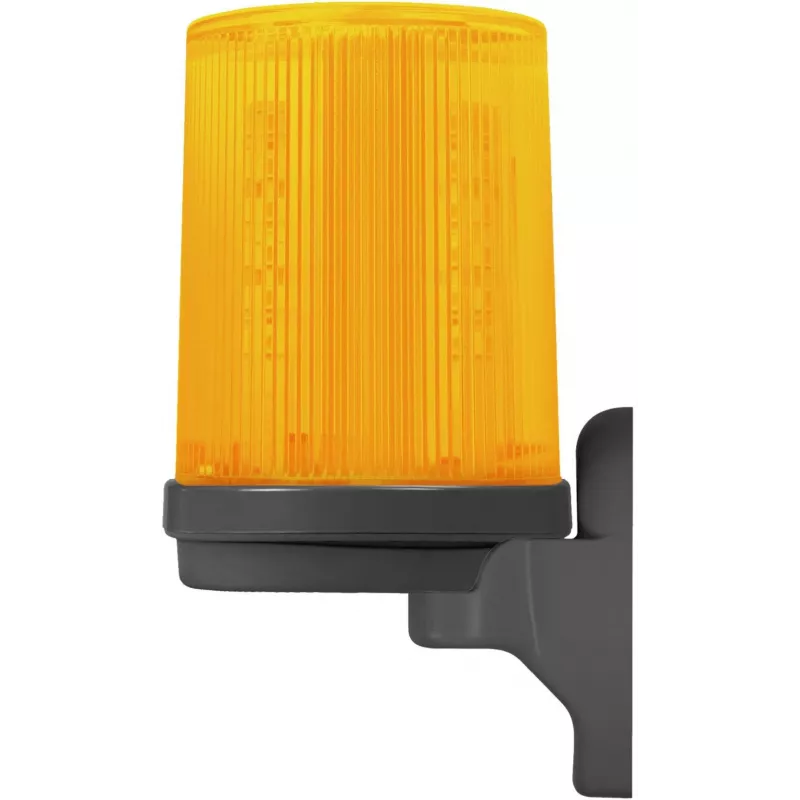

Proxima WALEC.O LED Warning Lamp with 868 MHz Antenna, Orange, 12-24V AC/DC or 230V AC

Need a reliable visual signal for your gate or barrier system? The Proxima WALEC.O LED warning lamp combines a bright orange flashing light with a built-in 868 MHz antenna, saving you the hassle of separate installation. It operates on both low-voltage (12-24V AC/DC) and standard 230V AC, giving you flexible power options for various setups.

Who is it for

This lamp is ideal for residential and commercial gate automation systems, particularly those using Proxima control boards with 868 MHz radio communication. It serves as a clear visual indicator while also extending the radio range, making it a practical choice for installers and end-users alike.

Main features

• LED technology ensures long life and efficient energy consumption
• Orange flashing light for high visibility
• Integrated 868 MHz antenna enhances wireless connectivity
• Dual power supply: 12-24V AC/DC or 230V AC
• IP54-rated housing protects against dust and water splashes
• UV-resistant polycarbonate construction for outdoor durability
• Surface-mount design simplifies installation

Specifications

• Product Type: Warning Lamp / Signal Light
• Light Source: LED
• Light Color: Orange
• Operating Mode: Flashing
• Antenna Frequency: 868 MHz
• Antenna Type: Built-in
• Voltage Range: 12-24V AC/DC or 230V AC
• Current Consumption: ~100 mA (12V DC), ~20 mA (230V AC)
• Ingress Protection: IP54
• Housing Material: UV-resistant Polycarbonate
• Mounting Type: Surface Mount
• Operating Temperature: -20°C to +55°C
• Compatibility: Proxima Automation Systems (868 MHz)
• Certifications: CE

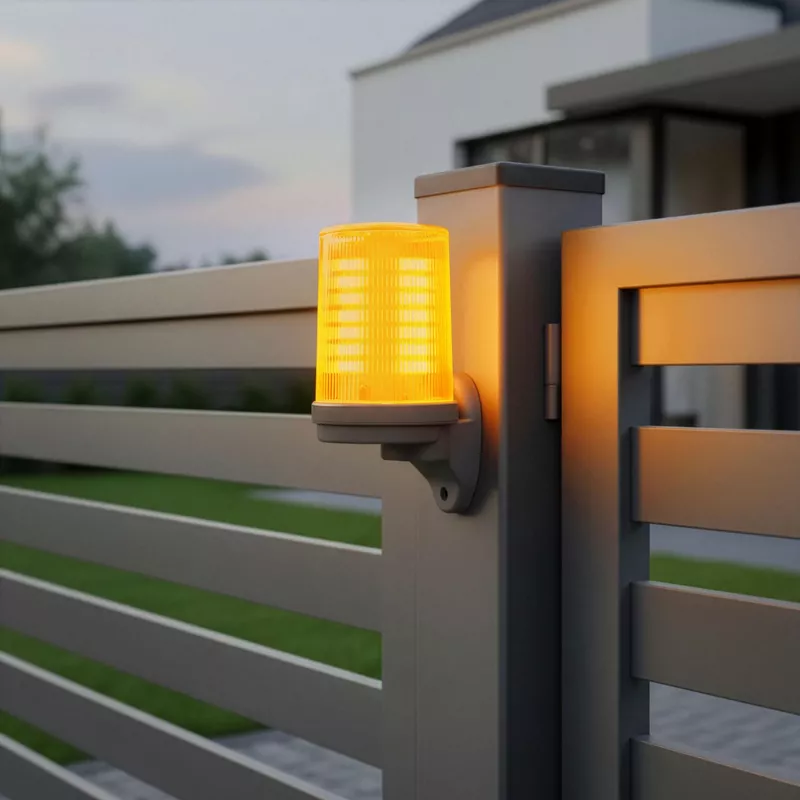

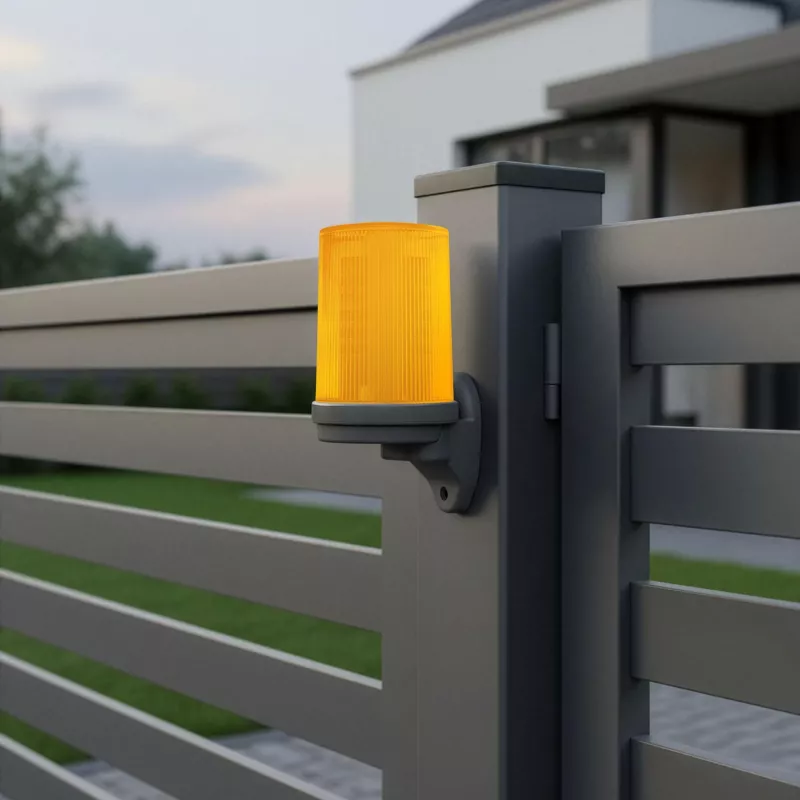

Tips

Ensure the lamp is mounted in a location where it is visible and can receive/transmit 868 MHz signals effectively. When connecting to 230V AC, follow local electrical codes and use proper insulation. For low-voltage operation, verify the polarity and voltage rating of your control board.
