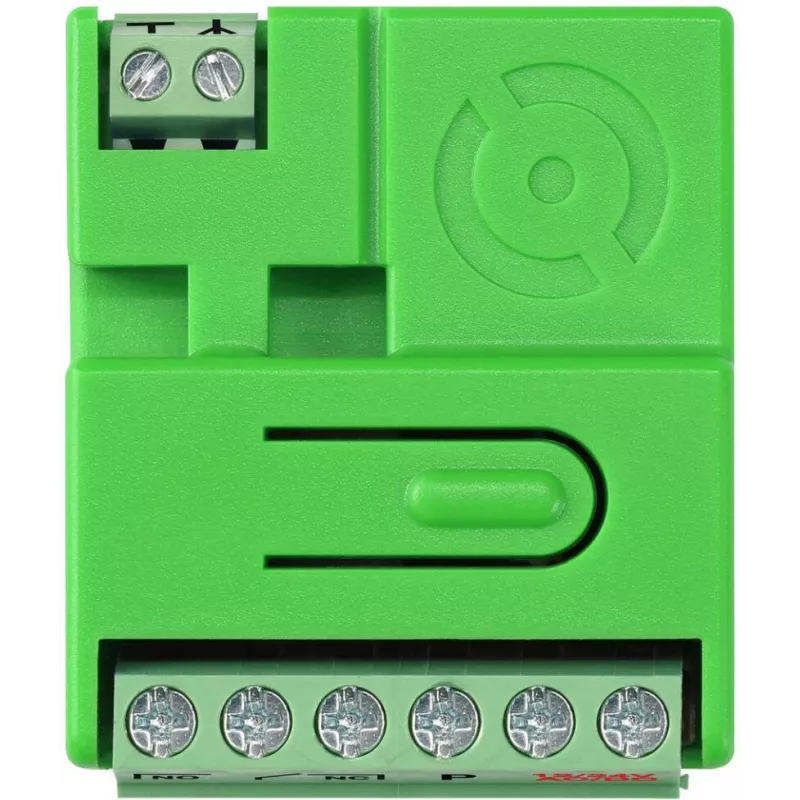

Proxima NM HCS Universal Controller/Radio Receiver 433.92 MHz 2-Channel

The Proxima NM HCS is a universal controller and radio receiver designed for gate automation, garage door openers, and access control systems. Operating at 433.92 MHz with HCS rolling code technology, it ensures secure and reliable wireless control. This 2-channel receiver features relay outputs (NO/NC) and supports up to 100 remote controls, making it ideal for residential and commercial applications.

Advantages

Enhanced security with rolling code technology prevents code grabbing. Easy button-based programming allows quick pairing of transmitters. Compact ABS plastic enclosure is durable and suitable for wall mounting. Internal antenna with external connection option provides flexible installation.

Suitable for

• Gate and garage door automation
• Access control systems
• Industrial door operators
• Remote switching applications

Key specifications

• Operating Frequency: 433.92 MHz
• Coding System: HCS (Rolling Code)
• Number of Channels: 2
• Power Supply: 12-24V AC/DC

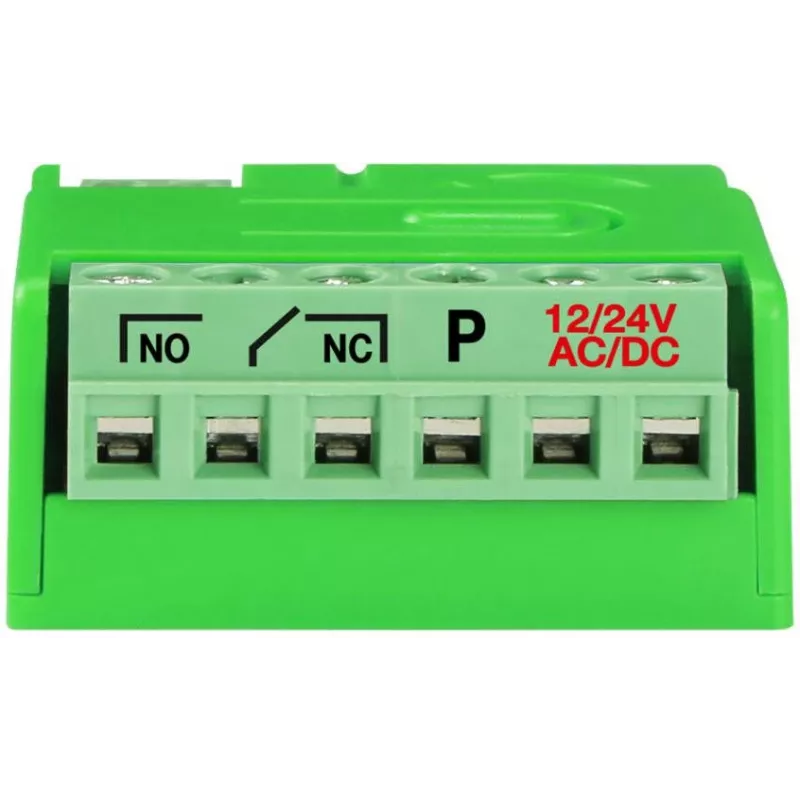

• Output Type: Relay (NO/NC contacts)
• Max Relay Load: 1A / 30V DC
• Memory Capacity: Up to 100 remote controls
• Antenna: Internal with external connection option
• Operating Temperature: -20°C to +55°C
• Enclosure Material: ABS Plastic
• Mounting: Wall mount
• LED Indicators: Power, channel status
• Programming: Button-based

Recommendations

For optimal performance, use with Proxima HCS series remote controls or other HCS compatible transmitters. Ensure power supply is within 12-24V AC/DC. The receiver is not waterproof; install in a dry location.
