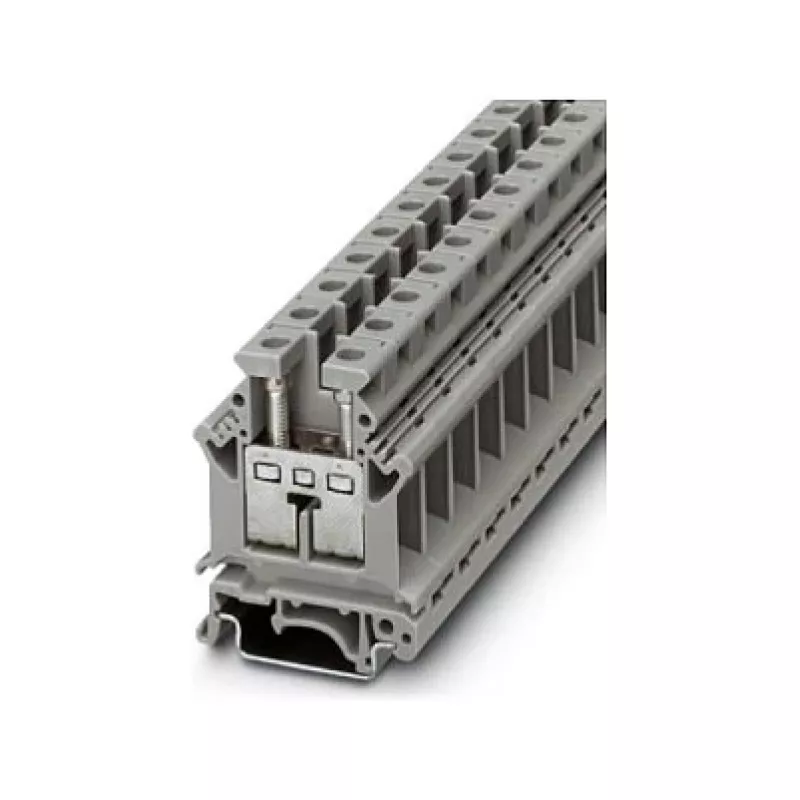

Phoenix 3006043 UK 16 N Feed-Through Terminal Block, Screw Connection, 16 mm², 1000 V, 76 A, Grey

Loose connections in industrial control panels and distribution boards are a leading cause of downtime and safety hazards. The Phoenix 3006043 UK 16 N feed-through terminal block eliminates this risk with a robust screw connection that grips conductors securely, ensuring a stable electrical link even under vibration. Its compact design mounts on standard DIN rails, making it ideal for high-density wiring in machinery, power supplies, and building automation.

Who is it for

This terminal block is built for electrical engineers, panel builders, and maintenance technicians who need a dependable connection point for power and control circuits. It suits applications up to 1000 V and 76 A, covering most industrial and commercial installations. Whether you're wiring a motor control center or a lighting distribution board, this block provides a safe, long-lasting junction.

Main features

• Screw connection with M5 thread and 2.5–3 Nm tightening torque for secure clamping
• Wide conductor range: 0.5–25 mm² solid, 0.5–16 mm² flexible, 20–4 AWG
• High current capacity: 76 A nominal (IEC), suitable for power distribution
• Rated voltage 1000 V, surge voltage 8 kV, pollution degree 3
• Flame-retardant PA housing (UL 94 V0) for enhanced fire safety
• Mounts on NS 35/7.5 or NS 35/15 DIN rails for quick installation
• Operating temperature from -60 °C to 105 °C for harsh environments
• Complies with IEC, UL, CSA, VDE, EAC, and cULus Recognized standards

Specifications

• Product type: Feed-through terminal block
• Connection method: Screw connection
• Number of positions: 1
• Nominal cross section: 16 mm²
• Colour: Grey
• Insulating material: PA (Polyamide)
• Mounting type: DIN rail NS 35/7.5, NS 35/15
• Nominal voltage (IEC): 1000 V
• Nominal current (IEC): 76 A
• Rated surge voltage: 8 kV
• Pollution degree: 3
• Conductor cross section solid: 0.5–25 mm²
• Conductor cross section flexible: 0.5–16 mm²
• Conductor cross section AWG: 20–4
• Stripping length: 12 mm
• Screw thread: M5
• Tightening torque: 2.5–3 Nm
• Flammability rating (UL 94): V0
• Operating temperature: -60 °C to 105 °C
• Standards/Approvals: IEC, UL, CSA, VDE, EAC, cULus Recognized

Tips

For reliable connections, always strip conductors to the specified 12 mm length and tighten the screw to the recommended torque. This terminal block is suitable for use in control panels, distribution boards, and machinery where space is limited but performance cannot be compromised.
