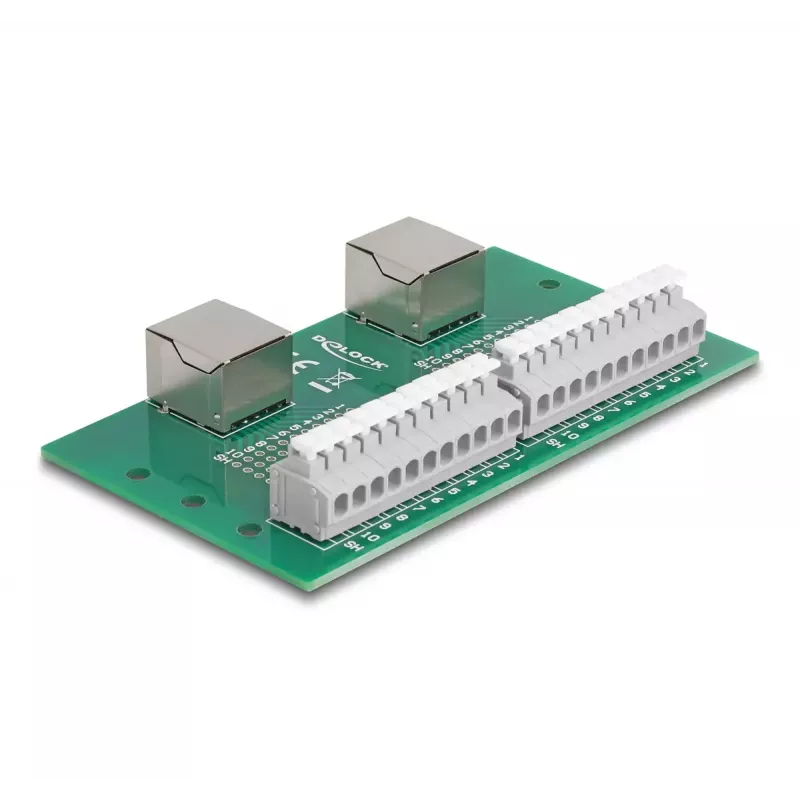

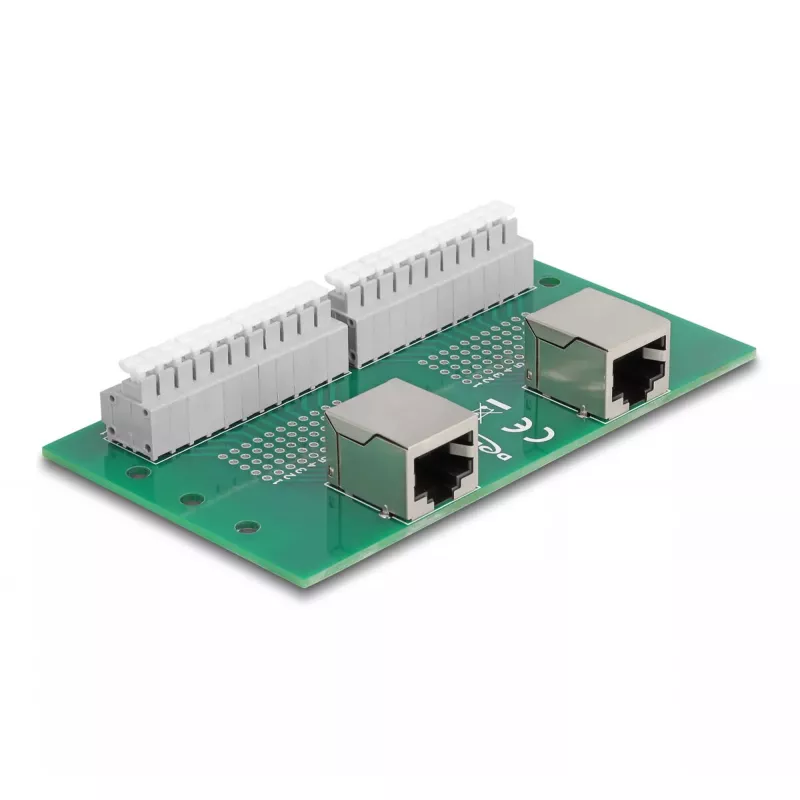

DeLOCK RJ50 2 x female to 2 x Terminal Block with push-button for DIN rail

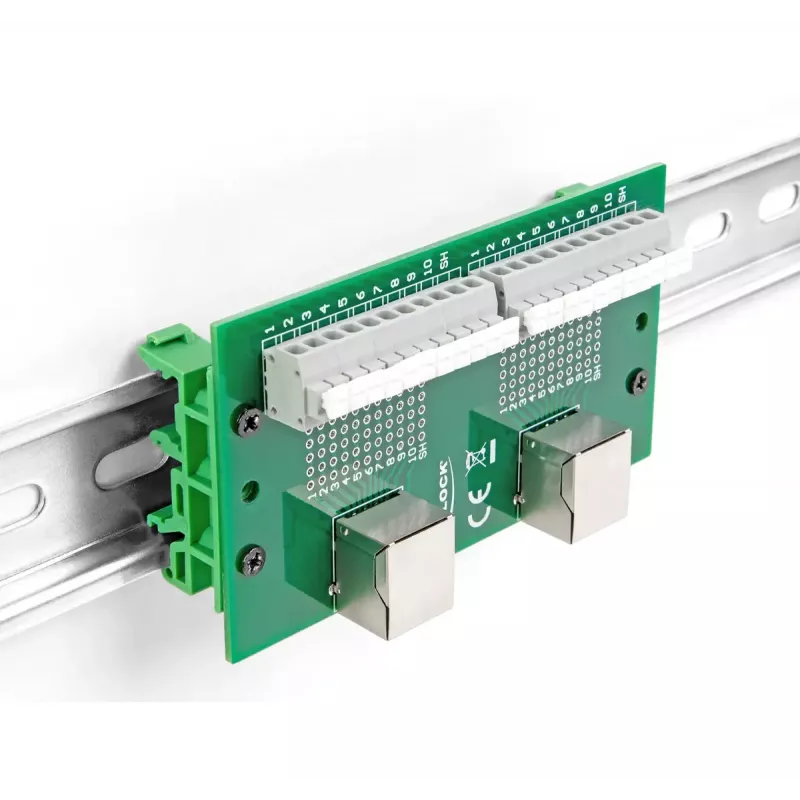

This adapter by DeLOCK provides two RJ50 female connectors and a two-position terminal block with a push-button, enabling tool-free connection of strands with stripped ends. It is intended for mounting on a 15 mm or 35 mm DIN rail using the included clips and is suitable for connecting various control and measuring devices. The unit measures 60 mm (width) × 91 mm (depth) × 18 mm (height) and is available in green and grey.

Advantages

The DeLOCK RJ50 to terminal block adapter allows fast, tool-free wiring of conductors and keeps RJ50 interfaces accessible on a DIN rail. Its push-button terminal block simplifies insertion and removal of stranded or solid wires. Compact dimensions and included mounting clips enable easy installation in control cabinets and measurement panels.

Suitable for

• Connecting control and measuring devices to RJ50 interfaces
• Wiring in control cabinets and distribution panels
• Prototyping and test setups requiring removable RJ50 connections
• Situations where tool-free terminal access is preferred

Key specifications

• Connectors: 2 × RJ50 female, 2-position terminal block with push-button

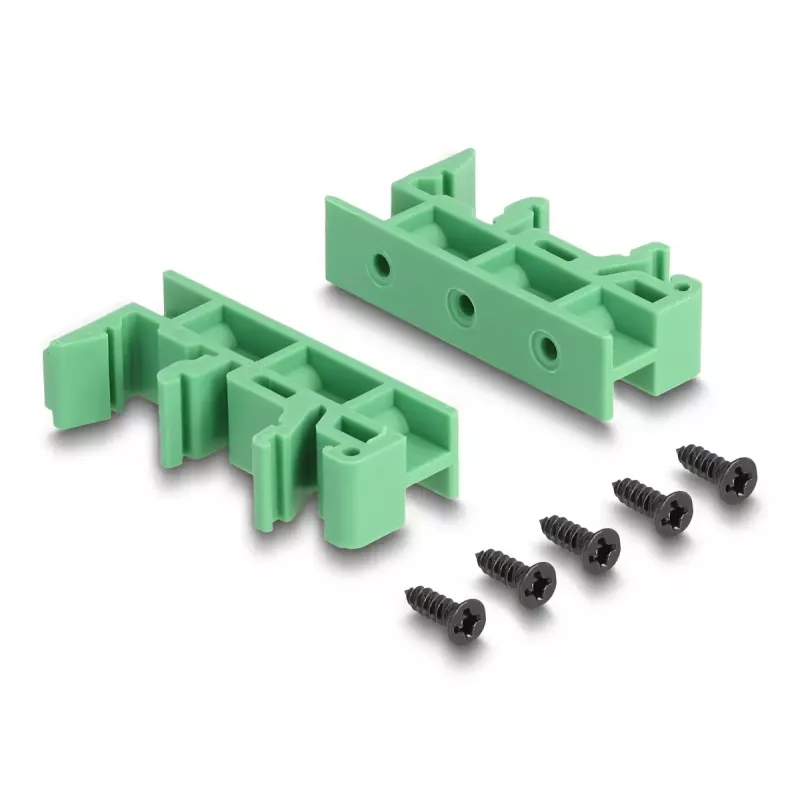

• Mounting: DIN rail (15 mm / 35 mm) with included clips
• Dimensions: 60 × 91 × 18 mm (W × D × H)
• Colour: Green, Grey
• Brand / MPN / EAN: DELOCK / 67014 / 4043619670147

How to use

Attach the supplied clips to the adapter and snap it onto a 15 mm or 35 mm DIN rail. Insert stripped wire ends into the terminal block openings and press the push-button to release or secure the conductors. Plug RJ50 cables into the female RJ50 ports to connect external devices. Ensure proper polarity and secure mounting before powering connected equipment.

Recommendations

Use conductors with appropriate cross-section for the terminal block and follow local electrical regulations. Avoid exposing the adapter to liquids or excessive vibration. Inspect connections periodically to ensure reliable contact.
