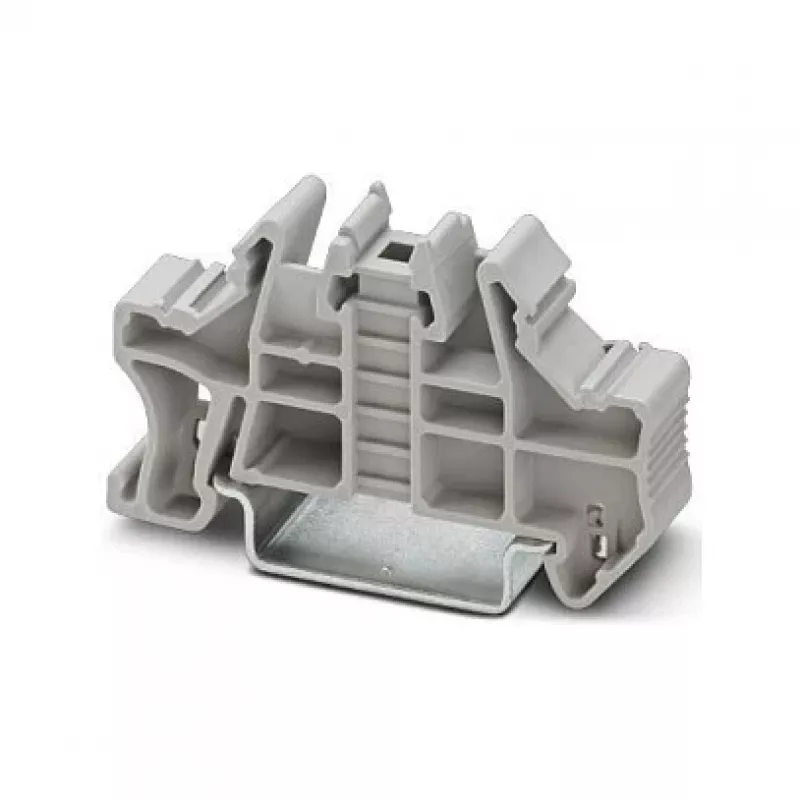

Phoenix 3022218 Endhalter CLIPFIX 35 - End Bracket for NS 35 DIN Rail, PA, Gray

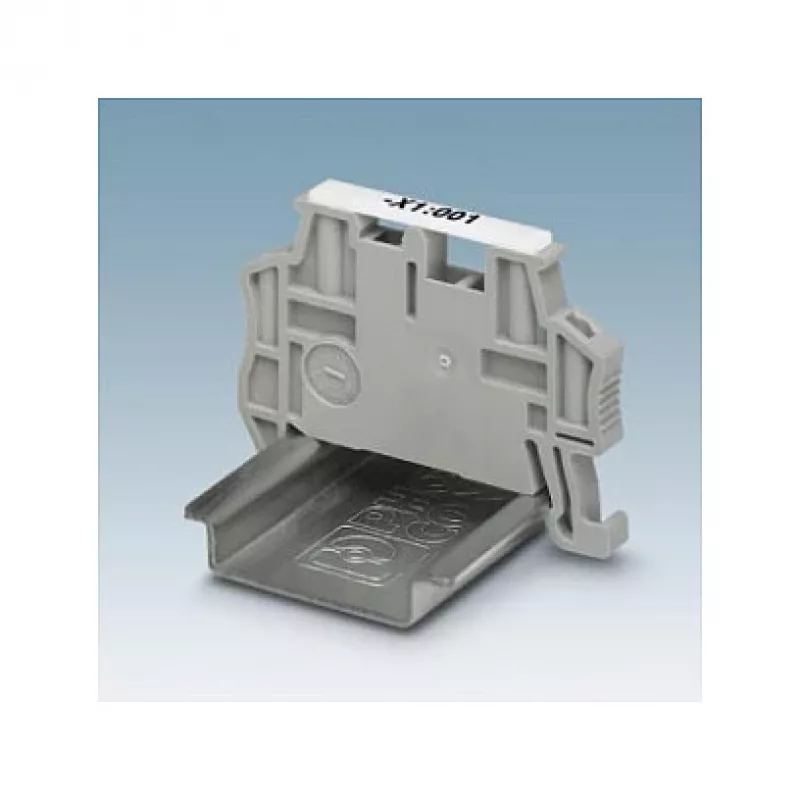

The Phoenix 3022218 Endhalter CLIPFIX 35 is a compact end bracket engineered to secure terminal blocks and other components on standard NS 35 DIN rails. Unlike generic metal brackets that require screws and tools, this CLIPFIX model snaps onto the rail in seconds, providing a firm mechanical stop without damaging the rail or adjacent modules. Its gray polyamide body combines high dielectric strength with resistance to UV and chemicals, making it a reliable choice for industrial control panels and building automation.

Highlights

• Tool-free snap-on mounting on NS 35/7.5 and NS 35/15 DIN rails
• Made of flame-retardant polyamide (PA) with UL 94 V-2 rating
• Wide operating temperature range from -60 °C to 105 °C
• Compact dimensions: 9.5 mm width, 42 mm length, 35 mm height
• Approvals: UL, cUL, EAC, RoHS, REACH

In daily use

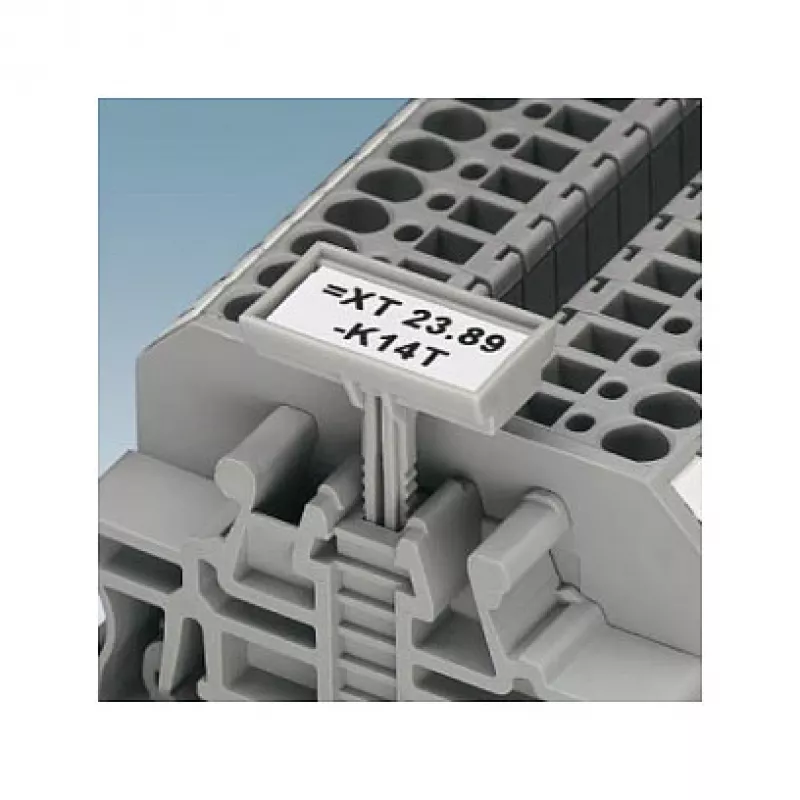

In practice, the CLIPFIX 35 acts as a stable end stop that prevents terminal blocks from sliding along the rail, especially in applications with vibration or thermal cycling. Its snap-on design allows quick repositioning without disassembling the entire rail assembly. The bracket's insulating PA material eliminates the risk of short circuits when placed at the ends of a terminal strip, and its gray color blends seamlessly with most Phoenix Contact terminal blocks.

Full specifications

• Product type: End bracket
• Series: CLIPFIX
• Mounting type: DIN rail
• DIN rail compatibility: NS 35/7.5, NS 35/15
• Material: PA (polyamide)
• Color: Gray
• Operating temperature range: -60 °C to 105 °C
• Flammability rating: UL 94 V-2
• Assembly method: Snap-on (tool-free)
• Function: Secures terminal blocks and components
• Insulation characteristics: High dielectric strength
• Environmental resistance: UV resistant, chemical resistant
• Approvals: UL, cUL, EAC, RoHS, REACH
• Height from DIN rail: 35 mm
• Width: 9.5 mm
• Length: 42 mm

Final note

The Phoenix 3022218 CLIPFIX 35 is a proven solution for panel builders who value speed and reliability. Its simple yet robust design ensures long-term performance in demanding environments, making it a smart addition to any DIN rail installation.
