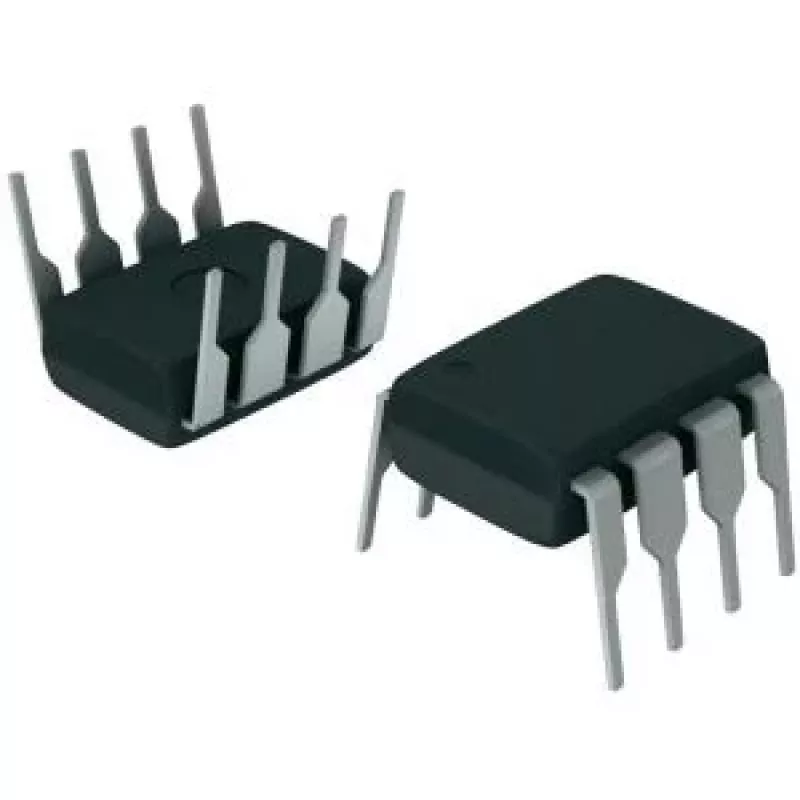

Operational Amplifier IC Texas Instruments OPA2132PA Dual Precision, PDIP-8 package

The OPA2132PA is a dual precision operational amplifier in a PDIP-8 package designed for low-noise, low-distortion signal amplification. This JFET-input op amp provides high input impedance, low offset voltage and wide dynamic range, making it suitable for high-fidelity audio stages and precision signal conditioning in stereo preamplifiers, active filters, DAC buffers and instrumentation front ends.

Advantages

The device offers low input noise and low total harmonic distortion for accurate reproduction of audio signals. Its JFET inputs deliver high input impedance and low bias currents, while internal matching between channels provides consistent stereo performance. The PDIP-8 packaging simplifies prototyping and through-hole mounting on standard PCBs.

Suitable for

• Stereo preamplifiers and tone control circuits
• Active analog filters and equalizers
• DAC output buffering and headphone drivers
• Instrumentation front ends and precision amplifier stages

Key specifications

• Dual operational amplifier in one package
• JFET-input architecture for high input impedance
• Low input noise and low distortion suitable for audio
• Low input offset voltage and good DC performance
• Wide supply voltage range compatible with common analog systems
• Through-hole PDIP-8 package for easy prototyping and soldering

How to use

Install the PDIP-8 device into a compatible socket or solder it to a PCB following correct pin orientation. Use proper decoupling capacitors close to the supply pins to maintain stability and minimize supply noise. Configure the amplifier in the desired topology (inverting, non-inverting, or differential) and set gain and frequency response with external resistors and capacitors according to the requirements of the circuit. Observe recommended operating supply voltage limits and thermal conditions to ensure reliable performance.

Recommendations

For best audio performance, use low-noise resistors and proper layout techniques: keep input traces short, separate analog and digital ground planes where possible, and place decoupling capacitors close to the power pins. When using for precision measurement, allow for input offset trimming if needed and ensure stable environmental temperature to maintain low drift.
