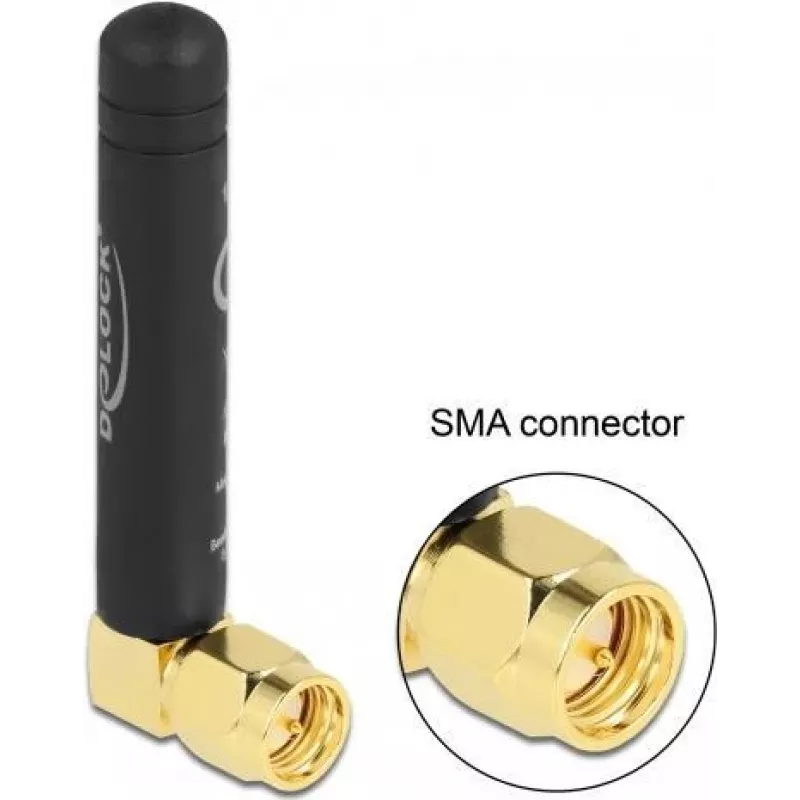

Omni-directional antenna DeLOCK 12716

The DeLOCK 12716 omni-directional antenna enables use of the 868 MHz band (0.86–0.87 GHz) both indoors and outdoors. It has a compact form factor (8 mm × 8 mm × 48.6 mm), vertical polarization and 50 Ω impedance, and is designed for simple integration into wireless setups requiring low-gain, omnidirectional coverage.

Advantages

The antenna provides an omnidirectional radiation pattern with a nominal gain of 1.6 dBi and supports the 868 MHz frequency range. Its small size and black finish facilitate discreet installation, while the 50 Ω impedance and vertical polarization ensure compatibility with common radio equipment operating in this band.

Suitable for

• LPWAN and short-range wireless links in the 868 MHz band
• Indoor gateways, routers and concentrators requiring omnidirectional coverage
• Outdoor installations where a compact, low-profile antenna is needed
• IoT devices and sensor networks operating at 0.86–0.87 GHz

Key specifications

• Frequency band: 0.86–0.87 GHz
• Antenna gain (max): 1.6 dBi
• Polarization: vertical
• Impedance: 50 Ω
• Colour: black
• Dimensions (W × D × H): 8 mm × 8 mm × 48.6 mm

How to use

Mount the DeLOCK 12716 according to your device’s antenna connector and placement requirements. Ensure the antenna is connected to a 50 Ω port and oriented with vertical polarization for optimal performance. Use appropriate mounting hardware or enclosure cutouts for indoor or outdoor installation, and avoid placing the antenna near large metal objects that could affect radiation pattern and signal strength.

Recommendations

For reliable operation, verify compatibility with your radio equipment and regulatory requirements for the 868 MHz band in your region. Test placement and orientation to achieve the desired coverage and minimize obstructions between transmitting and receiving devices.
