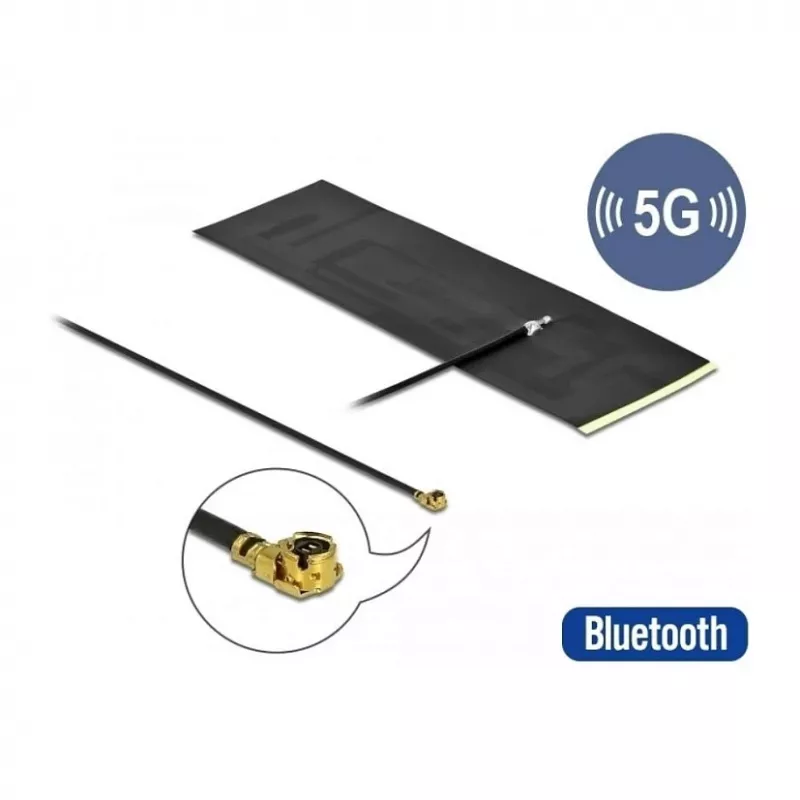

Omni-directional antenna DeLOCK 12626

The DeLOCK 12626 omni-directional antenna improves reception for cellular and short-range wireless technologies. With a gain of 5 dBi and 50 Ω impedance, it is suitable for integrating into routers, gateways or IoT devices that require external antenna support. The antenna is compatible with GSM, UMTS, 5G LTE, ZigBee, Z-Wave, NB-IoT, WLAN 2.4 GHz, Bluetooth, ISM, DECT and LoRa and uses an MHF male connector. Its physical dimensions are 150 mm (width) × 1.6 mm (depth) × 950 mm (height).

Advantages

The omni-directional design provides broad coverage in all horizontal directions while the 5 dBi gain offers moderate signal improvement without significant directional alignment. Compatibility with multiple radio standards makes the antenna versatile for cellular, IoT and short-range wireless applications. The MHF male connector and 50 Ω impedance ensure compatibility with common RF equipment.

Suitable for

• Improving outdoor or indoor cellular (GSM/UMTS/5G LTE) reception
• Extending range of WLAN 2.4 GHz and Bluetooth devices
• Connecting to IoT gateways and NB‑IoT modules
• Use with ZigBee, Z‑Wave and LoRa wireless sensors

Key specifications

• Model: DeLOCK 12626
• Antenna type: Omni‑directional
• Gain: 5 dBi
• Impedance: 50 Ω
• Connector: MHF male
• Supported standards: GSM, UMTS, 5G LTE, ZigBee, Z‑Wave, NB‑IoT, WLAN 2.4 GHz, Bluetooth, ISM, DECT, LoRa
• Dimensions (W × D × H): 150 × 1.6 × 950 mm
• Brand: DELOCK
• MPN: 12626
• EAN: 4043619126262

How to use

Connect the DeLOCK 12626 antenna to the device’s compatible MHF female port, ensuring the connector is properly seated. Position the antenna vertically in a location with minimal obstructions for best omni‑directional coverage. Secure the antenna physically according to your equipment’s mounting options and verify signal improvements via the device’s diagnostics or RSSI measurements.

Recommendations

Place the antenna away from large metal objects and other RF transmitters to reduce interference. For cellular and 5G LTE use, try several mounting locations and heights to find the best reception; small orientation changes can affect performance. Ensure the connected device supports the listed frequency bands for full compatibility.
