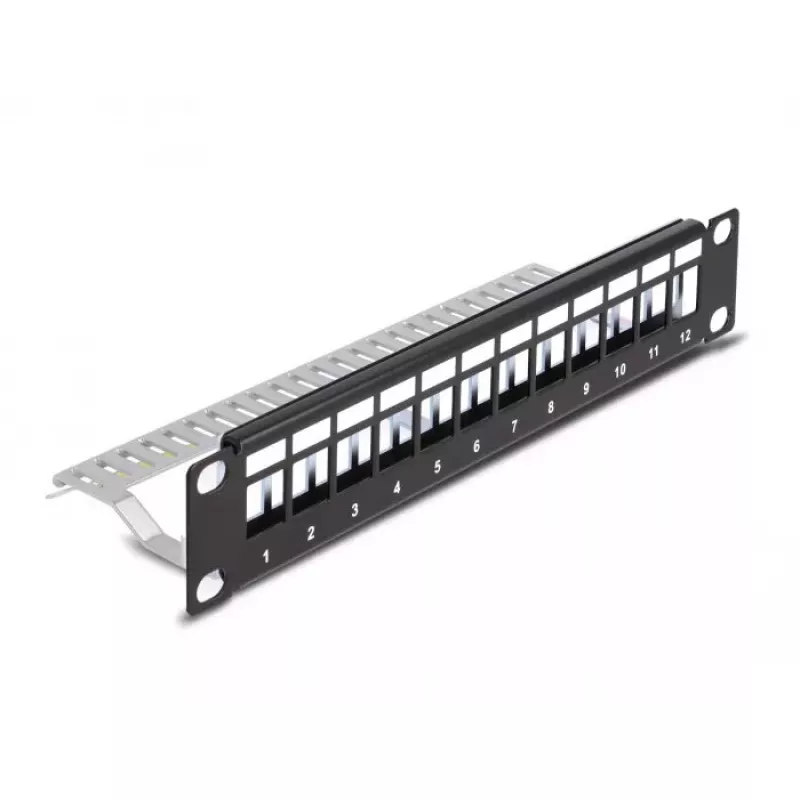

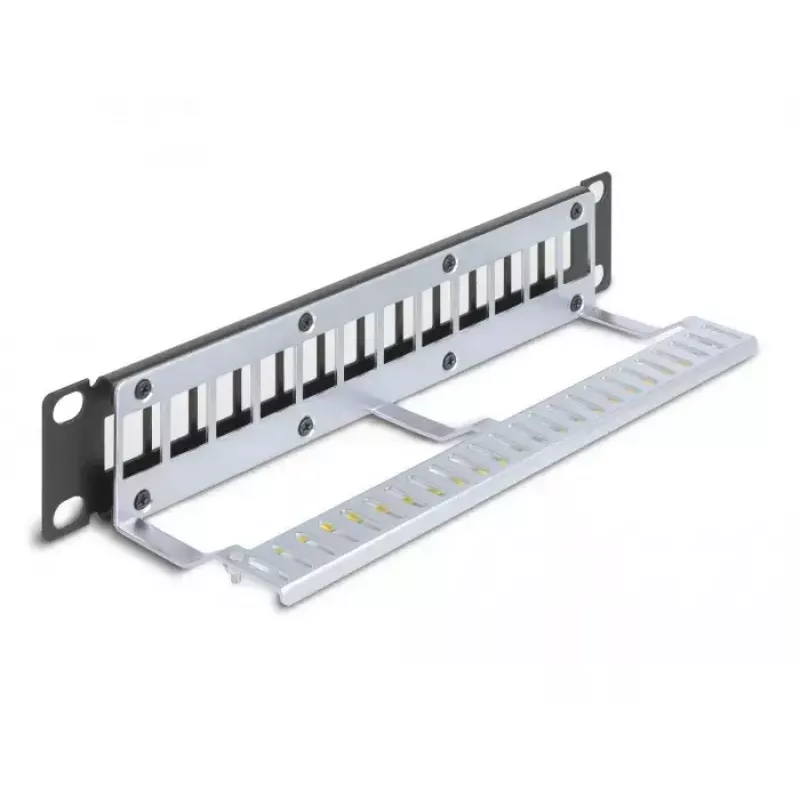

Patch panel DeLOCK 66874 1U Black Metal Rack capacity 1U

The DeLOCK 66874 1U patch panel is a rack-mounted cable management component constructed from black metal. With compact external dimensions of 254 mm width, 72 mm height and 44 mm depth, this 1U unit provides a space-efficient way to group and route up to 12 ports in a standard server rack. The panel’s metal construction and black finish are intended to match typical rack environments and contribute to a tidy, professional installation.

Advantages

The metal housing offers mechanical durability and stable mounting in a 19-inch rack. Its 1U height conserves rack space while allowing a concentrated layout for up to 12 connections. The compact depth is suitable for shallow rack sections or cabinets with limited rear clearance, and the neutral black colour integrates with most network and server equipment.

Suitable for

• Small to medium network racks where up to 12 connections are required
• Server rooms and communication closets with limited depth
• Patch and voice/data cabling consolidation in office or lab environments

Key specifications

• Rack mount form factor: 1U
• Material: metal housing
• Colour: black
• External dimensions: 254 mm (W) × 72 mm (H) × 44 mm (D)
• Number of ports: 12

How to use

Install the patch panel into a standard 19-inch rack using the front mounting holes and compatible rack screws. Route network or patch cables to the panel’s ports and terminate or connect them according to your cabling scheme. Secure cables with appropriate ties or management accessories to avoid strain on the connectors and to maintain an orderly rack layout.

Recommendations

For best results, plan port mapping before installation, use compatible cable lengths to reduce excess slack, and leave adequate space for airflow and future expansion. Regularly inspect cable strain relief and mounting screws to maintain reliable connections.
