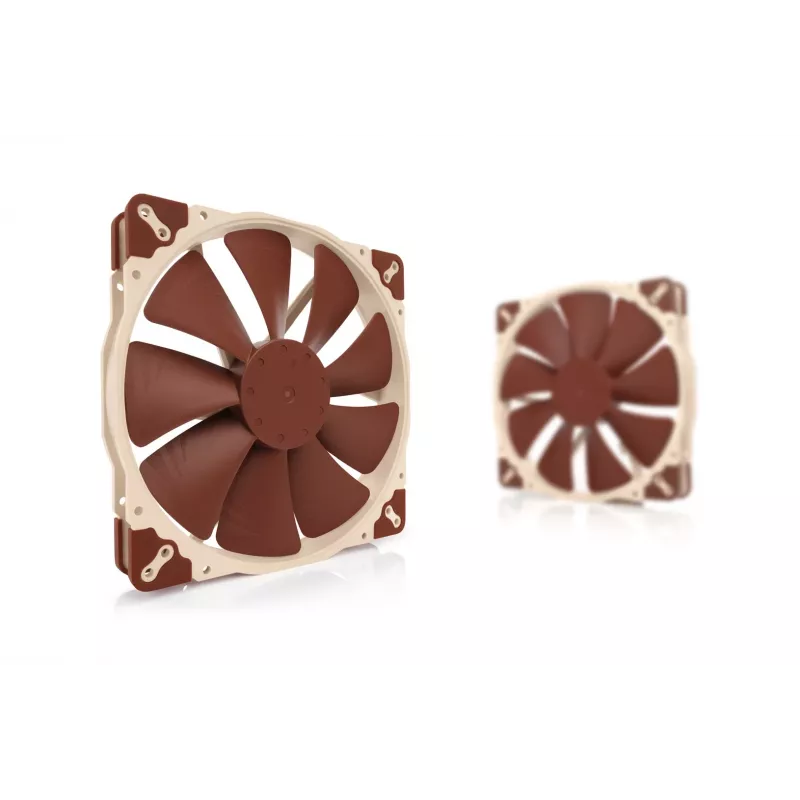

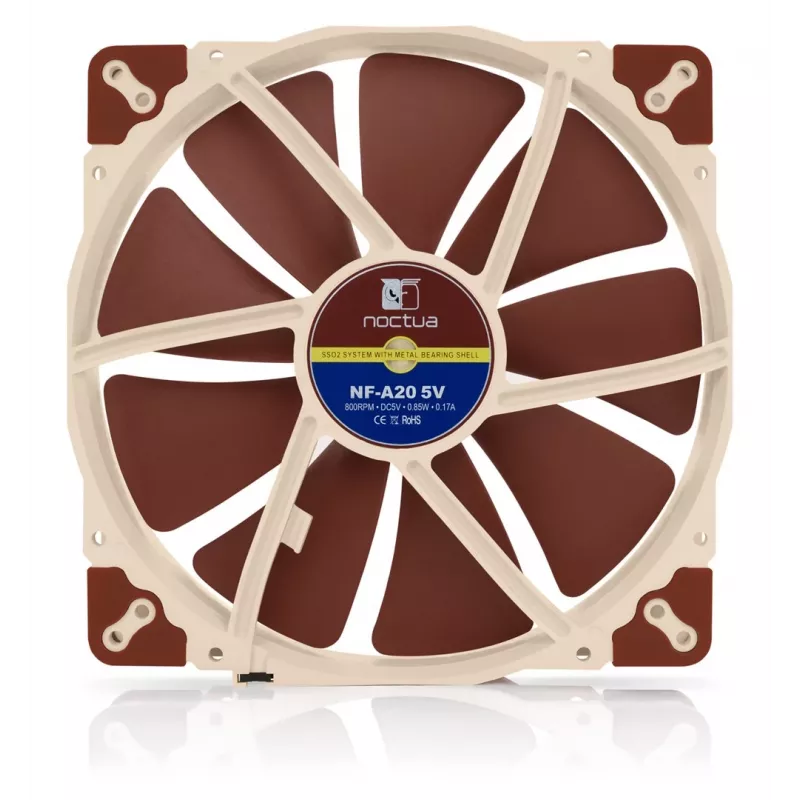

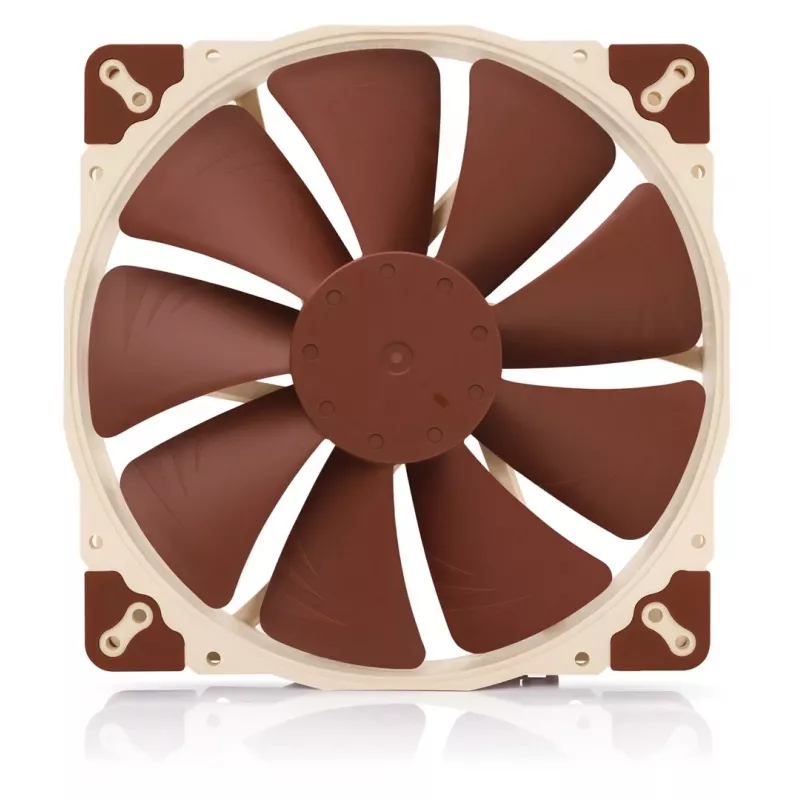

Computer case fan Noctua NF-A20 200 mm, 5 V, 3-pin, 800 RPM, 146.9 m³/h, 18.1 dB, SSO bearing

The Noctua NF-A20 5V is a dedicated 5V version of the premium 200 mm NF-A20 fan, designed for efficient airflow and very low noise. It features Noctua’s AAO (Advanced Acoustic Optimisation) frame, Flow Acceleration Channels, Smooth Commutation Drive technology and the SSO2 bearing for stable, long-lasting operation. The product includes a USB power adaptor cable, an OmniJoin™ adaptor set, a fully sleeved extension cable and a 6-year manufacturer’s warranty. Note: this 5V model must not be used with 12V sources such as PC motherboard fan headers, as this will damage the fan.

Advantages

The NF-A20 5V combines aerodynamic design measures — including Flow Acceleration Channels, Stepped Inlet Design and Inner Surface Microstructures — with integrated anti-vibration pads to maximise airflow efficiency while keeping noise levels low. Smooth Commutation Drive 2 reduces torque variations and switching noises for very smooth running, and the optimised SSO2 bearing improves stabilisation and durability. Supplied accessories such as the USB power adaptor and OmniJoin™ set increase installation flexibility for various 5V applications.

Suitable for

• Replacement of existing 5V fans in devices with proprietary connectors
• Custom cooling solutions powered from USB power banks or USB supplies
• Low-voltage ventilation in home appliances, audio/video cabinets or small enclosures

Key specifications

• Model: Noctua NF-A20 5V (MPN: NF-A20 5V, EAN: 9010018100068)
• Size: 200 mm diameter; dimensions: 200 × 30 × 200 mm
• Rated voltage: 5 V (do not use with 12 V)
• Maximum speed: 800 RPM
• Airflow: 146.9 m³/h
• Maximum static pressure: 1.08 mmH2O
• Bearing: SSO2 (self-stabilising oil-pressure bearing)
• Colour: Beige / Brown
• Accessories: USB power adaptor cable, OmniJoin™ adaptor set, 30 cm sleeved extension cable
• Warranty / Reliability: MTTF > 150,000 hours; 6-year manufacturer’s warranty

How to use

Connect the primary 20 cm sleeved cable to a compatible 5V power source using the included USB power adaptor cable for USB power supplies or power banks. If the target device uses a proprietary 5V header, cut the original fan cable and attach it to the OmniJoin™ adaptor using the supplied Scotchlok™ connectors, then plug the NF-A20 5V into the proprietary header. Ensure correct polarity — the fan includes an integrated diode for polarity protection, but proper alignment is recommended. Do not connect the fan to 12V sources such as PC motherboard fan headers.

Recommendations

Use the NF-A20 5V in applications that require quiet, reliable 5V cooling and fit the fan’s 200 mm size. Maintain unobstructed airflow around the fan, secure it with standard screws (anti-vibration pads are integrated) and avoid 12V connections to prevent damage.
