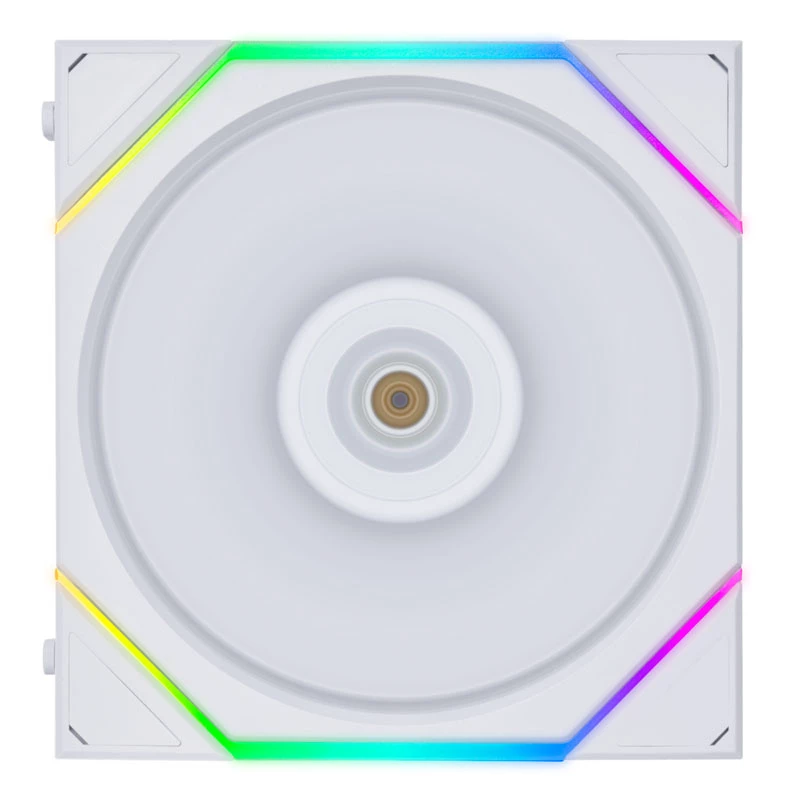

Fan Lian Li UNI FAN TL 12 cm White 200-2600 RPM Fluid Dynamic Bearing

The Lian Li UNI FAN TL 120 mm (12 cm) White is a PC cooling fan engineered for efficient airflow and low noise. It operates between 200 and 2600 RPM, uses a fluid dynamic bearing for extended lifespan and quiet performance, and produces up to 3.97 mmH2O air pressure. The fan is available in multiple orientations and pairs visually with TL series controllers and TL LCD models, making it suitable for coordinated multi-fan setups.

Advantages

UNI FAN TL combines a 9-blade impeller made from LCP material and tight blade-to-frame clearance to deliver effective cooling while keeping acoustic levels down. The motor and structure are optimized to reduce friction and vibration for quiet operation at high speeds. Each fan features 26 LEDs with side diffusers and an enlarged infinity mirror on both sides for layered RGB lighting effects. Fans can be grouped and controlled via L-Connect 3, allowing independent speed and lighting configuration.

Suitable for

• Case cooling in gaming and workstation PCs
• Radiator cooling in liquid-cooled systems
• Multi-fan, synchronized RGB setups using L-Connect 3

Key specifications

• Fan diameter: 120 mm
• Speed range: 200–2600 RPM
• Bearing type: Fluid Dynamic Bearing
• Maximum air pressure: 3.97 mmH2O
• Colour: White
• LEDs: 26 per fan with side diffuser and infinity mirror

How to use

Install the fan in the desired orientation (standard or reverse blade) inside your case or on a radiator using the provided mounting points and anti-vibration pads to cover screws. Connect the fan to the UNI FAN TL controller or compatible TL controller chain; then connect the controller to your motherboard or power source according to the controller manual. Use L-Connect 3 software to configure fan speed curves and lighting effects, or set groups of fans to run at different speeds depending on thermal needs.

Recommendations

For optimal cooling and noise balance, use these 120 mm UNI FAN TL units on radiators with moderate fin density or as case intake/exhaust. When installing multiple fans, place them in a push-pull configuration on radiators when possible and limit maximum RPM via L-Connect 3 to reduce acoustic output while maintaining required airflow.
