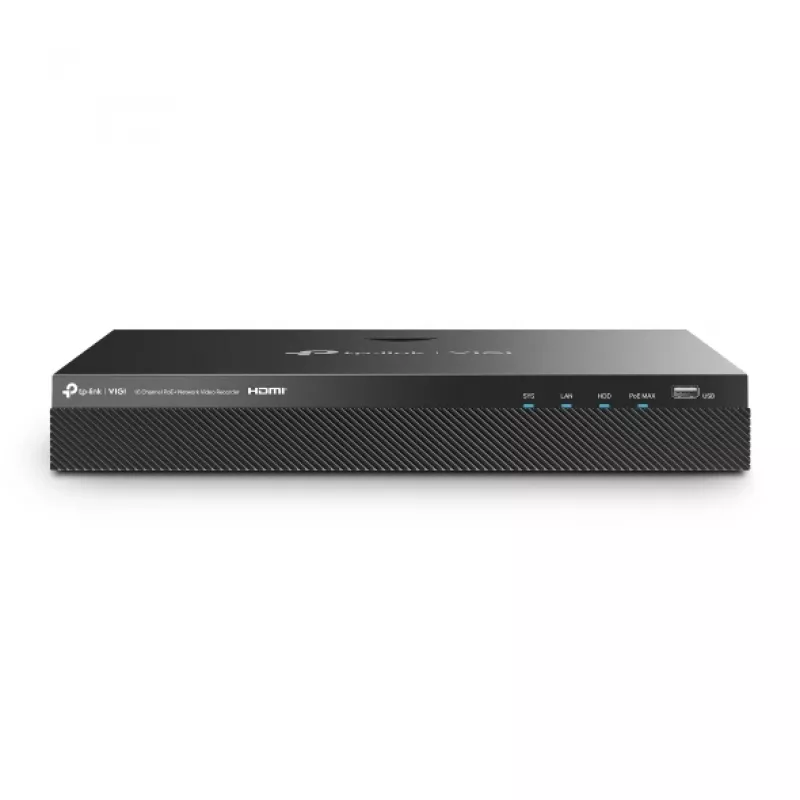

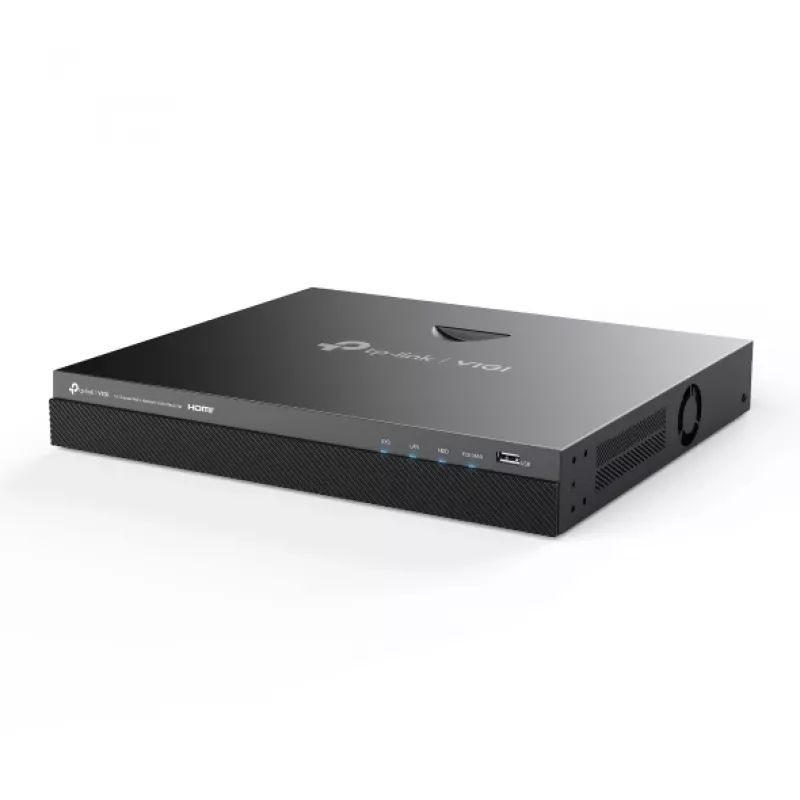

Network Video Recorder TP-Link VIGI 16-Channel PoE+ NVR, 4 TB HDD, 16× 3840×2160 input, 30W PoE per port

TP-Link VIGI 16-Channel PoE+ Network Video Recorder with 4 TB HDD supports up to 16 video input channels at resolutions up to 3840×2160. The NVR integrates sixteen PoE+ ports supplying power and data over a single Ethernet cable, a SATA hard drive interface with a preinstalled 4 TB drive, 10/100/1000 Mbps Ethernet connectivity, and compatibility with IEEE 802.3af/at standards and ONVIF devices. It provides 4K HDMI output, multi-channel simultaneous playback and H.265+ compression to reduce storage and bandwidth needs while preserving image quality.

Advantages

This VIGI NVR centralizes multi-camera surveillance with dedicated PoE+ ports that simplify camera deployment and reduce cabling. Native 4K decoding and HDMI output enable clear local monitoring, while H.265+ compression lowers disk usage and network load. Built-in support for ONVIF devices expands camera compatibility. Auto Initialize and four-way management via web UI, NVR UI, VIGI app and VIGI Security Manager accelerate setup and ongoing administration. Two-way audio and remote alerts add real-time control and notification options.

Suitable for

• Small and medium retail stores, supermarkets and convenience shops
• Offices and corporate reception areas
• Restaurants, cafes and service counters
• Warehouses, storage rooms and light industrial facilities
• Financial institutions, clinics and other customer-facing premises

Key specifications

• Maximum video input channels: 16
• Maximum supported resolution per channel: 3840 × 2160 (4K)
• Simultaneous playback: up to 16 channels
• Decoding capacity: supports up to 16 MP total decoding with 8-channel @ 2MP playback capability

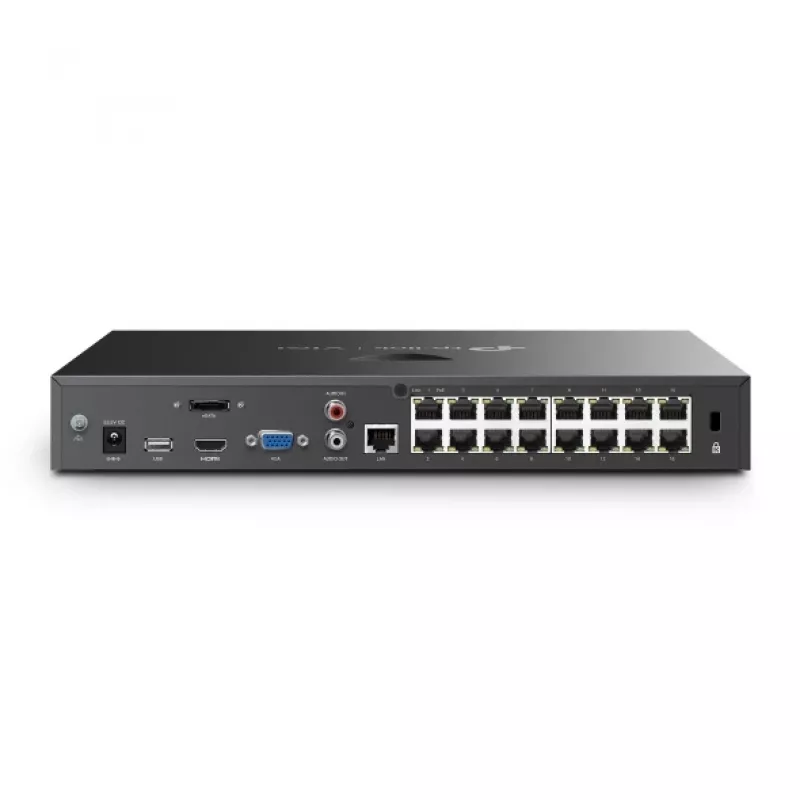

• PoE ports: 16 PoE+ (802.3af/at compliant) with total PoE budget of 140 W and up to 30 W per port
• Compression: H.265+ (reduces bandwidth and storage consumption)
• Input bandwidth: 80 Mbit/s; Output bandwidth: 60 Mbit/s

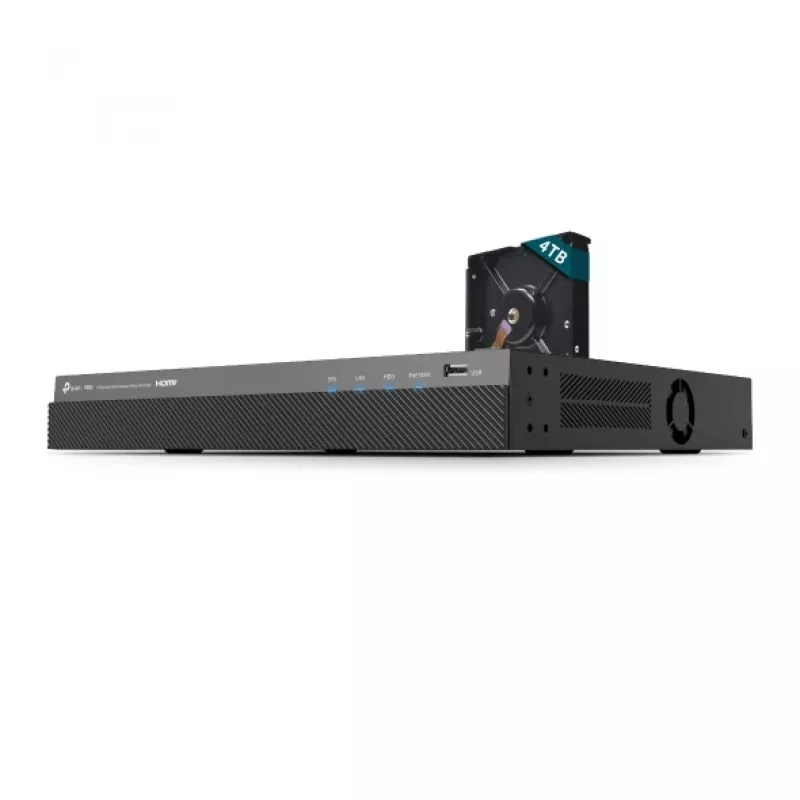

• Storage: 1 × SATA HDD preinstalled 4 TB; maximum expandable storage supported (refer to product manual for limits)
• Network interface: 1 × 10/100/1000 Mbps Ethernet (RJ-45)
• Video output: 4K HDMI
• Audio: Two-way audio support
• Color: Black

How to use

Connect IP cameras to the NVR's PoE+ ports using Cat5e/Cat6 Ethernet cables to provide both power and data. Attach the NVR to a network router or switch via the LAN port for remote access and configure local display through the HDMI output. Use the Auto Initialize function to quickly detect connected IPCs and set basic recording parameters and schedules. Configure recording type (continuous, scheduled, or event-triggered) and verify storage settings to ensure footage retention meets your requirements. Install and log into the VIGI app or client to enable remote monitoring, live view, playback and alert notifications.

Recommendations

Place the NVR in a well-ventilated, secure location and connect cameras with good-quality shielded Ethernet cables to ensure stable PoE delivery. Regularly check HDD health and configure periodic backups or off-site storage for critical footage. Use scheduled recording and motion-triggered events to optimize storage usage, and keep firmware and the VIGI app up to date for compatibility and security improvements.
