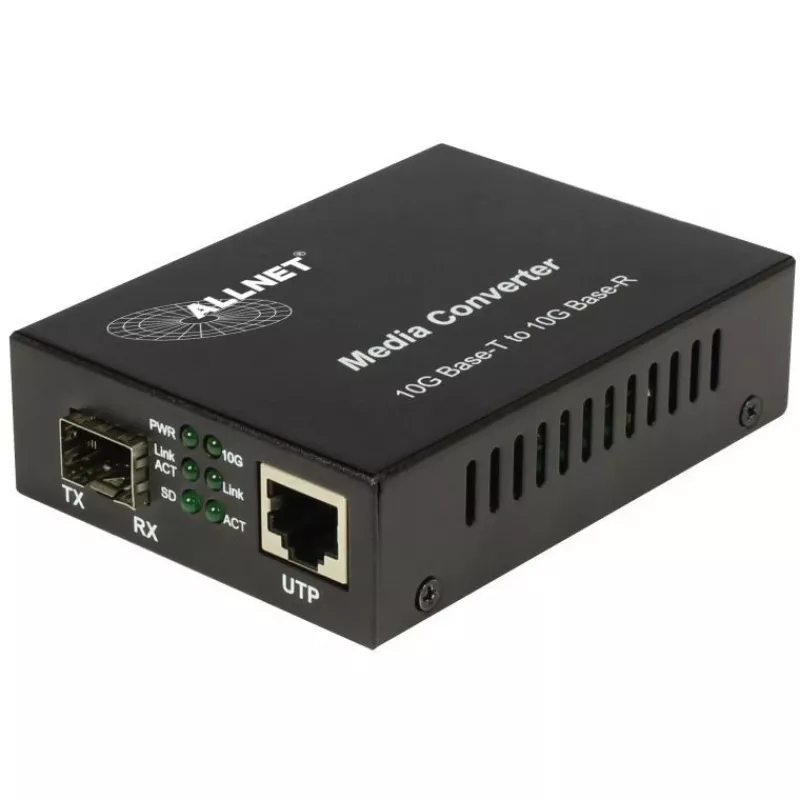

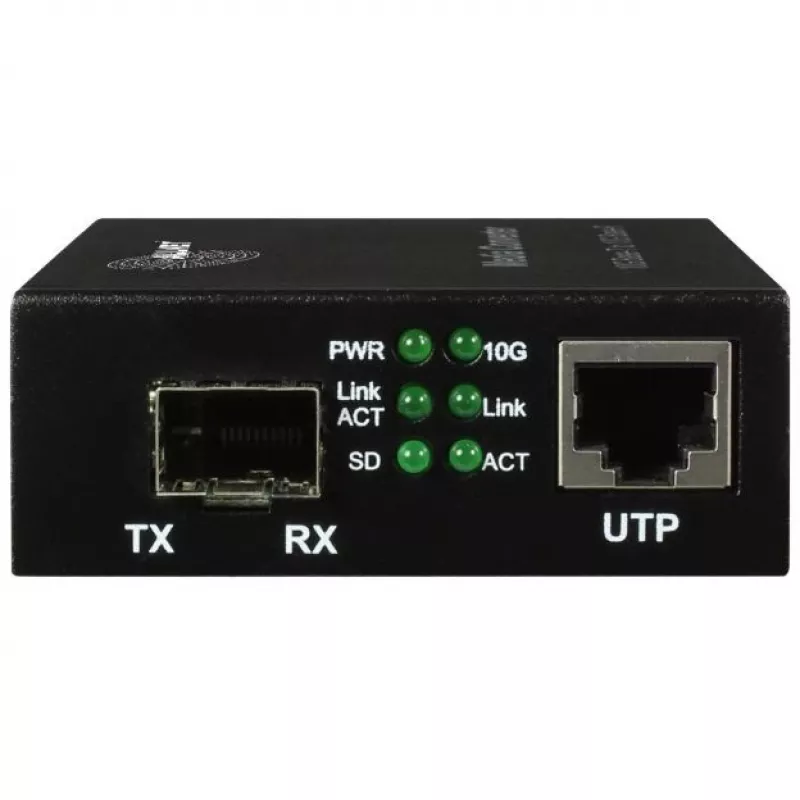

Network Media Converter ALLNET ALL-MC109-SFP+

The ALLNET ALL-MC109-SFP+ is a compact network media converter designed to bridge copper and fiber links with a maximum data transfer rate of 10000 Mbit/s. It provides one RJ-45 Ethernet port and one SFP+ fiber port to convert between 10Base-T/100Base-TX/1000Base-T Ethernet and SFP+ fiber connectivity. The unit is black, lightweight at 0.23 kg, and intended for installations requiring a small footprint and reliable wired connections up to 100 m.

Advantages

This media converter supports high-speed connectivity up to 10 Gbit/s while maintaining compatibility with legacy Ethernet speeds. The integrated LED indicators offer clear status information about power and link activity. With a power consumption of up to 10 W and a 5 V/2 A power input, the ALL-MC109-SFP+ combines low energy use with stable operation. Its SFP+ fiber interface allows flexible fiber module choices and convenient integration into existing fiber networks.

Suitable for

• Extending Ethernet networks from copper to fiber links within local networks
• Connecting single devices or network segments to fiber infrastructure
• Small server rooms, network closets, or desktop placement where space is limited
• Environments that require SFP+ fiber modules for 10 Gbit/s links

Key specifications

• Maximum data transfer rate: 10000 Mbit/s
• Ethernet LAN (RJ-45) ports: 1
• Fiber ports quantity: 1 (SFP+ connector)
• Supported Ethernet interfaces: 10Base-T, 100Base-TX, 1000Base-T
• Maximum transfer distance: 100 m (copper link, depending on cable and environment)
• Product colour: Black
• Weight: 0.23 kg
• Power consumption: maximum 10 W; input 5 V, 2 A

How to use

Install an appropriate SFP+ fiber module into the SFP+ slot and connect the fiber cable according to the module specifications. Connect the RJ-45 Ethernet cable to the Ethernet LAN port and the other end to the device or switch to be linked. Apply the supplied or compatible 5 V/2 A power adapter and verify LED indicators for power and link status. Ensure proper seating of cables and modules and allow the converter to establish link negotiation between copper and fiber interfaces.

Recommendations

Use high-quality SFP+ modules and compatible fiber cabling rated for the intended distance and data rate. Place the converter in a ventilated, dust-free environment and avoid exposure to excessive heat or moisture. For best performance, verify link speed settings on connected devices and test the connection after installation.
