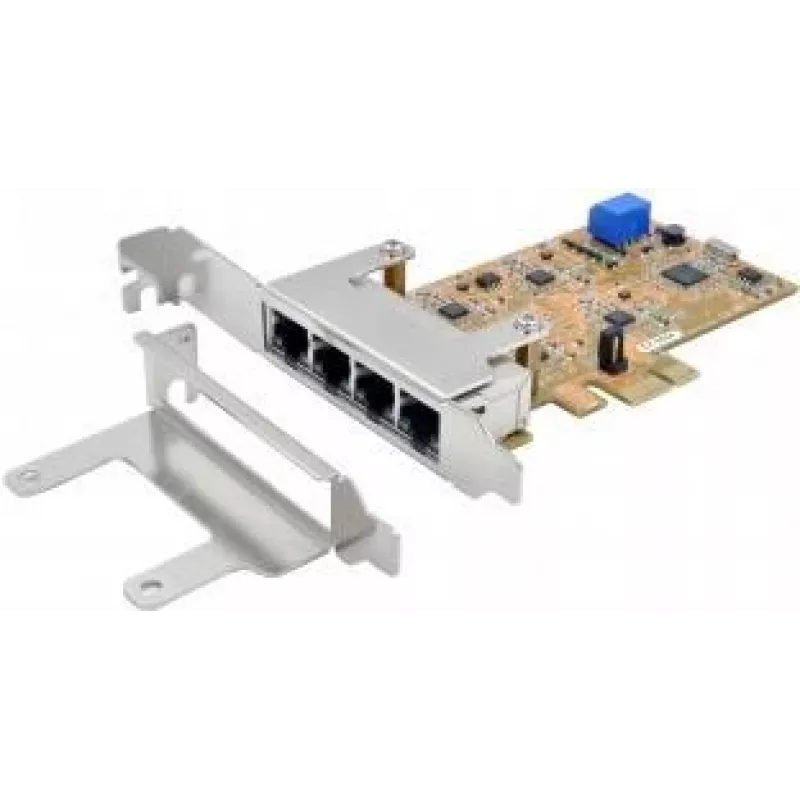

Network Card EXSYS EX-6084 Internal Ethernet 1000 Mbit/s

The EXSYS EX-6084 is a quad Gigabit Ethernet network card for PCI Express x1 slots, providing wired connectivity with up to 1000 Mbit/s per port. The card supports standard Ethernet features and is supplied with a low-profile bracket for installation in compact systems.

Advantages

The EX-6084 provides four independent Gigabit ports with support for Half and Full Duplex and NWay auto-negotiation, allowing automatic adaptation to 10/100/1000 Mbps network speeds. Auto-MDI/MDI-X simplifies cabling, and each port can be enabled or disabled during operation. The card offers broad operating system compatibility and fits both standard and low-profile PC cases.

Suitable for

• Desktop workstations requiring multiple wired Gigabit connections
• Small office or home office networks with high data throughput needs
• Networked multimedia or file-server applications
• Systems with limited internal space (low-profile compatible)

Key specifications

• Model: EXSYS EX-6084 (MPN: EX-6084, EAN: 4718359060847)
• Interface: PCI Express x1
• Ports: 4 × Gigabit Ethernet (10/100/1000 Mbps per port)
• Duplex modes: Half and Full Duplex
• Auto-negotiation: NWay auto-negotiation
• Cabling: Auto-MDI/MDI-X
• Bracket: Standard and low-profile included

How to use

Power down the PC and insert the EX-6084 into an available PCIe x1 slot, or x4/x8/x16 slot if necessary. Secure the card with the appropriate bracket (standard or low-profile) and reconnect power. Install drivers if required by the operating system or allow the system to detect and configure the card automatically. Connect network cables to the desired ports; each port can be turned on or off via the system or driver utilities while the system is running.

Recommendations

For optimal performance, use Cat5e or Cat6 cables and ensure network switches and routers support Gigabit speeds. Verify driver availability for your operating system before installation and update firmware or drivers as needed to maintain compatibility and stability.
