Network adapter bracket InLine 10102A for PCIe slot — passive mounting accessory

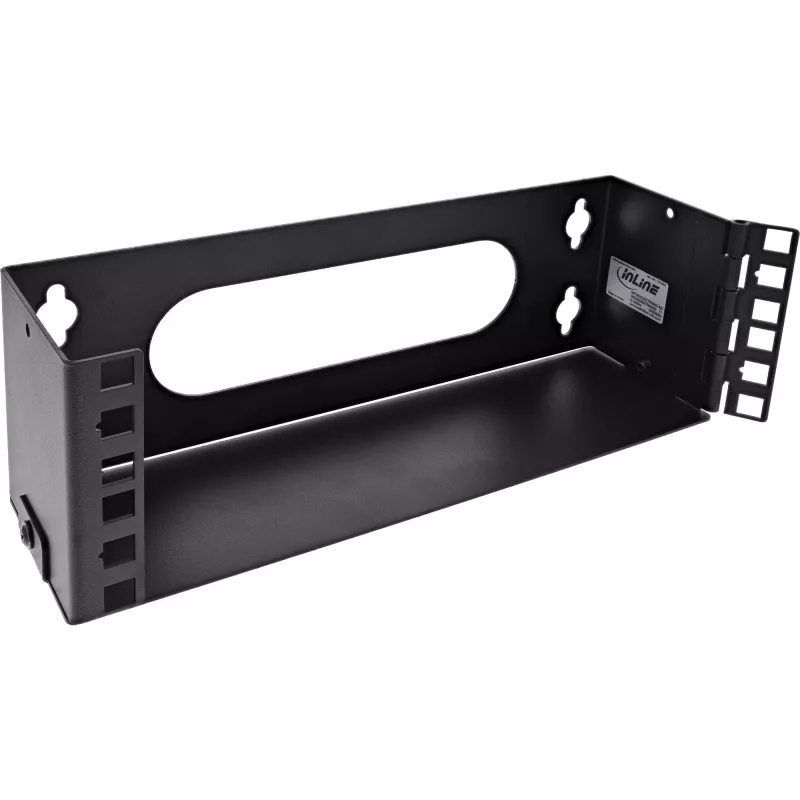

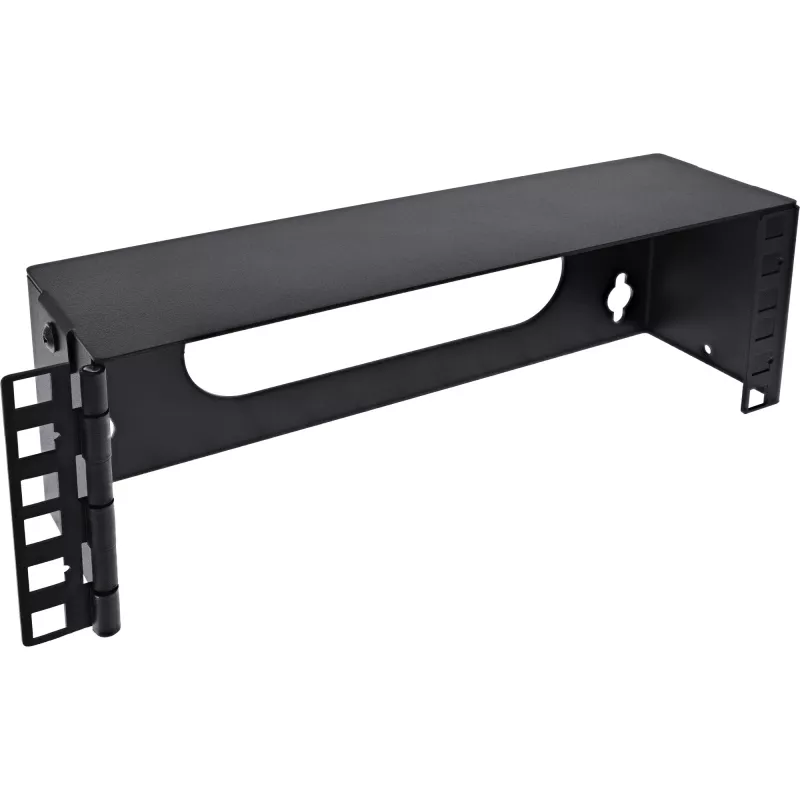

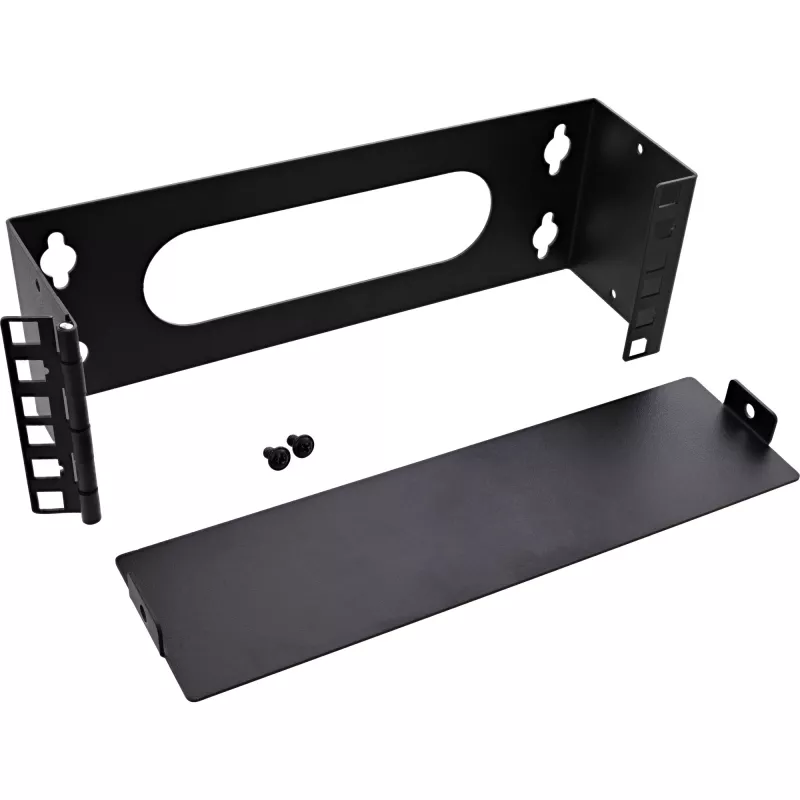

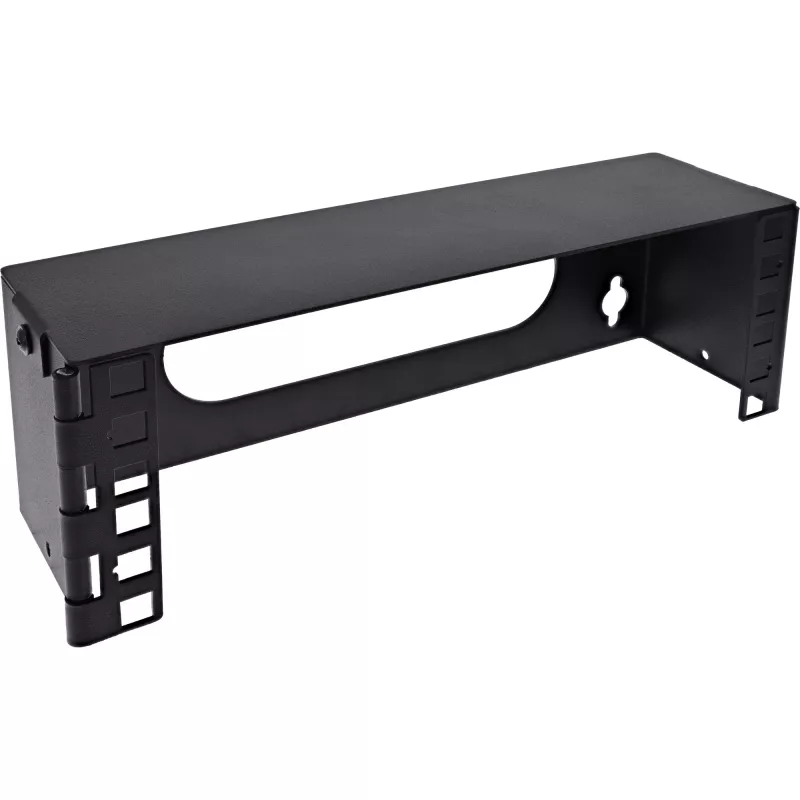

The InLine mini rack in 10" format provides a space-saving 2U wall-mount solution with a shallow depth of 7.6 cm. Constructed from 1.5 mm SPCC steel with a black powder coating (RAL9005), the unit is intended for compact network installations where a standard 19" cabinet would be too large. The rack includes the mounting hardware required for secure wall installation.

Advantages

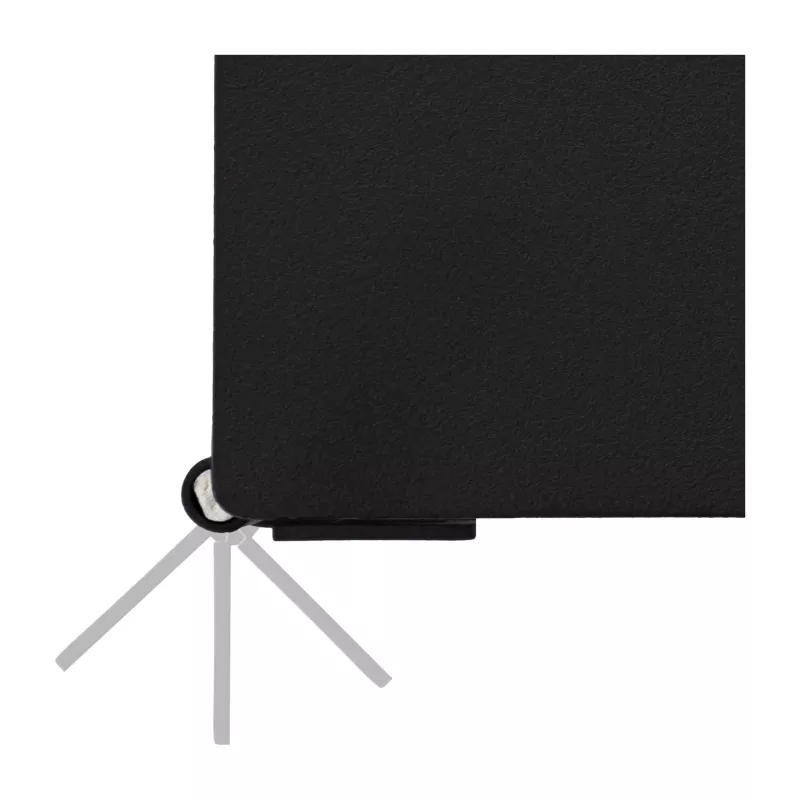

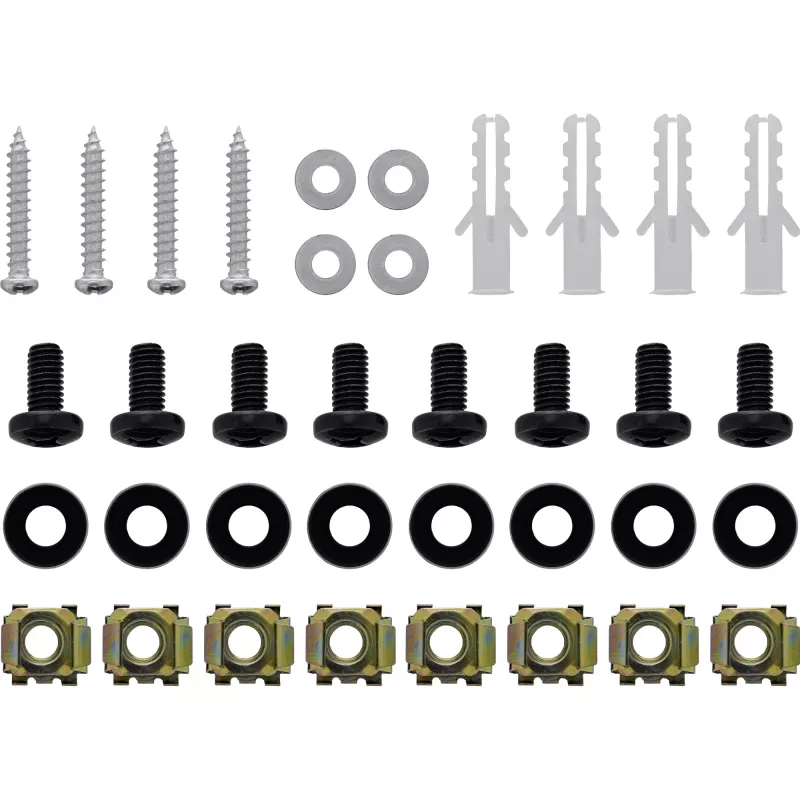

The steel housing with 1.5 mm thickness and black RAL9005 powder coating ensures mechanical stability and corrosion resistance appropriate for technical and industrial environments. Its compact 2U height and 7.6 cm depth allow installation of flat 10" network devices while saving wall space. A complete mounting kit with screws, dowels and eight M6 cage nuts is supplied for straightforward installation.

Suitable for

Key specifications

How to use

Mark the mounting position on the wall, ensuring sufficient clearance for connected cables and ventilation. Fix the housing to the wall using the supplied dowels and screws, then install the M6 cage nuts on the 10" mounting rails. Mount the patch panel, switch or controller into the 2U space and fasten it with appropriate screws. Verify mechanical stability and cable routing before returning the installation to service.

Recommendations

Install devices with a flat profile suitable for the 7.6 cm depth and keep the combined device weight below the 10 kg load limit. Allow space for cable bends and avoid obstructing ventilation openings to ensure reliable operation.
