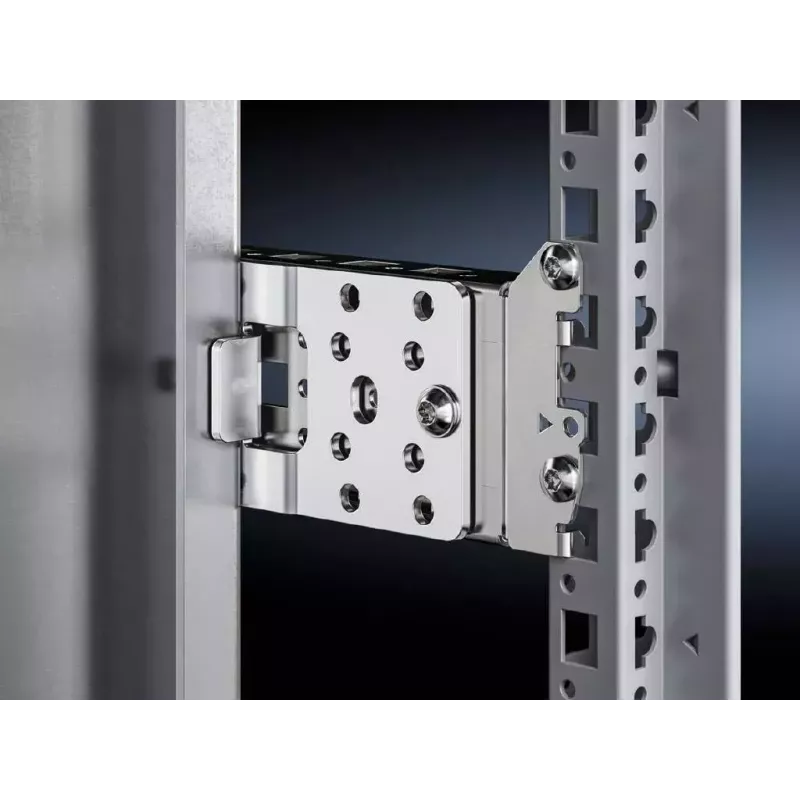

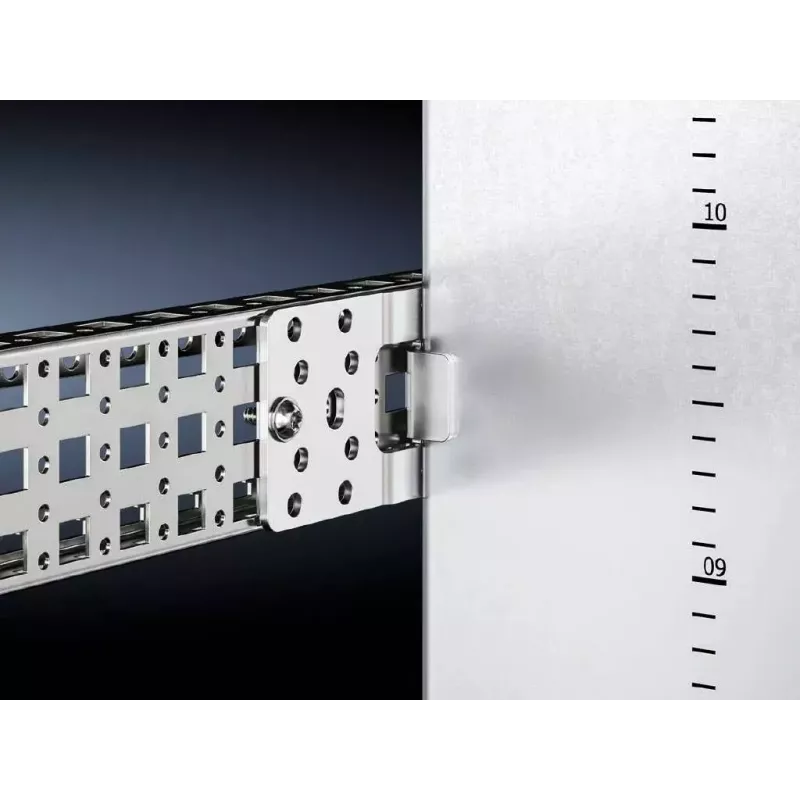

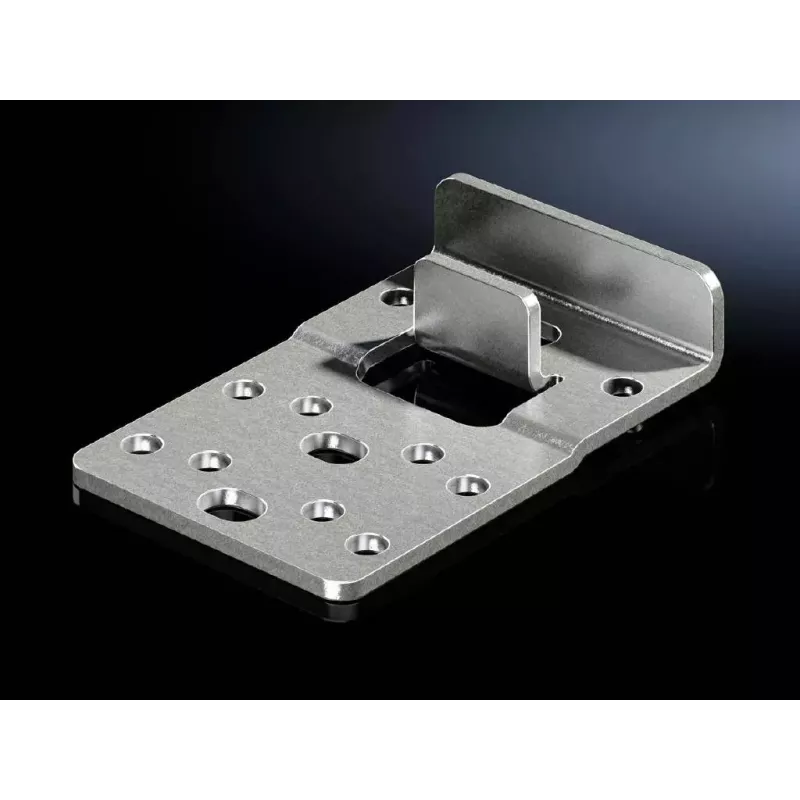

Mounting plate Rittal 8617.351

The Rittal 8617.351 mounting plate is a satin steel component engineered to provide a stable and durable surface for installing electrical and mechanical equipment. Supplied in packs of ten pieces with a total pack weight of approximately 1.53 kg, the plate is intended for use where a corrosion-resistant, rigid mounting base is required within enclosures, cabinets, or other support structures.

Advantages

The satin steel construction ensures consistent strength and a smooth finish that resists minor corrosion and mechanical wear. Supplied in multi-piece packs, the plates allow for economical installation of multiple units or for replacement stock. The design offers reliable support and dimensional stability for a variety of mounted components, improving installation efficiency and long-term maintenance.

Suitable for

Key specifications

How to use

Position the mounting plate on the internal surface of the enclosure or cabinet and secure it with appropriate fasteners for the substrate and load conditions. Mark and drill holes in the plate as required for the equipment to be mounted, ensuring that fastener types and torque values match the requirements of the mounted components. Maintain clearance for cable entry and ventilation as specified by the equipment manufacturer.

Recommendations

Store plates in a dry environment prior to installation to avoid surface oxidation. When cutting or drilling, deburr edges to prevent damage to wiring and to ensure safe handling. Use appropriate corrosion-resistant fasteners where exposure to humidity or chemicals is expected.
