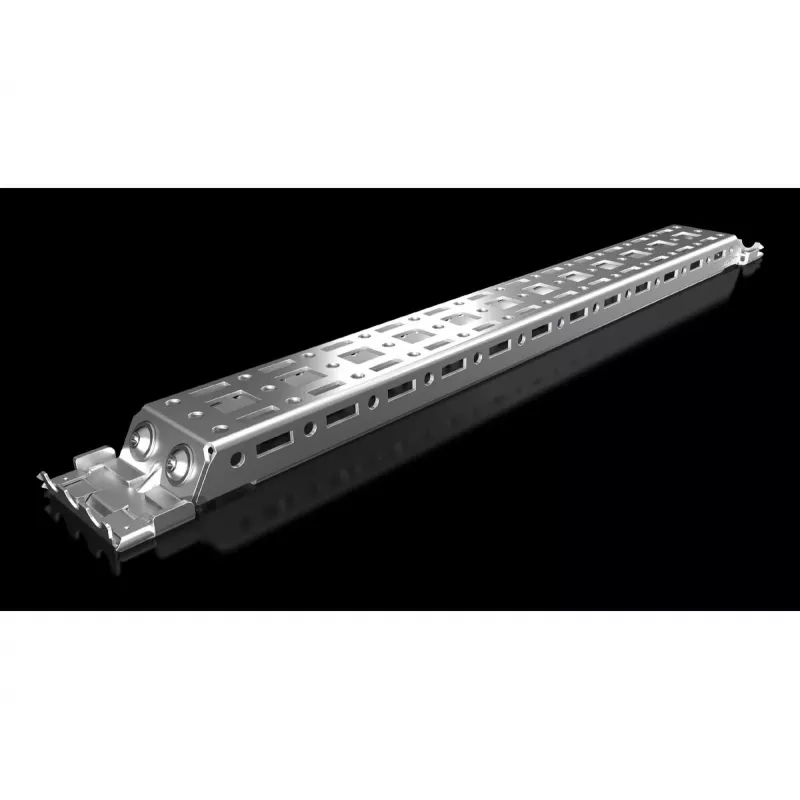

Rack rail Rittal AX 2394.400 — steel, set of 4, weight 1.44 kg

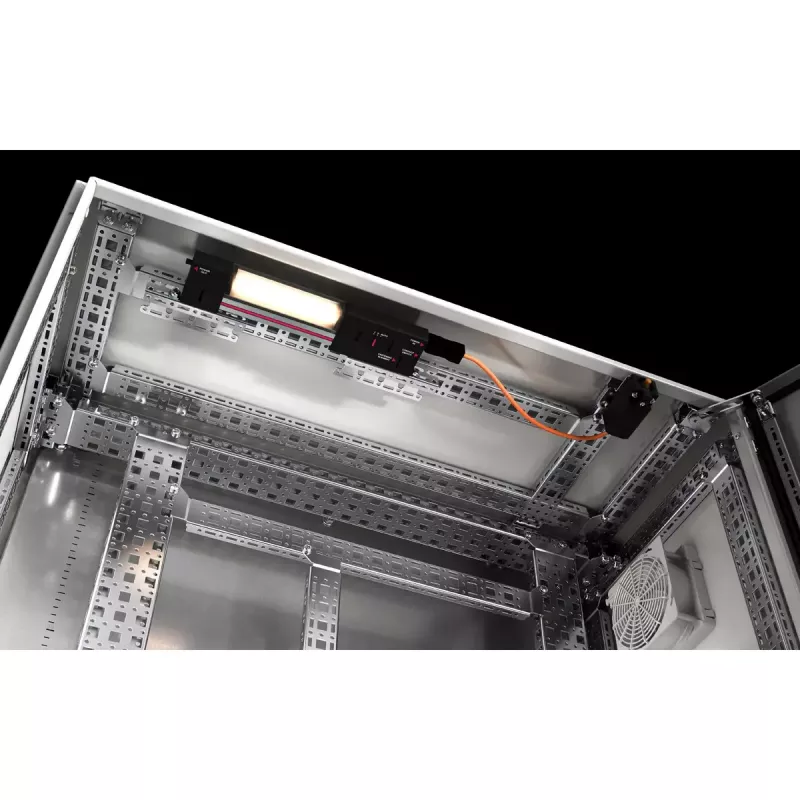

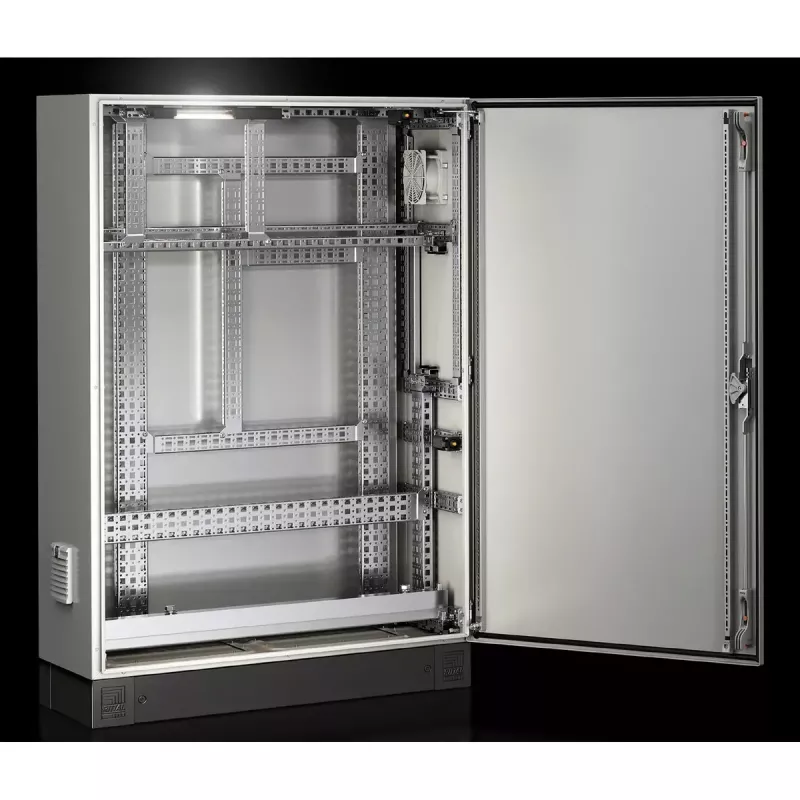

Rittal AX 2394.400 steel rack rail is a set of four ready-to-install rails designed to provide additional mounting space inside server, network and industrial cabinets. Manufactured from steel with a natural finish, the rails enable secure attachment of rack-mounted devices and accessory components without the need for machining. They are suitable for side and roof mounting and integrate with standard VX punched sections and common cabinet accessories.

Advantages

The rails are supplied as a matched set of four, offering consistent dimensions and a uniform natural steel finish for easy planning and installation. No machining is required for mounting, reducing installation time and minimizing the need for additional tools. The design is compatible with a variety of VX punched sections and common enclosure accessories, allowing flexible use for equipment support, cable guidance and accessory mounting.

Suitable for

Key specifications

How to use

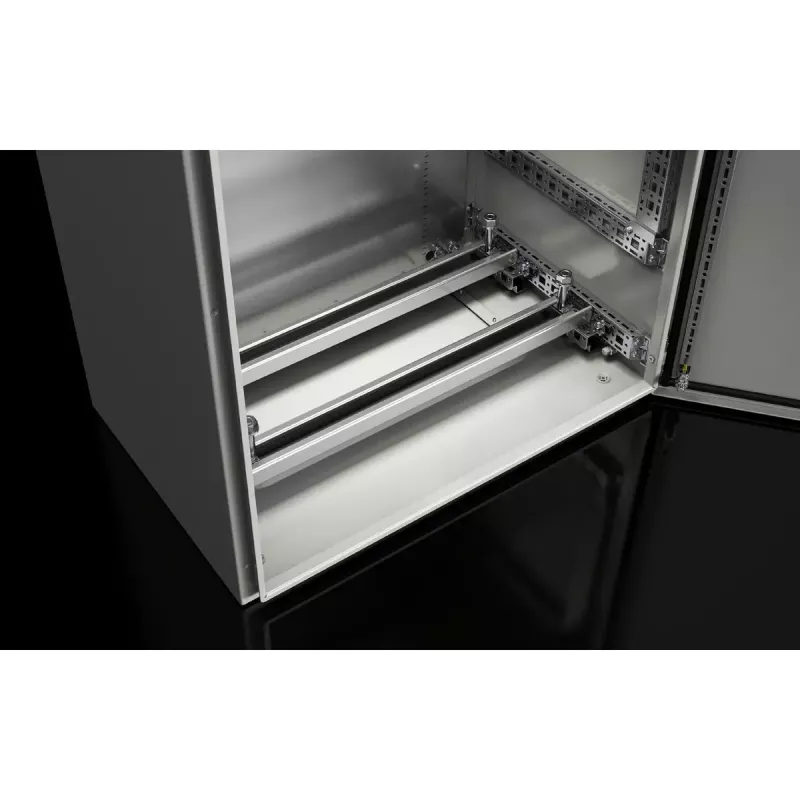

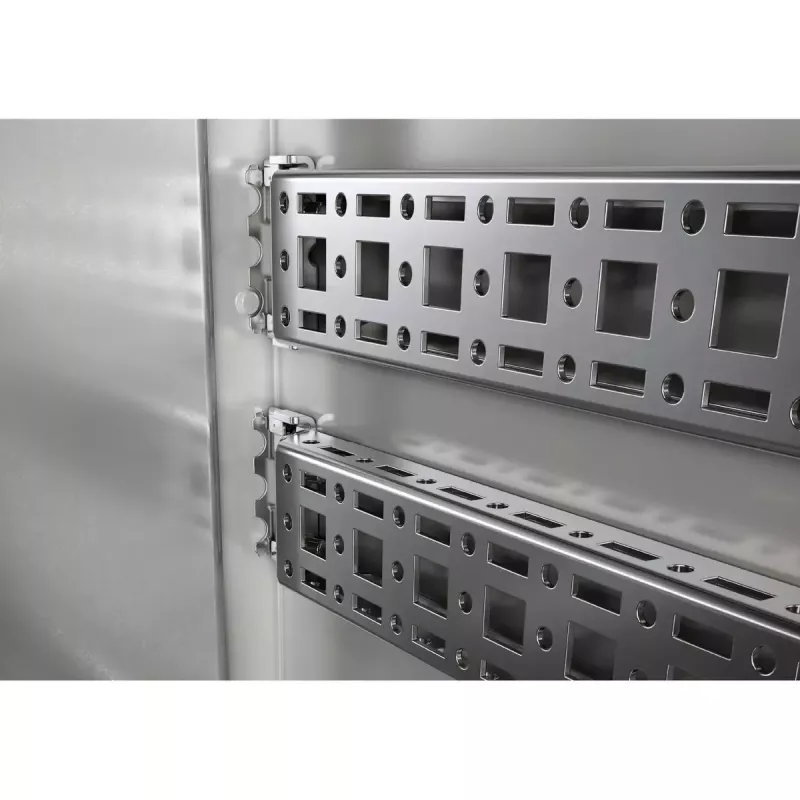

Position the rails in the chosen locations on the enclosure sides or roof and attach them using the cabinet’s standard fastening points. Ensure alignment with VX punched sections or accessory mounting points as required by the equipment being installed. After securing the rails, mount devices or accessories onto the rails following the manufacturer’s instructions for those components. Verify that all fastenings are tight and that mounted equipment is supported evenly to prevent undue stress on the enclosure structure.

Recommendations

Use the rails in combination with compatible VX punched sections and purpose-designed accessories for reliable support. Check load ratings of the cabinet and accessories before mounting heavy equipment, and distribute weight evenly across multiple rails where possible.
