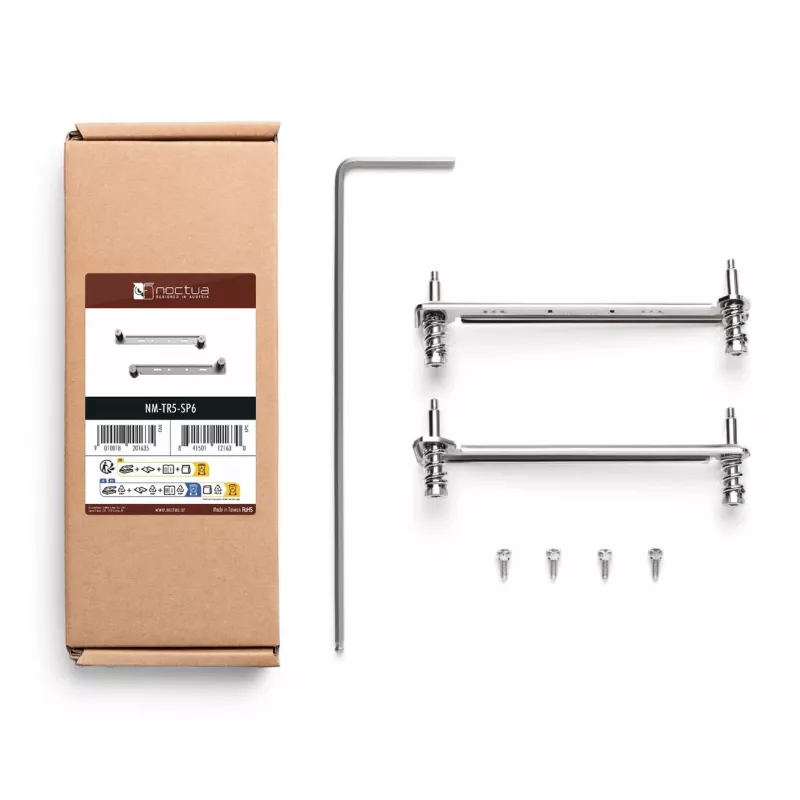

Mounting kit Noctua NM-TR5-SP6 for SP6 sTRX5 sWRX9 processors

The Noctua NM-TR5-SP6 is a SecuFirm2™ mounting kit that enables fitting Noctua DX-4677, DX-4189, DX-3647 and TR4-SP3 series coolers to AMD TR5/SP6 sockets (sTRX5/sWRX9) used with Epyc server and Threadripper workstation CPUs. The kit is supplied in compact packaging and comes in a metallic colour. Brackets and springs have been updated to meet the increased pressure requirements of the TR5/SP6 socket while maintaining compatibility with the mentioned Noctua coolers.

Advantages

The mounting kit provides a secure SecuFirm2™ mounting solution for AMD SP6/sTRX5/sWRX9 platforms, with reinforced brackets and springs adapted for higher contact pressure. Installation follows the familiar Noctua procedure: position the heatsink, tighten the four spring-loaded Allen screws with the supplied tool and complete the mounting quickly. The kit preserves compatibility with Noctua’s DX-4677, DX-4189, DX-3647 and TR4-SP3 cooler series.

Suitable for

• Installing Noctua DX-4677, DX-4189, DX-3647 and TR4-SP3 coolers on AMD TR5/SP6 (sTRX5/sWRX9) motherboards
• Workstation builds using Threadripper processors requiring sTRX5 sockets
• Server or high-end workstation systems based on AMD Epyc or compatible SP6 platforms

Key specifications

• Model: Noctua NM-TR5-SP6 (SecuFirm2™ mounting kit)
• Compatibility: AMD TR5/SP6 sockets (sTRX5 / sWRX9)
• Compatible cooler series: DX-4677, DX-4189, DX-3647, TR4-SP3
• Colour: metallic
• Packaging dimensions: 74 × 23 × 192 mm
• Manufacturer part number (MPN): NM-TR5-SP6
• EAN: 9010018201635

How to use

Place the heatsink on the processor aligned with the socket and the mounting holes. Use the supplied Allen key tool to tighten the four spring-loaded screws until the heatsink sits evenly and securely. The spring-loaded screws ensure correct contact pressure when mounting on TR5/SP6 sockets. Follow standard thermal paste application and motherboard manual instructions for safe installation.

Recommendations

Use the NM-TR5-SP6 only with the listed Noctua cooler series and on compatible SP6/sTRX5/sWRX9 sockets. Apply an appropriate amount of thermal paste and tighten screws evenly in a cross pattern to ensure uniform pressure. Do not overtighten; follow torque guidance from the cooler or motherboard documentation where available.
