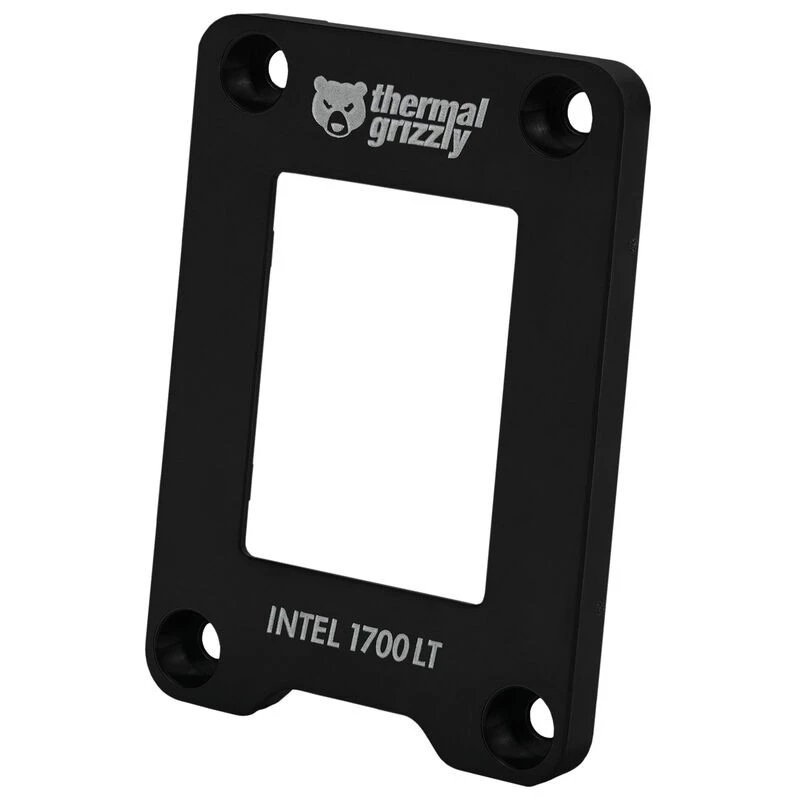

Thermal Grizzly CPU Contact Frame Intel 1700 LT — mounting frame for Intel LGA 1700

Thermal Grizzly CPU Contact Frame Intel 1700 LT is a mounting frame engineered for Intel LGA 1700 sockets to provide consistent contact between the CPU heatspreader and compatible coolers. The frame helps align the cooler, maintain even pressure across the CPU surface, and reduce the risk of poor thermal interface contact during installation or replacement. It is intended for use with compatible cooling solutions where a dedicated mounting frame is required to achieve secure and repeatable cooler mounting on Intel 1700-series motherboards.

Advantages

The mounting frame simplifies assembly by guiding the cooler into the correct position and stabilizing it during fastening, which contributes to uniform pressure distribution over the CPU heatspreader. Its design minimizes the chance of mechanical stress or uneven contact that can degrade thermal transfer. The frame is manufactured to match the physical layout of Intel LGA 1700 socket mounting points, offering a straightforward replacement or upgrade part when original hardware is missing or damaged.

Suitable for

• Installing aftermarket coolers on Intel LGA 1700 motherboards
• Replacing a damaged or missing mounting bracket for Intel 1700-series CPUs
• System builders and technicians performing CPU cooler maintenance or upgrades

Key specifications

• Compatibility: Intel LGA 1700 socket mounting pattern
• Function: mounting frame to ensure stable contact and alignment between cooler and CPU
• Material characteristics: rigid frame designed to maintain even pressure distribution (material varies by manufacturer production batch)
• Form factor: low-profile frame sized for 1700-series CPU heatspreader dimensions

How to use

Align the Thermal Grizzly CPU Contact Frame Intel 1700 LT with the motherboard’s LGA 1700 mounting points so that the frame rests flush around the CPU socket. Place the cooler according to the cooler manufacturer’s instructions, ensuring the cooler’s backplate or screws pass through the frame where required. Tighten fasteners in a cross pattern to apply even pressure across the CPU surface. Verify proper seating and even contact before powering the system.

Recommendations

Use only with coolers and mounting hardware compatible with Intel LGA 1700. Check the cooler manufacturer’s documentation for torque specifications and installation sequence. Inspect the frame for deformation prior to installation and replace if damaged to maintain reliable thermal interface performance.
