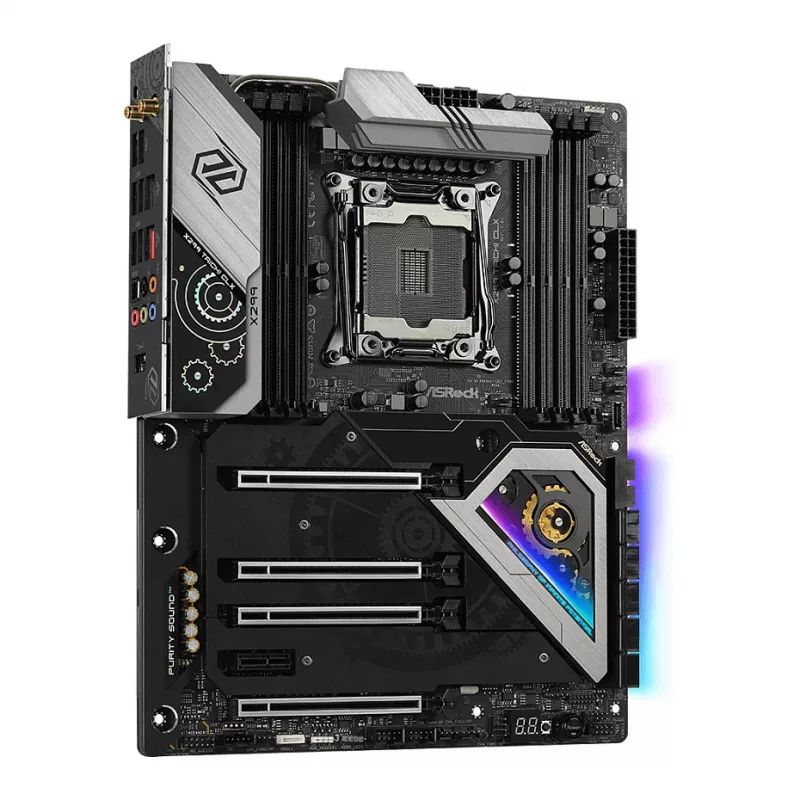

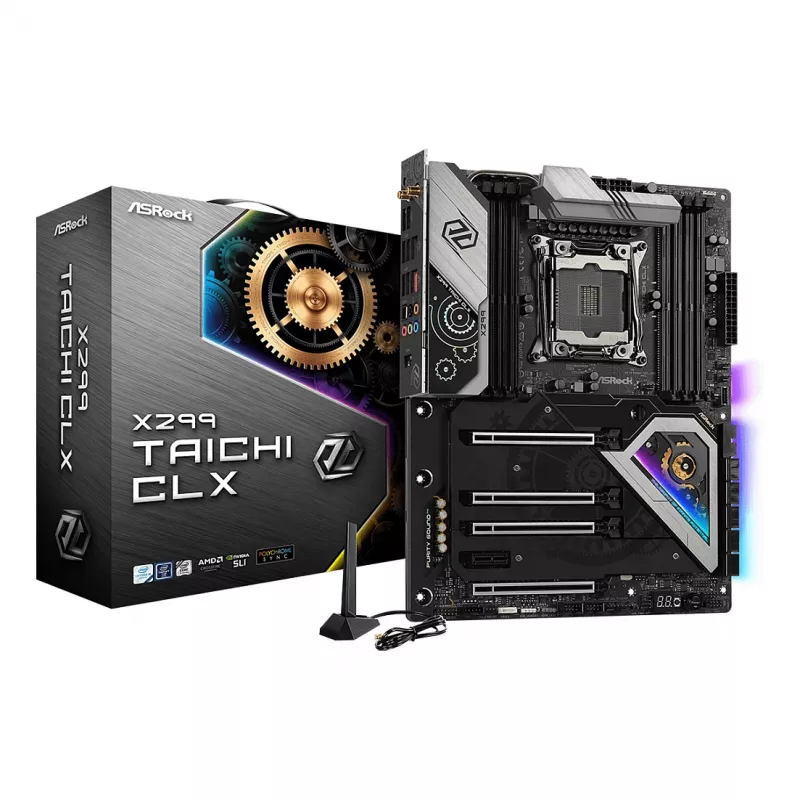

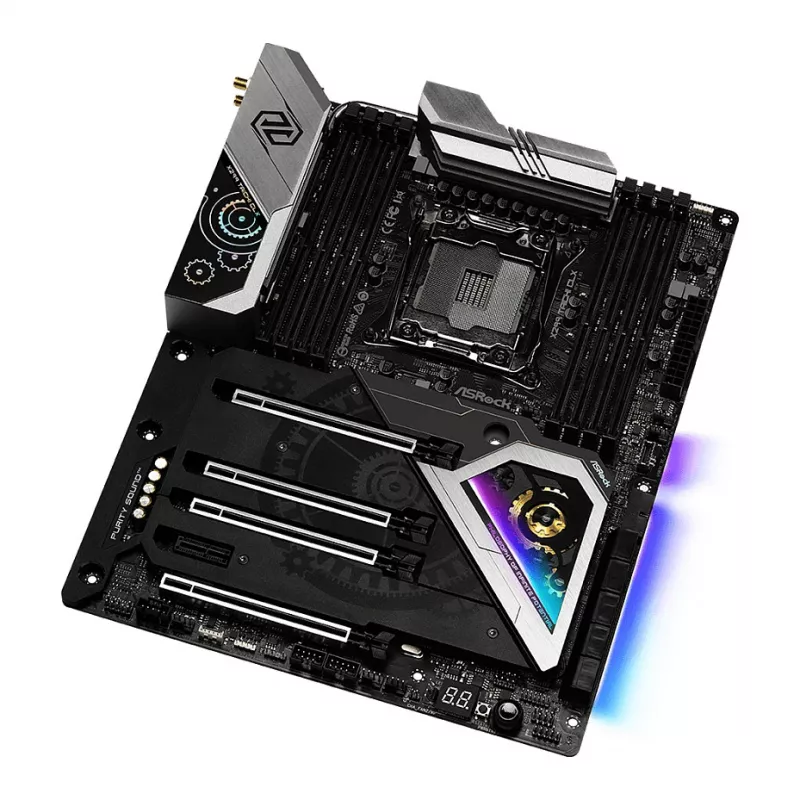

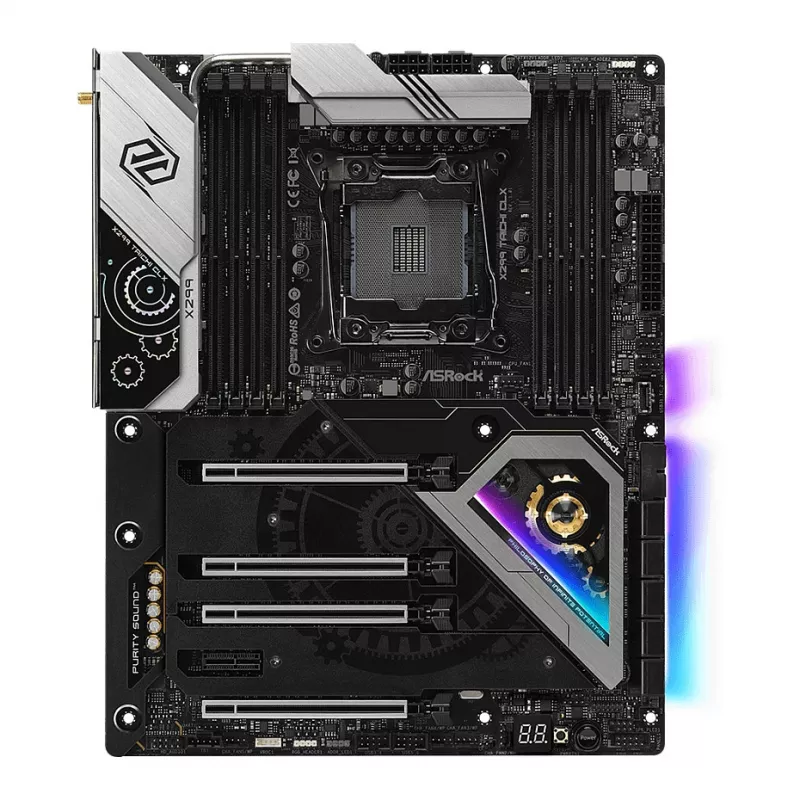

Motherboard ASRock X299 Taichi CLX Intel® X299 LGA 2066 ATX

Motherboard ASRock X299 Taichi CLX Intel® X299 LGA 2066 ATX
Motherboard ASRock X299 Taichi CLX Intel® X299 LGA 2066 ATX
Motherboard ASRock X299 Taichi CLX Intel® X299 LGA 2066 ATX
Motherboard ASRock X299 Taichi CLX Intel® X299 LGA 2066 ATX
Motherboard ASRock X299 Taichi CLX Intel® X299 LGA 2066 ATX
Motherboard ASRock X299 Taichi CLX Intel® X299 LGA 2066 ATX
Motherboard ASRock X299 Taichi CLX Intel® X299 LGA 2066 ATX
Motherboard ASRock X299 Taichi CLX Intel® X299 LGA 2066 ATX
Motherboard ASRock X299 Taichi CLX Intel® X299 LGA 2066 ATX
Motherboard ASRock X299 Taichi CLX Intel® X299 LGA 2066 ATX
R6,146
The ASRock X299 Taichi CLX motherboard is built for Intel® Core™ X-Series processors, offering a robust ATX platform with the LGA 2066 socket and X299 chipset. It supports high-performance DDR4 memory and extensive connectivity options, making it ideal for demanding computing tasks.Key featuresSuppo... Read More
Stock Out Of StockNo Stock Code 1468798 Brand ASROCK Model 90-MXBBH0-A0UAYZ Warranty 2 Years

Shipping & Returns

The ASRock X299 Taichi CLX motherboard is built for Intel® Core™ X-Series processors, offering a robust ATX platform with the LGA 2066 socket and X299 chipset. It supports high-performance DDR4 memory and extensive connectivity options, making it ideal for demanding computing tasks.

Key features

  • Supports Intel® Core™ X-Series processors with LGA 2066 (Socket R4) compatibility
  • Maximum 256 GB DDR4-SDRAM memory support via DIMM slots
  • Triple GPU support with 3-Way CrossFireX and 3-Way SLI technology
  • Dual LAN connectivity: 2.5 Gigabit Ethernet (Dragon RTL8125AG) and Gigabit Ethernet (Intel® I219-V)
  • Integrated Wi-Fi 6 (802.11ax) with backward compatibility to 802.11a/b/g/n
  • High-speed USB ports including USB-C Gen2, USB 3.2 Gen 1, and USB 3.2 Gen 2
  • 8-channel HD Audio and Bluetooth connectivity for immersive sound and wireless peripherals
Key Highlights
  • High-performance desktop builds with Intel Core X-series CPUs
  • Content creation and multimedia workstations
  • Multi-GPU gaming rigs (3‑Way CrossFireX / SLI support)
  • Systems requiring fast wired and wireless networking
  • Users needing multiple M.2 drives and high-bandwidth PCIe expansion
  • Form factor: ATX
  • Chipset: Intel® X299
  • Socket: LGA 2066 (Socket R4)
  • Memory: DDR4, up to 256 GB across 8 DIMM slots
  • PCIe: 4 x PCIe x16 (Gen3.x), 1 x PCIe x1 (Gen3.x)
  • Storage: SATA III ports, multiple M.2 (key M) sockets
  • LAN: Dragon 2.5 Gb/s Ethernet
  • Wireless: Intel® Wi‑Fi 6 802.11ax
  • USB: Rear and front USB 3.2 Gen2 Type-C; USB 3.2 Gen2x2 Type-C (up to 20 Gbps)
  • Power design: 13 power phases, Dr. MOS, 60A power chokes
  • Capacitors: Nichicon 12K Black Caps
Specifications
12V power connector
Yes
ACPI version
6.1
ATX Power connector (24-pin)
Yes
Audio chip
Realtek ALC1220
Audio output channels
7.1
BIOS memory size
128 Mbit
BIOS type
UEFI AMI
Bluetooth
Yes
Bluetooth version
5.0
Cables included
SATA
Clear CMOS button
Yes
Compatible processor series
Intel Core X-series
Component for
PC
CPU fan connector
Yes
Depth
244 mm
Digital audio optical out
1
Drivers included
Yes
DVI-D ports quantity
0
ECC сompatibility
non-ECC
eSATA ports quantity
0
Ethernet interface type
2.5 Gigabit Ethernet, Gigabit Ethernet
Ethernet LAN
Yes
Ethernet LAN (RJ-45) ports
2
Firewire (IEEE 1394) ports
0
Front panel audio connector
Yes
Harmonized System (HS) code
84733020
HDMI ports quantity
0
Intel Extreme Memory Profile (XMP)
Yes
LAN controller
Dragon RTL8125AG, Intel I219-V
Maximum internal memory
256 GB
Maximum number of SMP processors
1
Memory channels
Quad-channel
Memory slots type
DIMM
Motherboard chipset
Intel® X299
Motherboard chipset family
Intel
Motherboard form factor
ATX
Number of chassis fan connectors
5
Number of M.2 (E) slots
1
Number of memory slots
8
Number of Parallel ATA connectors
0
Number of SATA II connectors
0
Number of SATA III connectors
10
Parallel processing technology support
3-Way CrossFireX, 3-Way SLI, CrossFireX, SLI
PC health monitoring
Voltage, Temperature, FAN
PCI Express x1 (Gen 3.x) slots
1
PCI Express x16 (Gen 3.x) slots
4
Processor manufacturer
Intel
Processor socket
LGA 2066 (Socket R4)
PS/2 ports quantity
0
Quick installation guide
Yes
RGB LED pin header
Yes
S/PDIF out port
Yes
Supported memory clock speeds
3800, 3733, 3600, 3200, 2933, 2800, 2666, 2400, 2133, 4000, 4200
Supported memory types
DDR4-SDRAM
Supported storage drive interfaces
SATA III
System Management BIOS (SMBIOS) version
3.0
Thunderbolt headers
1
TPM connector
Yes
Unbuffered memory
Yes
USB 2.0 connectors
2
USB 2.0 ports quantity
2
USB 3.2 Gen 1 (3.1 Gen 1) connectors
1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
4
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity
0
USB 3.2 Gen 2 (3.1 Gen 2) connectors
1
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity
0
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity
1
Utilities included
Yes
VGA (D-Sub) ports quantity
0
Wake-on-LAN ready
Yes
Wi-Fi
Yes
Wi-Fi standards
802.11g, 802.11a, Wi-Fi 6 (802.11ax), Wi-Fi 4 (802.11n), 802.11b
Width
305 mm
WiFi-AP antenna jack
2
Windows operating systems supported
Windows 10 x64, Windows 10 Pro x64, Windows 10 Home x64, Windows 10 Enterprise x64, Windows 10 Education x64

Leaflet

Open Leaflet
