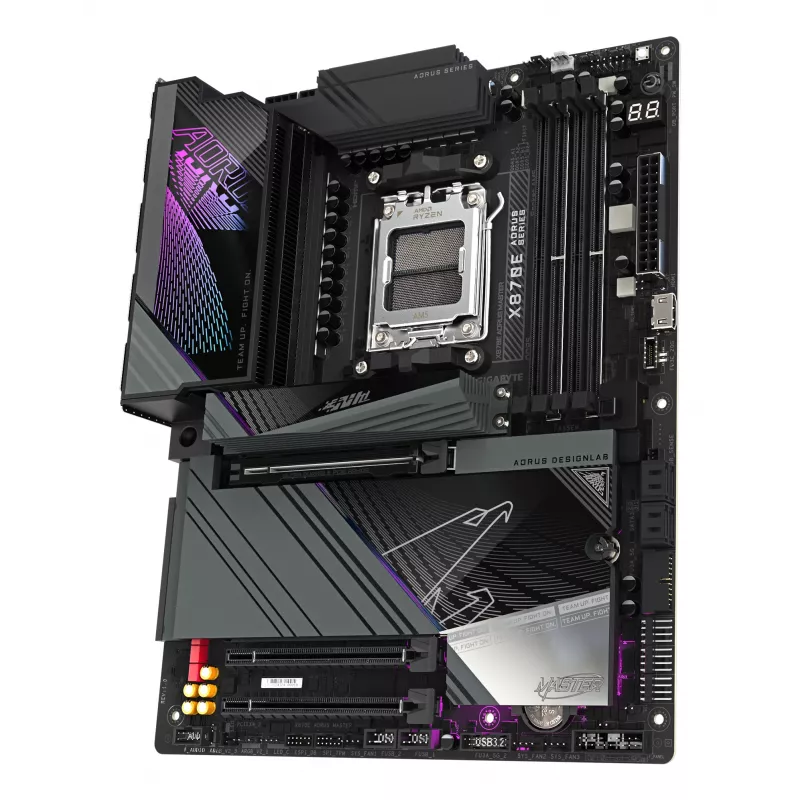

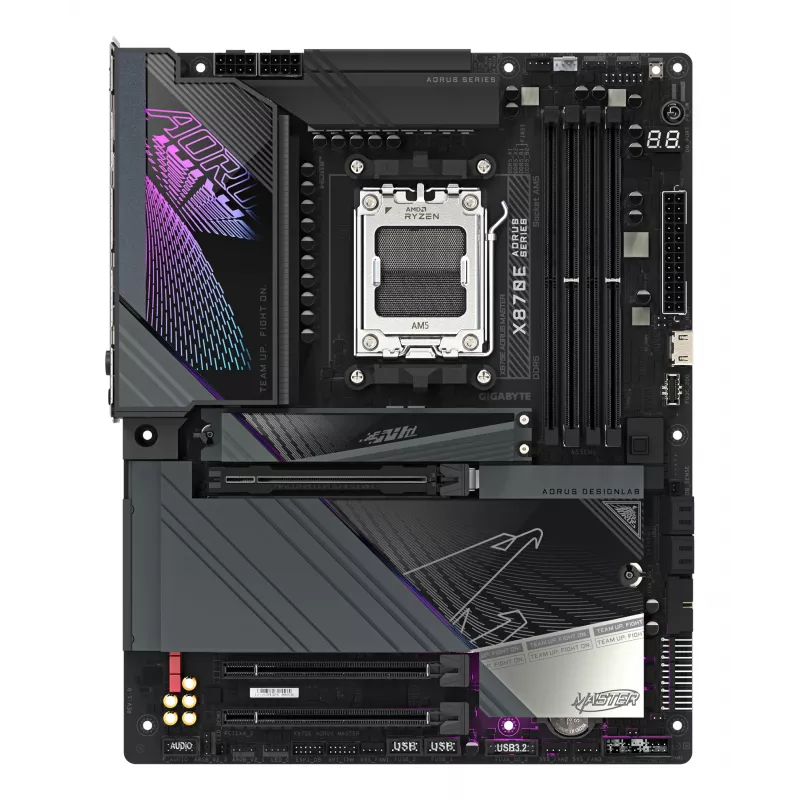

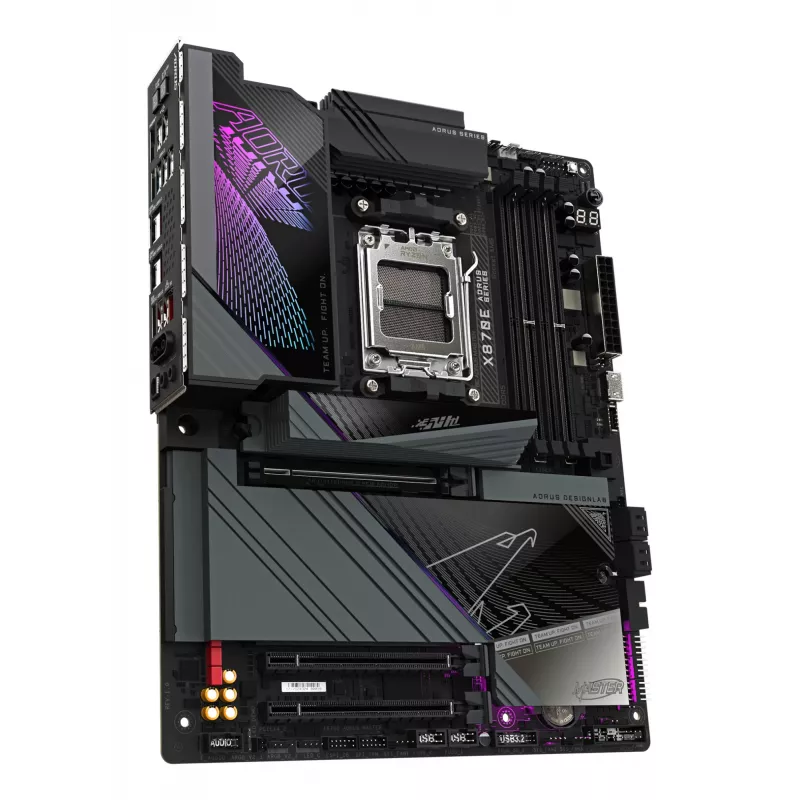

Motherboard GIGABYTE X870E AORUS MASTER, AMD, Socket AM5, ATX

Motherboard GIGABYTE X870E AORUS MASTER, AMD, Socket AM5, ATX
Motherboard GIGABYTE X870E AORUS MASTER, AMD, Socket AM5, ATX
Motherboard GIGABYTE X870E AORUS MASTER, AMD, Socket AM5, ATX
Motherboard GIGABYTE X870E AORUS MASTER, AMD, Socket AM5, ATX
Motherboard GIGABYTE X870E AORUS MASTER, AMD, Socket AM5, ATX
36 mo.
Motherboard GIGABYTE X870E AORUS MASTER, AMD, Socket AM5, ATX
Motherboard GIGABYTE X870E AORUS MASTER, AMD, Socket AM5, ATX
Motherboard GIGABYTE X870E AORUS MASTER, AMD, Socket AM5, ATX
Motherboard GIGABYTE X870E AORUS MASTER, AMD, Socket AM5, ATX
Motherboard GIGABYTE X870E AORUS MASTER, AMD, Socket AM5, ATX
R8,848
GIGABYTE AORUS, AERO and GIGABYTE motherboards deliver a balance of performance and reliability for gaming, content creation and professional work. These models integrate modern design, robust power delivery and connectivity options to support demanding processors and high-speed components while mai... Read More
Stock 4 Code 29763 Brand GIGABYTE Model X870E AORUS MASTER Warranty 3 Years

Shipping & Returns

Estimated delivery Thursday, October 1
You will be kept updated through our detailed tracking system
Payment options
EFTPayFastBank CardSnapScanZapperGoogle PayApple PayMobicredMoreTymePay on Arrival

GIGABYTE AORUS, AERO and GIGABYTE motherboards deliver a balance of performance and reliability for gaming, content creation and professional work. These models integrate modern design, robust power delivery and connectivity options to support demanding processors and high-speed components while maintaining system stability.

Advantages

The AORUS, AERO and GIGABYTE series provide reliable power management, expanded I/O and cooling options, and support for the latest memory and storage standards. Their designs prioritize durability and compatibility with a wide range of CPUs, GPUs and peripherals to meet various user requirements without compromising system stability.

Key specifications

  • Form factors: multiple sizes available (ATX, Micro-ATX, Mini-ITX depending on model)
  • CPU support: compatible with current mainstream desktop processors (model-dependent)
  • Memory: multi-channel DDR4/DDR5 support (depending on model)
  • Expansion: PCIe x16 slots with support for high-performance GPUs
  • Storage: M.2 slots and SATA connectors for SSDs and HDDs
  • Networking: onboard Ethernet and optional Wi‑Fi modules (model-dependent)

How to use

Choose the motherboard model that matches your processor socket and desired feature set. Install the CPU, memory and cooling according to the manufacturer’s instructions, mount the board in a compatible case, and connect storage, power supply and peripherals. Update the BIOS/UEFI and drivers after assembly to ensure optimal compatibility and performance.

Recommendations

Select a board from the AORUS line for gaming-focused builds, AERO for content-creation workflows, or standard GIGABYTE models for balanced general-purpose systems; verify model specifications for socket, memory type and expansion needs before purchase.

Key Highlights
  • AMD Socket AM5: Supports AMD Ryzen 9000 Series, 8000 Series, 7000 Series Processors
  • Twin 16+2+2 Phases Digital VRM with 110A Smart Power Stage
  • Dual Channel DDR5:4*DIMMs with AMD EXPO & Intel XMP Memory Module Support
  • PCIe Gen5 x16 with PCIe UD Slot X & EZ-Latch Plus
  • M.2 Gen5 with EZ-Latch Plus
  • Efficient Overall Thermal: Fully Covered MOSFET Heatsinks

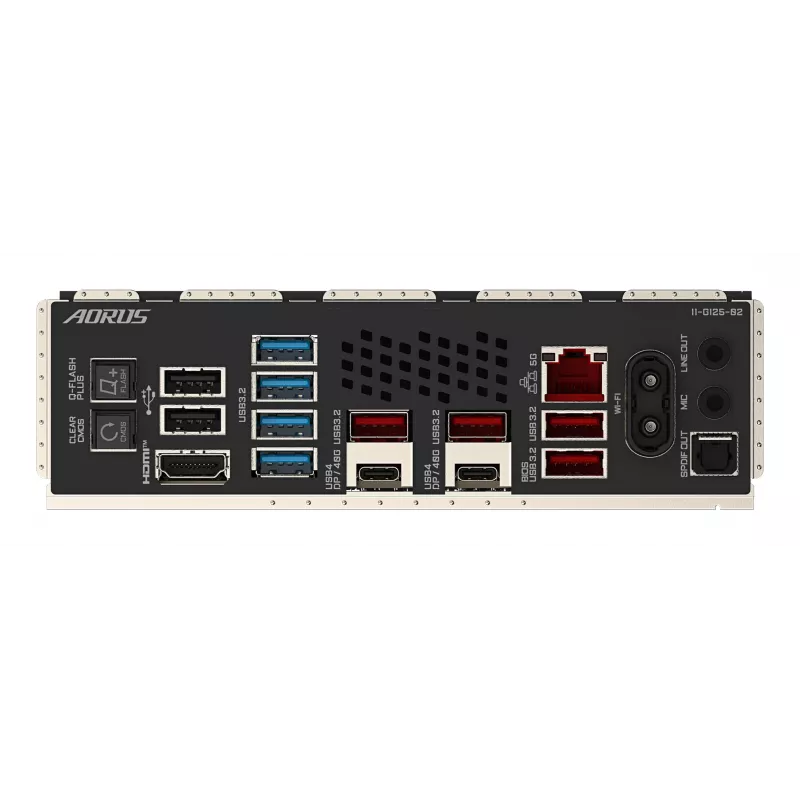

  • Extended Connectivity: HDMI, Sensor Panel Link ( Front HDMI), 2*USB-C DP
  • Fast Networking: 5GbE LAN & Wi-Fi 7 with WIFI EZ-Plug & Directional Antenna
  • AMD Socket AM5 AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series
  • PC ATX AMD X870 Realtek ALC1220 7.1 channels
  • DDR5-SDRAM 4 DIMM Maximum internal memory: 256 GB
  • HDD & SSD M.2, SATA III RAID support Number of storage drives supported: 8
  • BIOS type: UEFI AMI 256 Mbit ACPI version: 5.0 Clear CMOS jumper Clear CMOS button
  • 5 Gigabit Ethernet Wi-Fi Wi-Fi 7 (802.11be) Bluetooth 5.3
Specifications
1st M.2 highest PCI Express generation
5.0
1st M.2 largest key size
25110
2nd M.2 highest PCI Express generation
5.0
2nd M.2 largest key size
22110
3rd M.2 highest PCI Express generation
5.0
3rd M.2 largest key size
22110
4th M.2 highest PCI Express generation
4.0
4th M.2 largest key size
22110
ACPI version
5.0
Antenna included
Yes
ATX Power connector (24-pin)
Yes
Audio chip
Realtek ALC1220
Audio output channels
7.1 channels
Batteries included
Yes
Battery technology
Lithium-Manganese Dioxide (LiMnO2)
Battery type
CR2032
Battery weight
3 g
BIOS memory size
256 Mbit
BIOS type
UEFI AMI
Bluetooth
Yes
Bluetooth version
5.3
Clear CMOS button
Yes
Clear CMOS jumper
Yes
Compatible processor series
AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series
Component for
PC
Country of origin
China
CPU fan connector
Yes
Depth
244 mm
Desktop Management Interface (DMI) version
2.7
DirectX version
12.0
DisplayPort version
1.4
DisplayPorts quantity
0
DVI-D ports quantity
0
ECC сompatibility
ECC & Non-ECC
EPS power connector (8-pin)
Yes
Ethernet interface type
5 Gigabit Ethernet
Ethernet LAN
Yes
Ethernet LAN (RJ-45) ports
1
Front panel audio connector
Yes
Front panel connector
Yes
HDMI ports quantity
1
HDMI version
2.1
Headphone outputs
1
Height
35 mm
LAN controller
Realtek RTL8126
Line-in
Yes
Lithium weight per battery
0.07 g
Maximum internal memory
256 GB
Maximum internal memory per slot
64 GB
Maximum internal memory supported by processor
256 GB
Memory channels
Dual-channel
Memory slots type
DIMM
Motherboard chipset
AMD X870
Motherboard chipset family
AMD
Motherboard form factor
ATX
mSATA ports quantity
0
Number of battery cells
1
Number of chassis fan connectors
6
Number of CPU fan connectors
2
Number of EPS power connectors (8-pin)
2
Number of HDDs supported
4
Number of M.2 (M) slots
4
Number of memory slots
4
Number of RGB LED pin headers
5
Number of SATA connectors
0
Number of SATA II connectors
0
Number of SATA III connectors
4
Number of storage drives supported
8
Number of water pump connectors
2
On-board graphics card
No
Package depth
294 mm
Package height
80 mm
Package weight
2.97 kg
Package width
345 mm
Parallel processing technology support
Not supported
PC health monitoring
Fan, Temperature, Voltage
PCI Express x1 (Gen 3.x) slots
0
PCI Express x1 (Gen 4.x) slots
0
PCI Express x16 (Gen 3.x) slots
1
PCI Express x16 (Gen 4.x) slots
1
PCI Express x16 (Gen 5.x) slots
1
PCI Express x4 (Gen 3.x) slots
0
PCI Express x4 (Gen 4.x) slots
0
PCI Express x4 slots
2
PCI Express x8 (Gen 3.x) slots
0
PCI Express x8 (Gen 4.x) slots
0
PCI Express x8 (Gen 5.x) slots
0
Processor manufacturer
AMD
Processor socket
Socket AM5
Product colour
Black
Products per shipping (inner) case
1 pc(s)
PS/2 ports quantity
0
RAID levels
0, 1, 10
RAID support
Yes
RGB LED pin header
Yes
S/PDIF out port
Yes
Screws included
Yes
Supported memory clock speed (max)
8600 MHz
Supported memory clock speeds
4400,4800,5200,5600,6000,6200,6400,6600,6666,6800,7000,7200,7600,7800,8200,8400,8600 MHz
Supported memory module capacities
1GB, 2GB, 4GB, 8GB, 12GB, 24GB, 32GB
Supported memory types
DDR5-SDRAM
Supported processor sockets
Socket AM5
Supported storage drive interfaces
M.2, SATA III
Supported storage drive types
HDD & SSD
System Management BIOS (SMBIOS) version
2.7
Top Wi-Fi standard
Wi-Fi 7 (802.11be)
TPM connector
Yes
Unbuffered memory
Yes
USB 2.0 connectors
2
USB 2.0 ports quantity
2
USB 3.2 Gen 1 (3.1 Gen 1) connectors
2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
4
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity
0
USB 3.2 Gen 2 (3.1 Gen 2) connectors
0
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity
4
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity
0
USB 3.2 Gen 2x2 connectors
1
USB 3.2 Gen 2x2 Type-C ports quantity
0
USB4 Gen 2x2 ports quantity
2
USB4 Gen 3x2 ports quantity
0
VGA (D-Sub) ports quantity
0
Warranty period
3 year(s)
Weight
2.54 kg
Wi-Fi
Yes
Wi-Fi standards
Wi-Fi 7 (802.11be)
Width
305 mm
WiFi-AP antenna jack
2
Windows operating systems supported
Windows 11 x64
WLAN controller model
Qualcomm QCNCM865

Manual

Open Manual

Leaflet

Open Leaflet
