R3,545
The ASRock B850M Riptide WiFi is a micro ATX motherboard built on the AMD B850 chipset, designed for high-performance computing with Socket AM5 support. It accommodates AMD Ryzen 7000, 8000, and 9000 series processors, offering robust connectivity and advanced memory capabilities for demanding appli... Read More
Stock 1 Code 30196 Brand ASROCK Model 90-MXBS30-A0UAYZ Warranty 3 Years

Shipping & Returns

Estimated delivery Thursday, October 1
You will be kept updated through our detailed tracking system
Payment options
EFTPayFastBank CardSnapScanZapperGoogle PayApple PayMobicredMoreTymePay on Arrival

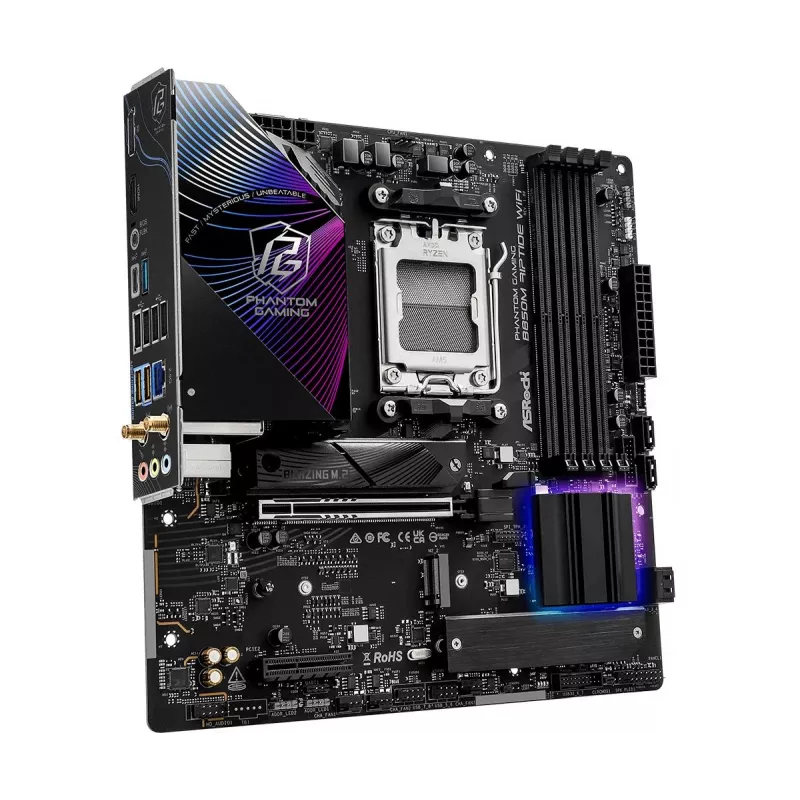

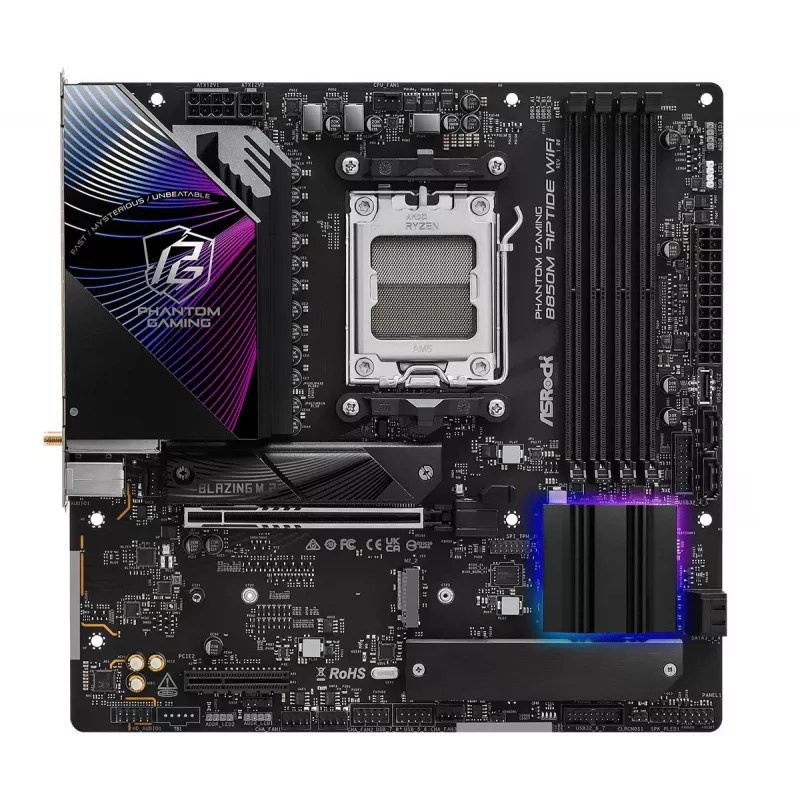

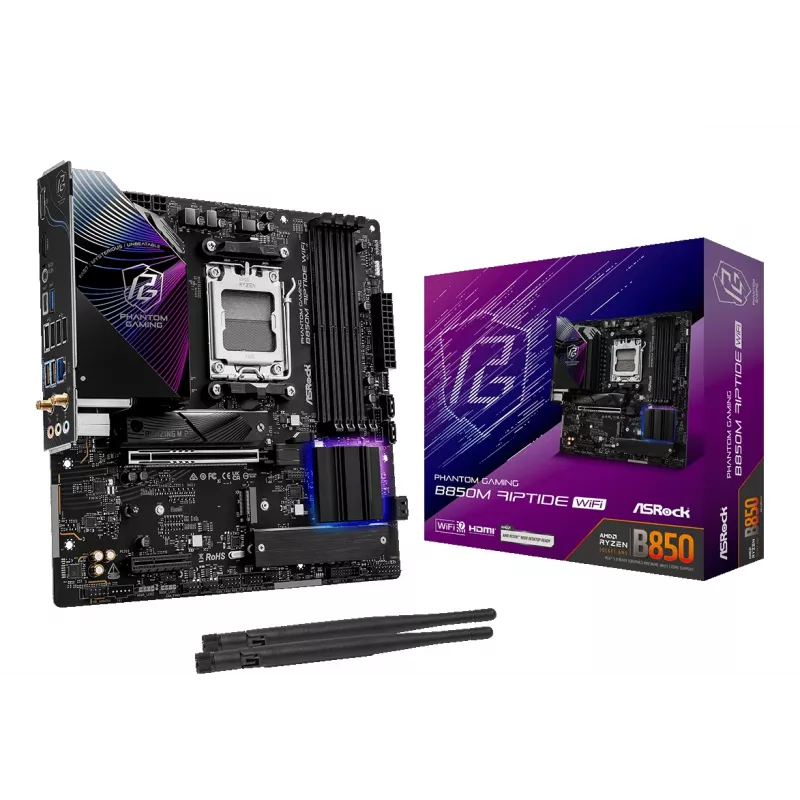

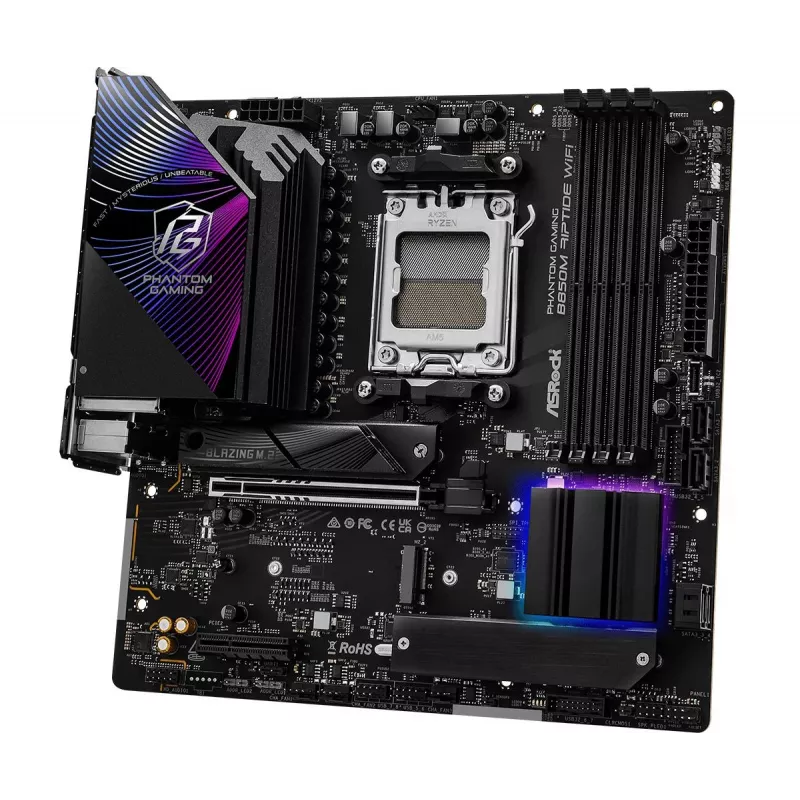

The ASRock B850M Riptide WiFi is a micro ATX motherboard built on the AMD B850 chipset, designed for high-performance computing with Socket AM5 support. It accommodates AMD Ryzen 7000, 8000, and 9000 series processors, offering robust connectivity and advanced memory capabilities for demanding applications.

Key features

  • Supports up to 256 GB of DDR5 memory across four slots, with overclocking support up to DDR5-8200 for exceptional speed.
  • Equipped with one HDMI 2.1 (TMDS/FRL 8G) and one DisplayPort 1.4 with DSC, enabling high-resolution output up to 3840 x 2160 pixels.
  • Features dual M.2 slots: one PCIe 5.0 and two PCIe 4.0, plus four SATA III connectors for flexible storage configurations.
  • Integrated 2.5 Gigabit LAN, Wi-Fi 7, and Bluetooth for fast and reliable wired and wireless networking.

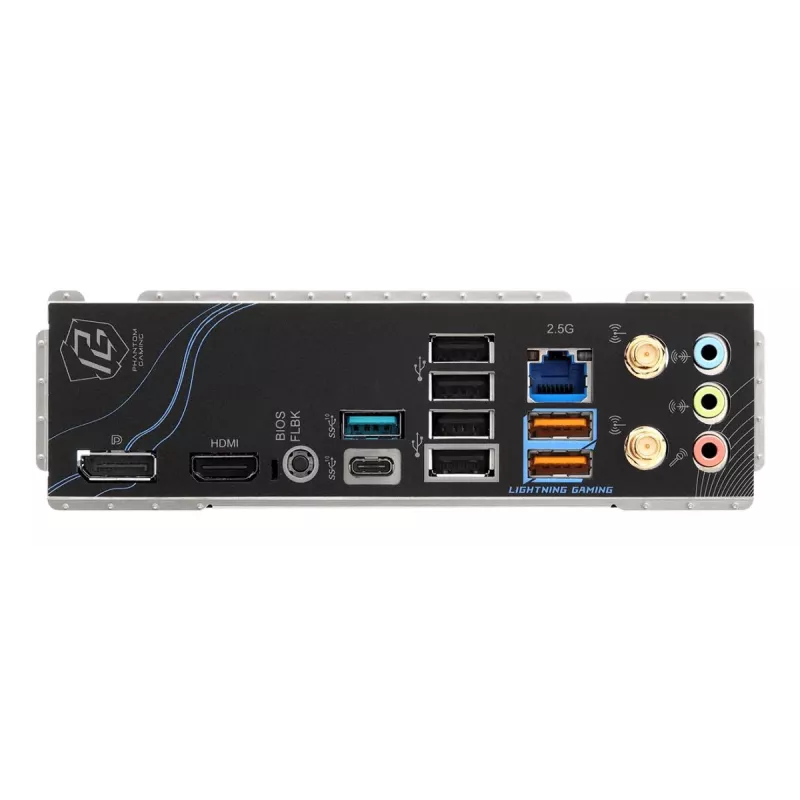

  • Includes multiple USB ports on the rear panel: USB 3.2 Gen2 Type-C, USB 3.2 Gen2, USB 3.2 Gen1, and USB 2.0, along with audio jacks and an antenna connector.
  • Supports RAID levels 0, 1, and 10 for enhanced data management and redundancy.
  • Delivers 8-channel HD Audio for immersive sound quality in gaming and multimedia.
Key Highlights
  • Supports AMD Socket AM5 Ryzen™ 9000, 8000 and 7000 Series Processors
  • 12+2+1 Phase Power Design, Dr.MOS for VCore+SOC+MISC
  • 4 x DDR5 DIMMs, Supports Dual Channel, up to 8000+ (OC)
  • 1 PCIe 5.0 x16, 1 PCIe 4.0 x4
  • Graphics Output Options: 1 HDMI, 1 DisplayPort
  • Realtek ALC1220 7.1 CH HD Audio Codec, Nahimic Audio
  • 1 Blazing M.2 (PCIe Gen5x4), 1 Hyper M.2 (PCIe Gen4x4), 1 M.2 (PCIe Gen4x2), 4 SATA3
  • 2 USB 3.2 Gen2 Type-A+C (Rear), 1 USB 3.2 Gen1 Type-C (Front), 6 USB 3.2 Gen1 (2 Rear, 4 Front), 8 USB 2.0 (4 Rear, 4 Front)
  • Realtek 2.5G LAN
  • 802.11be WiFi 7 +Bluetooth
Specifications
12V power connector
Yes
1st M.2 highest PCI Express generation
5.0
1st M.2 largest key size
2580
2nd M.2 highest PCI Express generation
4.0
2nd M.2 largest key size
2280
3rd M.2 highest PCI Express generation
4.0
3rd M.2 largest key size
2280
Antenna included
Yes
ATX Power connector (24-pin)
Yes
Audio chip
Realtek ALC1220
Audio output channels
7.1 channels
BIOS memory size
256 Mbit
BIOS type
UEFI AMI
Bluetooth
Yes
Bluetooth version
5.4
Cables included
SATA
Certification
FCC, CE, ErP/EuP
Compatible processor series
AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series
Component for
PC
CPU fan connector
Yes
Depth
244 mm
DisplayPort version
1.4
DisplayPorts quantity
1
ECC ?ompatibility
ECC & Non-ECC
EPS power connector (8-pin)
Yes
Ethernet interface type
2.5 Gigabit Ethernet
Ethernet LAN
Yes
Ethernet LAN (RJ-45) ports
1
Front panel audio connector
Yes
HDCP
Yes
HDMI ports quantity
1
HDMI version
2.1
Headphone outputs
3
LAN controller
Dragon RTL8125BG
Line-in
Yes
M.2 standoff included
Yes
Maximum internal memory
256 GB
Maximum resolution
3840 x 2160 pixels
Memory channels
Dual-channel
Memory slots type
DIMM
Microphone in
Yes
Motherboard chipset
AMD B850
Motherboard chipset family
AMD
Motherboard form factor
micro ATX
Number of chassis fan connectors
3
Number of CPU fan connectors
2
Number of EPS power connectors (8-pin)
1
Number of M.2 (M) slots
3
Number of memory slots
4
Number of RGB LED pin headers
1
Number of SATA III connectors
4
Number of storage drives supported
7
Parallel processing technology support
Not supported
PCI Express x16 (Gen 5.x) slots
1
PCI Express x8 (Gen 4.x) slots
1
Processor manufacturer
AMD
Processor socket
Socket AM5
Product colour
Black
RAID levels
0, 1, 10
RAID support
Yes
RGB LED pin header
Yes
Screws included
Yes
Supported memory types
DDR5-SDRAM
Supported processor sockets
Socket AM5
Supported storage drive interfaces
PCI Express 4.0, PCI Express 5.0, SATA III
Supported storage drive types
HDD & SSD
Top Wi-Fi standard
Wi-Fi 7 (802.11be)
TPM connector
Yes
Unbuffered memory
Yes
USB 2.0 connectors
2
USB 2.0 ports quantity
4
USB 3.2 Gen 1 (3.1 Gen 1) connectors
3
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
2
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity
1
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity
1
USB connector type
USB Type-A, USB Type-C
Wi-Fi
Yes
Wi-Fi standards
802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 6E (802.11ax), Wi-Fi 7 (802.11be)
Width
244 mm
WiFi-AP antenna jack
2
Windows operating systems supported
Windows 10 x64, Windows 11 x64
