Managed Switch LevelOne Hilbert 6-Port Industrial Gigabit Smart Lite Switch

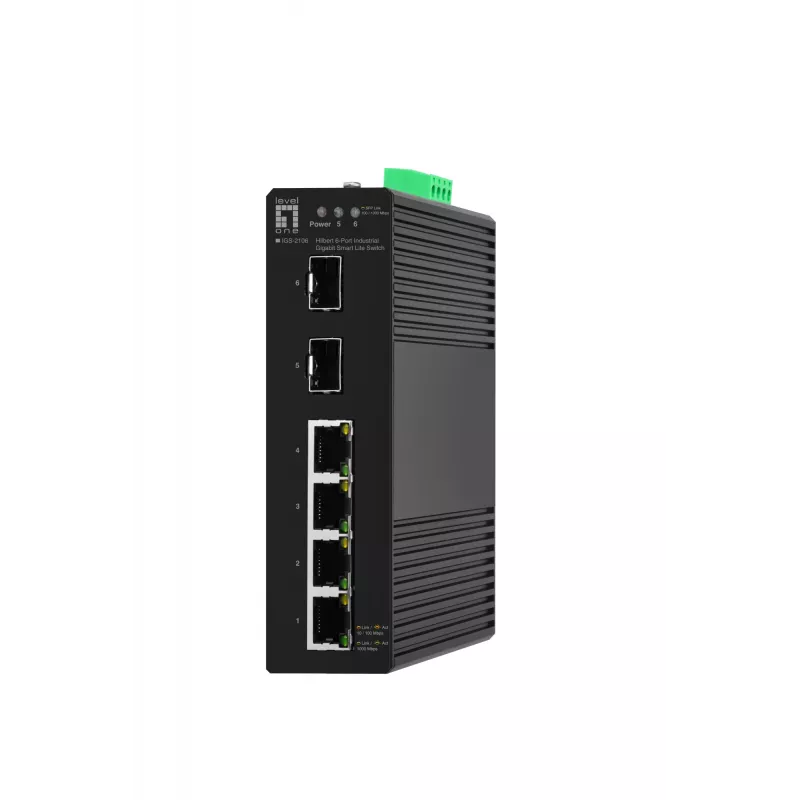

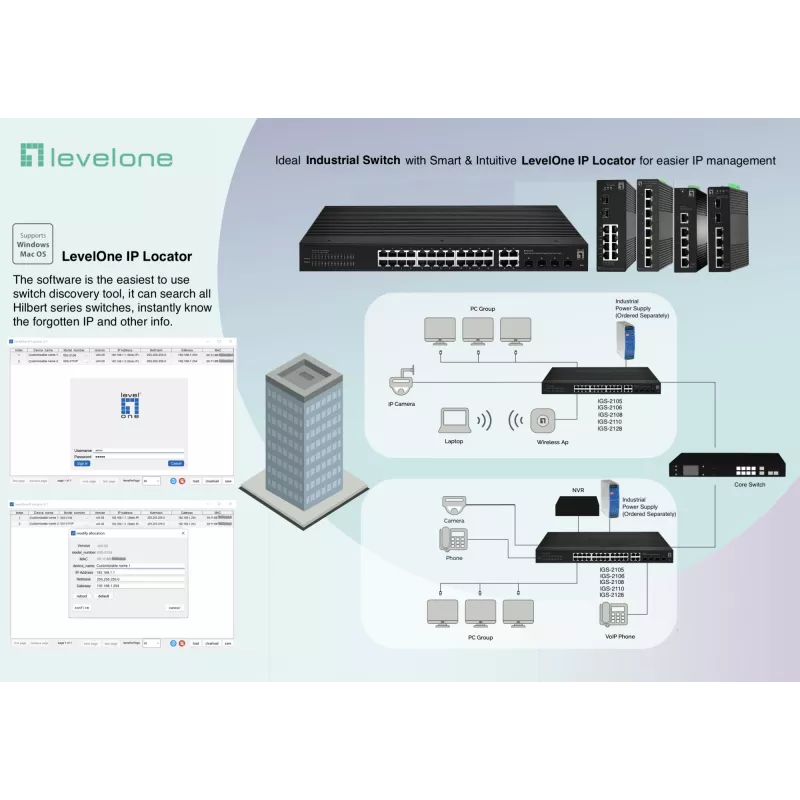

The LevelOne IGS-2106 Hilbert Industrial gigabit smart lite switch is a managed 6‑port industrial switch designed for reliable Ethernet connectivity in industrial and enterprise environments. It offers four 10/100/1000 RJ‑45 ports and two Gigabit SFP ports, a switching capacity of 12 Gbit/s and a MAC address table of 2000 entries. The compact, black housing supports DIN‑rail mounting and has visible status LEDs for simple link and activity monitoring. The switch is compatible with LevelOne IP Locator discovery software for quick identification of device IP information on Windows and macOS.

Advantages

The IGS-2106 combines copper and fiber connectivity in a single managed switch, enabling flexible deployment across different network segments. Its industrial DIN-rail form factor and visible LEDs simplify installation and on-site diagnostics. Support for common IEEE networking standards and energy-efficient Ethernet (IEEE 802.3az) helps ensure interoperability and reduced power usage where supported. Managed features provide improved traffic control and lower total cost of ownership for business and industrial networks.

Suitable for

• Small to medium industrial networks requiring mixed copper and fiber ports
• Enterprise edge deployments where managed features and DIN-rail mounting are needed
• Applications that need compact, rack‑adjacent or cabinet‑mounted switches with visible link status

Key specifications

• Ports: 4 × Gigabit RJ-45 (10/100/1000), 2 × Gigabit SFP
• Switching capacity: 12 Gbit/s
• MAC address table: 2000 entries
• Switch type: Managed (Smart Lite)
• Supported standards: IEEE 802.3, 802.3ab, 802.3z, 802.3x, 802.3az, 802.1D, 802.1Q, 802.1p, 802.1w
• Full duplex support

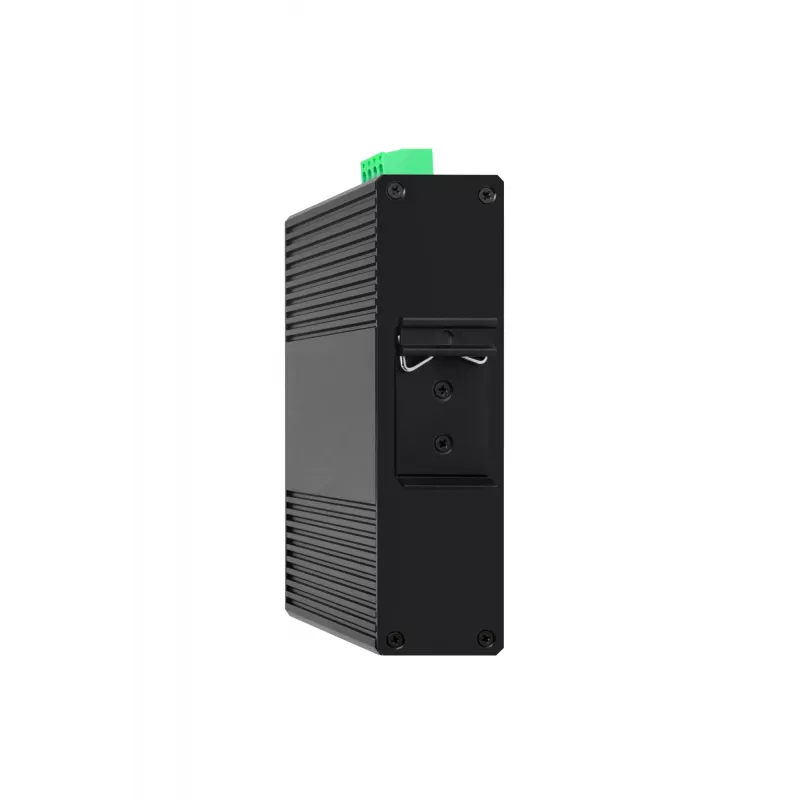

• Mounting: DIN‑rail
• Colour: Black
• Weight: 0.43 kg

How to use

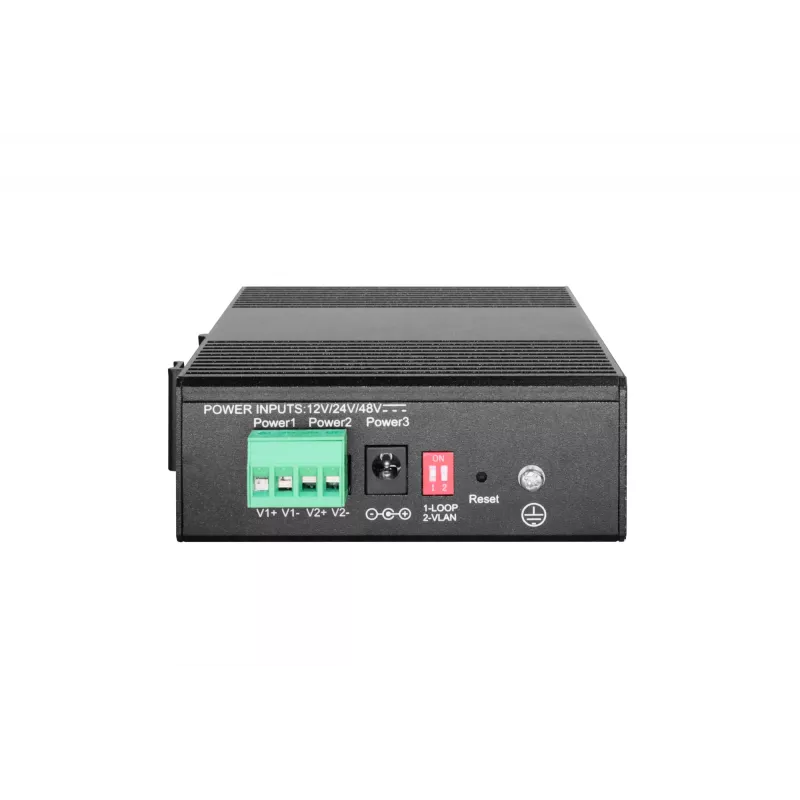

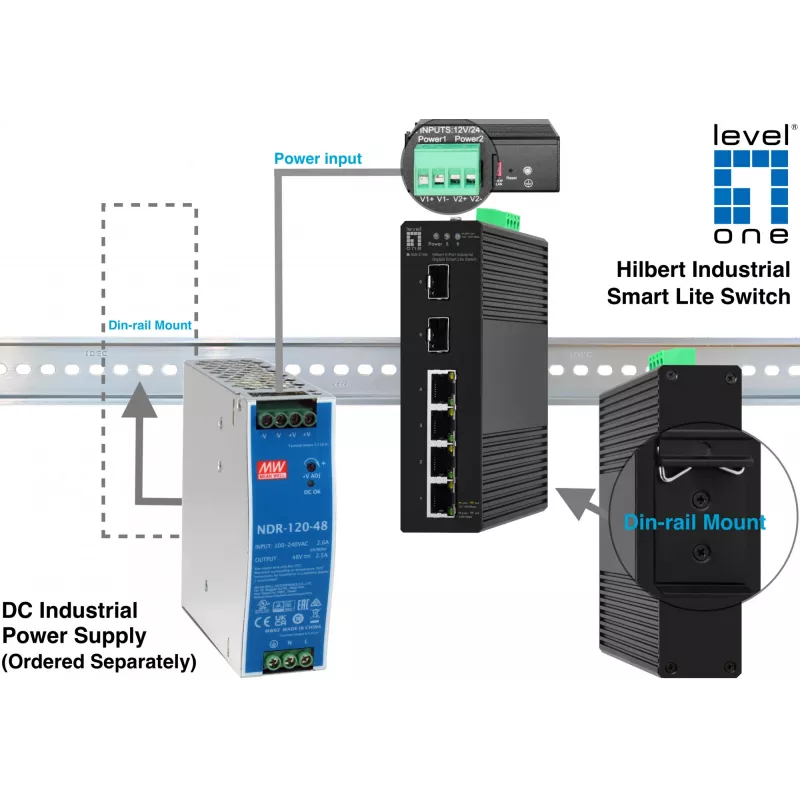

Install the switch on a DIN‑rail and connect power according to the product manual. Use the RJ‑45 ports for copper Ethernet connections and the SFP ports for fiber modules as required by your network. Access the managed features using the supported management interface and, if needed, locate the device on the network with LevelOne IP Locator on a Windows or macOS system to obtain IP information and perform initial configuration.

Recommendations

For stable operation in industrial environments, mount the switch in a protected enclosure if exposed to dust or moisture and use appropriate SFP modules rated for your fiber type and distance. Verify compatibility with existing network equipment and use the IEEE standards listed to configure VLANs, QoS, and energy‑saving features as needed.
