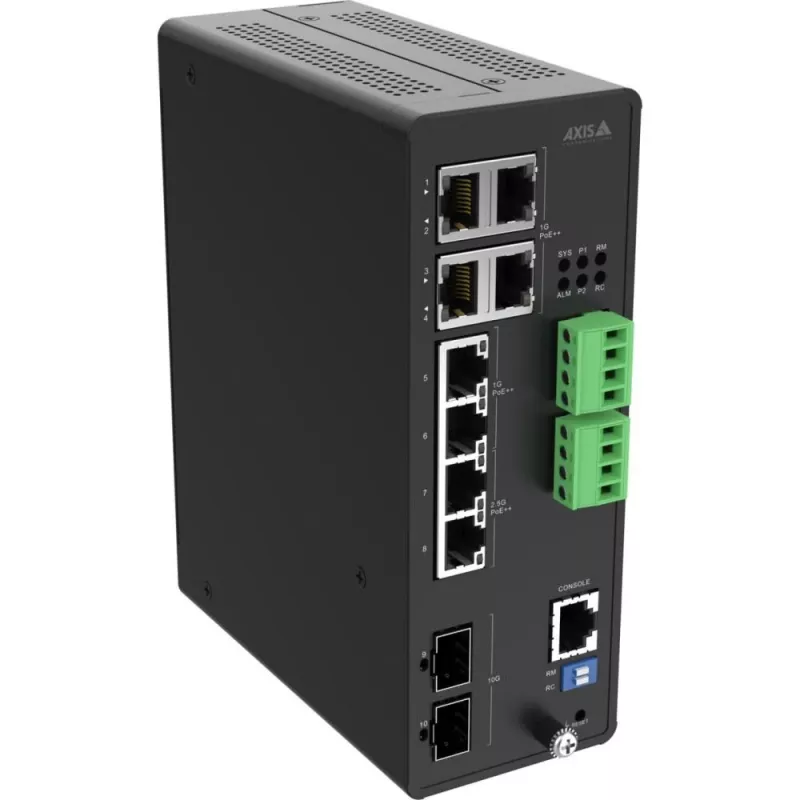

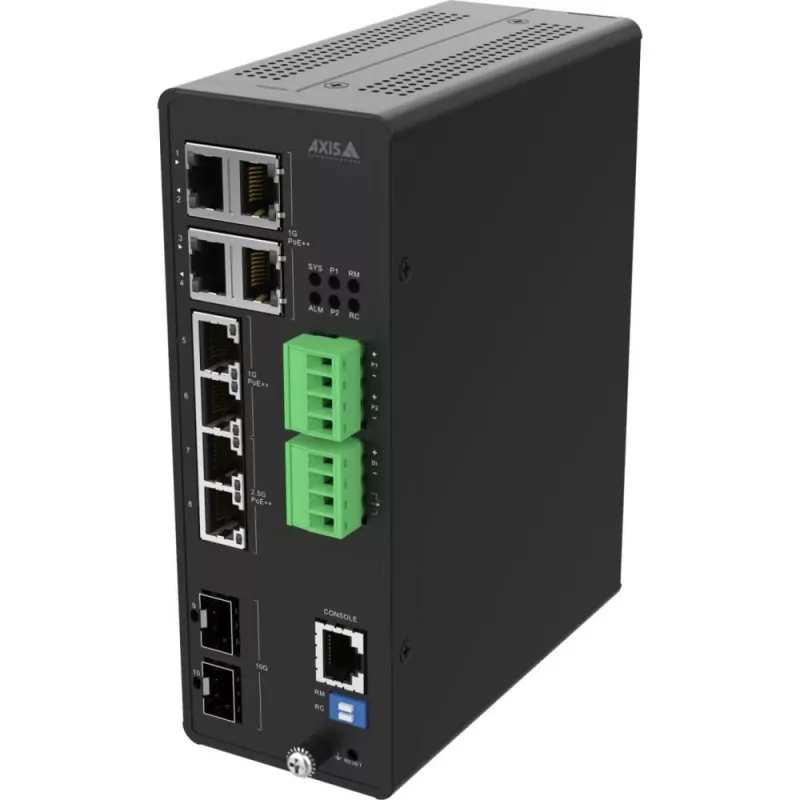

Managed Switch Axis 02621-001 10G Ethernet 8 Ports PoE

This rugged 8-port managed switch from AXIS is built for demanding installations and high-performance networks. It combines eight 10G Ethernet RJ-45 ports with two SFP+ slots for fiber connectivity, supports PoE up to IEEE 802.3bt (PoE++), and is designed to operate in wide temperature ranges and resist shock and vibration. The device integrates with the Axis interface featuring a graphical topology view for straightforward configuration and monitoring.

Advantages

Supports up to 90 W per port (PoE++ IEEE 802.3bt) with a total power budget of 480 W, enabling power-hungry devices to be connected directly to the switch. Dual 10G-capable connectivity options (8 x 10G RJ-45 and 2 x SFP+) allow flexible uplink and long-distance fiber links. Rugged design tolerates shock, vibration and extreme temperatures from -40 °C to 60 °C, making it suitable for harsh environments. Managed switch features and industry-standard IEEE networking protocols provide advanced security, VLAN and traffic control capabilities.

Suitable for

• Surveillance networks with PoE cameras and edge devices
• Industrial and outdoor network installations exposed to vibration or extreme temperatures
• High-bandwidth aggregation and uplink links using 10G Ethernet or SFP+ fiber
• Managed network segments requiring VLAN, access control and monitoring

Key specifications

• Switch type: Managed
• Ports: 8 × 10G RJ-45 Ethernet ports
• Additional slots: 2 × SFP+ (10G) for fiber connectivity
• PoE: Supports IEEE 802.3af/at/bt (up to 90 W per port), total PoE budget 480 W
• Switching capacity: 62 Gbit/s
• Operating temperature: -40 °C to 60 °C (-40 °F to 140 °F)
• Mechanical tolerance: designed for shock and vibration resistance
• Networking standards: IEEE 802.1Q, IEEE 802.1X and related Ethernet standards
• Color: Black
• Weight: 0.892 kg

How to use

Connect power and network cables to the appropriate RJ-45 ports and insert SFP+ modules for fiber uplinks as required. Configure VLANs, PoE settings and security policies through the Axis management interface; use the graphical topology view to discover and map connected devices for easier monitoring. Deploy the switch in a suitably ventilated location within the specified temperature range and secure it mechanically to minimize vibration exposure as needed.

Recommendations

For reliable PoE delivery, calculate total power draw of connected devices to ensure it does not exceed the 480 W budget. When using fiber uplinks, choose SFP+ modules compatible with the switch and your fiber type. For installations in harsh environments, mount the switch according to manufacturer guidelines and use appropriate surge protection and cable strain relief.
