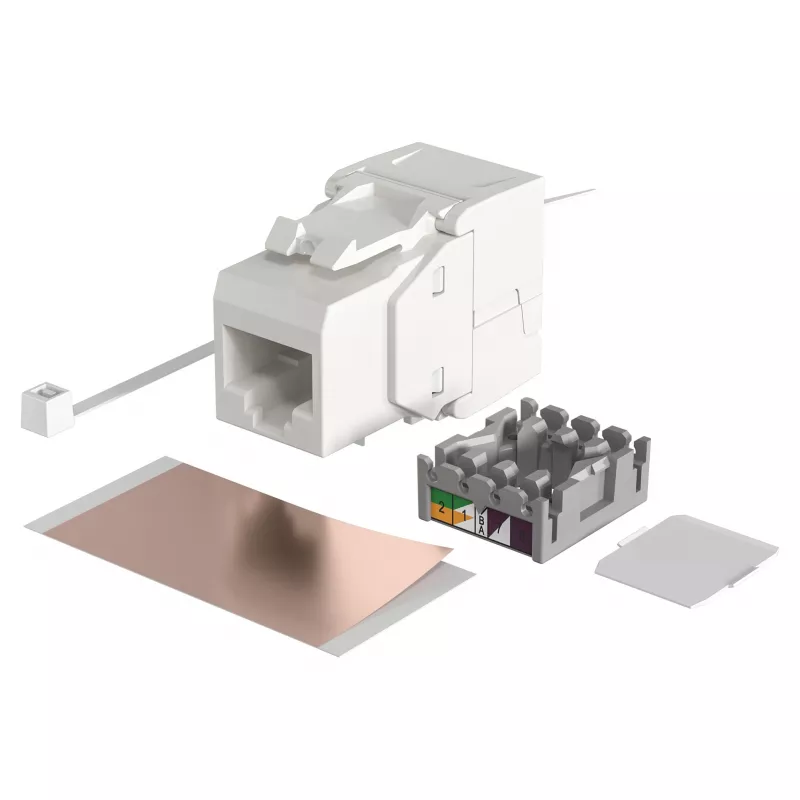

Modular RJ-45 Input Module EFB Elektronik ECOLAN E-20080, white

The Modular RJ-45 Input Module EFB Elektronik ECOLAN E-20080 in white is a compact modular network interface designed for ECOLAN frames. It provides a single RJ-45 Ethernet connector in a standardized form factor for replacing or expanding existing ECOLAN installations. The module is intended for environments where a neat, serviceable wall- or frame-mounted network connection is required and where compatibility with ECOLAN mounting systems is needed.

Advantages

This modular RJ-45 input module offers a space-saving design and straightforward mechanical compatibility with ECOLAN frames, enabling quick replacement or expansion without extensive wiring changes. The white finish maintains a neutral appearance in commercial and industrial interiors. The module is engineered for reliable Ethernet contact and simple access for maintenance or cable changes.

Suitable for

Key specifications

How to use

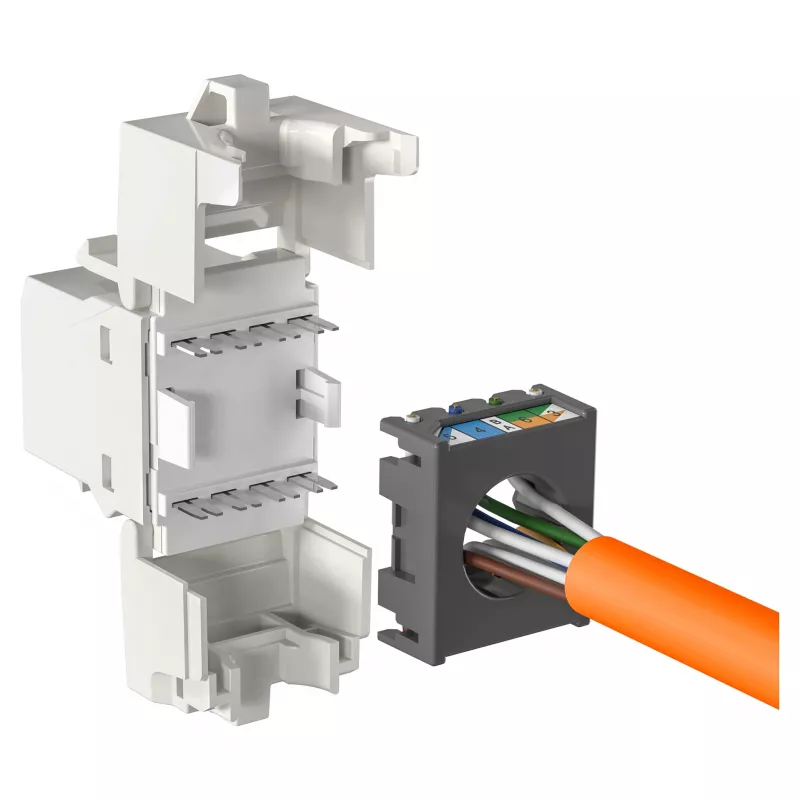

Turn off network equipment or isolate the cable before replacing or installing the module. Insert the modular RJ-45 input module into an ECOLAN-compatible frame opening until it snaps or secures into place, then fasten any required retaining screws per the frame instructions. Terminate or connect the Ethernet cable to the RJ-45 connector, verify correct seating, and restore network power. Test link and data transmission using network diagnostics or a connected device to ensure proper operation.

Recommendations

The module is intended for use only in compatible ECOLAN frames and with appropriate Ethernet cabling; ensure cables and connectors meet network category and environmental requirements for your installation. For installations in industrial or high-interference environments, use shielded cabling and proper grounding. Perform all installation work in accordance with local safety regulations and, if necessary, consult a qualified technician.
