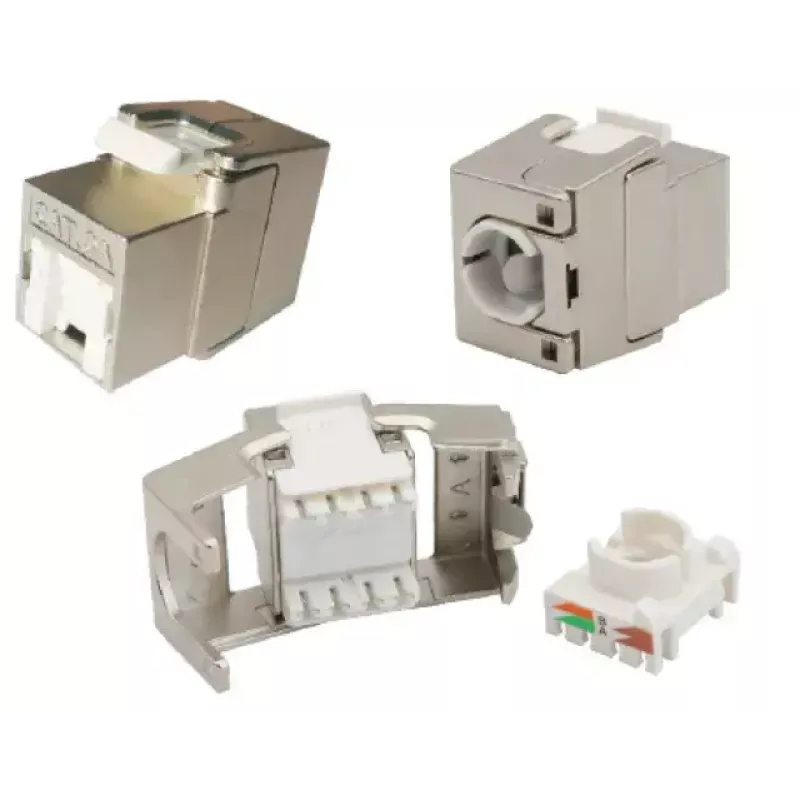

Keystone module EFB Elektronik E-20093, flat construction, silver, RJ-45 connector

The EFB Elektronik E-20093 keystone module is a flat, short-body RJ-45 insert with a silver finish designed for installation in compatible keystone wall plates and patch panels. Supplied as a single modular unit, it provides a fully shielded network port with performance characteristics suitable for high-speed Ethernet installations, including 10 Gigabit Ethernet. Its reduced installation depth makes it appropriate for flush boxes and other limited-space mounting locations.

Advantages

This keystone module offers fully shielded construction to support stable data transmission and to reduce electromagnetic interference in structured cabling. The short installation depth of 30.5 mm enables mounting where space is restricted. The module is designed for quick, tool-light assembly, allowing fast installation without the need for special termination tools. The silver finish provides a neutral appearance that integrates with most wall plates and panels.

Suitable for

• 10 Gigabit Ethernet and other high-speed LAN connections
• Residential and commercial wall plate installations with limited depth
• Patching panels where space-saving short-body modules are required
• Shielded network cabling environments where EMI reduction is important

Key specifications

• Connector type: RJ-45, single port
• Construction: flat / short-body modular insert
• Shielding: fully shielded design for improved EMI protection
• Finish: silver-colored housing
• Installation depth: 30.5 mm (short installation depth for flush or confined spaces)
• Performance: suitable for 10 Gigabit Ethernet applications
• Packaging: one module per pack

How to use

Insert the EFB Elektronik short-body RJ-45 keystone module into a compatible keystone wall plate or patch panel until it snaps into place. Route and terminate the network cable according to standard cabling practices for shielded twisted pair (STP) or compatible cable types, ensuring the shield continuity is maintained if required by the installation. After termination, secure the cable and test the port with appropriate network testers to verify connectivity and performance up to the intended Ethernet speed.

Recommendations

Use this fully shielded keystone module in installations that require high data throughput and EMI protection. For best results with 10 Gigabit Ethernet, follow category and installation standards for cabling and shielding, perform proper cable termination, and verify link performance with a certified tester. Avoid excessive bending of cables near the module to maintain signal integrity.
