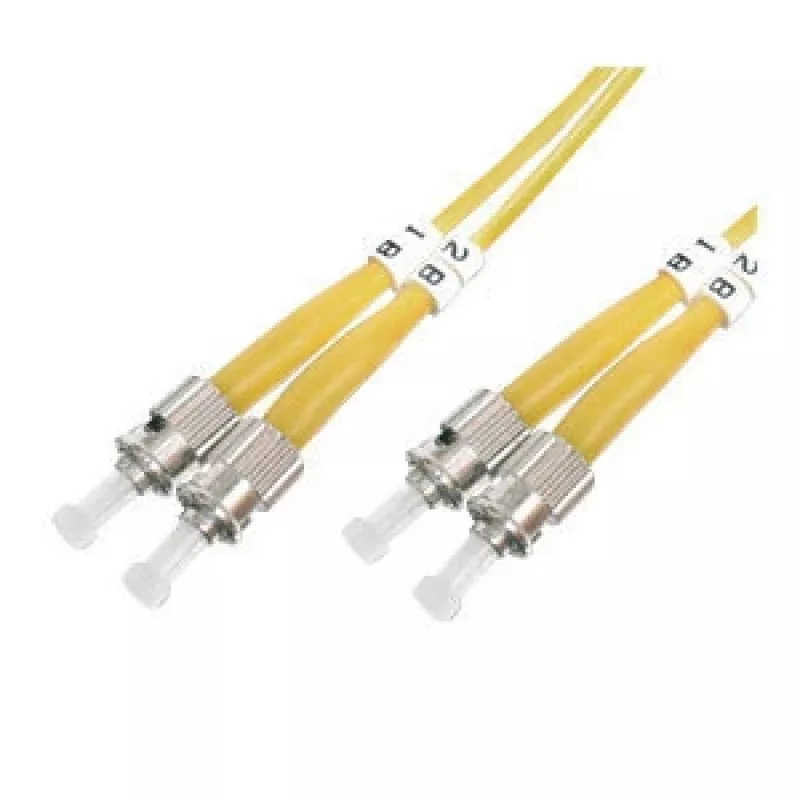

LOGON LogiLink 3m OS2 Single-mode ST to ST Fiber Optic Patch Cable Yellow

The LOGON LogiLink AL9STST03I is a high-quality 3-meter single-mode fiber optic patch cable designed for reliable, high-speed data transmission in data centers, LANs, SANs, and telecommunications networks. Featuring ST to ST connectors with PC polish and a durable LSZH jacket, this cable ensures low insertion loss and high return loss for optimal performance.

Advantages

This fiber optic cable offers superior signal integrity with minimal attenuation, making it ideal for long-distance and high-bandwidth applications. The LSZH jacket provides enhanced safety in enclosed spaces by reducing toxic and corrosive gas emissions in case of fire. Its simplex design and yellow color allow for easy identification and installation.

Suitable for

• Data center cabling infrastructure
• Local Area Networks (LAN) and Storage Area Networks (SAN)
• Telecommunications and fiber-to-the-x (FTTx) deployments
• High-speed backbone connections

Key specifications

• Cable Type: Fiber Optic Patch Cable
• Fiber Type: Single-mode (OS2)
• Core/Cladding Diameter: 9/125 µm
• Connector Type: ST to ST
• Connector Polish: PC (Physical Contact)
• Cable Length: 3 m
• Cable Structure: Simplex
• Number of Fibers: 1
• Cable Color: Yellow
• Jacket Material: LSZH (Low Smoke Zero Halogen)
• Cable Diameter: 3.0 mm
• Insertion Loss: ≤ 0.3 dB
• Return Loss: ≥ 50 dB
• Operating Temperature: -20°C to 70°C
• Storage Temperature: -40°C to 85°C
• Minimum Bend Radius (Installation): 30 mm
• Minimum Bend Radius (Long Term): 10 mm
• Compliance: RoHS, REACH

Recommendations

For optimal performance, ensure connectors are clean before installation. This cable is compatible with all standard ST-terminated equipment. Suitable for indoor use only.
