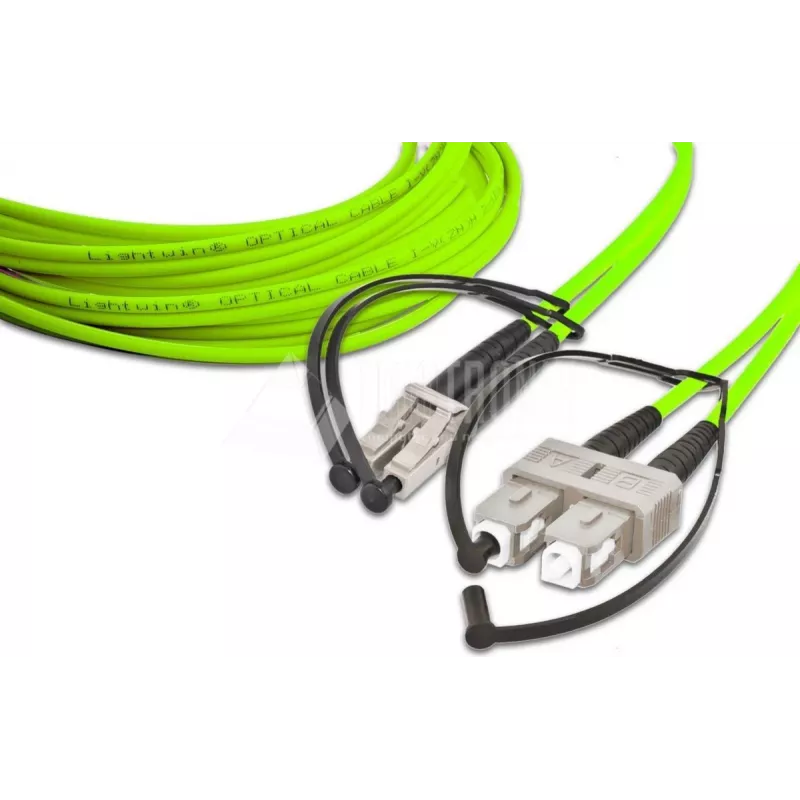

Lightwin LDP-50 LC-SC 2.0 OM5 Duplex Multimode Fiber Patch Cable, 1m, Lime Green LSZH

Fiber optic patch cable with LC to SC duplex connectors, engineered on OM5 wideband multimode fiber to support 40/100/200/400 Gigabit Ethernet over short-reach data center links. The lime green LSZH jacket and 2.0 mm diameter combine flexibility with low smoke and zero halogen safety, making it ideal for high-density patching in enterprise and hyperscale environments.

Advantages

OM5 wideband multimode fiber delivers extended reach and higher bandwidth at 850 nm and 953 nm compared to OM4, enabling SWDM (shortwave wavelength division multiplexing) for up to four wavelengths on a single pair. Duplex LC and SC connectors feature precision ceramic ferrules with typical insertion loss below 0.3 dB and return loss above 30 dB, ensuring stable, low-loss connections. The LSZH jacket emits minimal smoke and no halogen gases in case of fire, meeting strict safety regulations for indoor installations. The 2.0 mm diameter and lime green color allow easy identification and routing in dense cable trays.

Suitable for

• Data center spine-leaf architectures requiring 40G, 100G, 200G, or 400G Ethernet over multimode fiber
• High-speed server and storage area network (SAN) connections
• Telecommunications rooms and campus backbone links
• Environments with strict fire safety and low-smoke requirements, such as hospitals, airports, and commercial buildings
• Patch panels, switches, and optical distribution frames with LC or SC duplex ports

Key specifications

• Connector A: LC Duplex (UPC polish)
• Connector B: SC Duplex (UPC polish)
• Fiber type: OM5 wideband multimode (TIA-492AAAE, IEC 60793-2-10 Type A1a.4)
• Number of fibers: 2 (duplex)
• Cable length: 1 meter
• Cable diameter: 2.0 mm
• Jacket material: LSZH (Low Smoke Zero Halogen)
• Jacket color: Lime green
• Insertion loss (typical): < 0.3 dB
• Return loss (typical): > 30 dB
• Wavelength support: 850 nm, 953 nm
• Bandwidth (850 nm): 4700 MHz*km
• Bandwidth (953 nm): 2470 MHz*km
• Supported Ethernet speeds: 40GbE, 100GbE, 200GbE, 400GbE
• Operating temperature: -20°C to +70°C

Recommendations

For optimal performance, pair this cable with OM5-compatible transceivers and patch panels. Keep bend radius above 15 mm during installation to avoid microbending losses. Use dust caps on unused connectors to maintain cleanliness. Verify polarity before connecting to avoid link issues.
