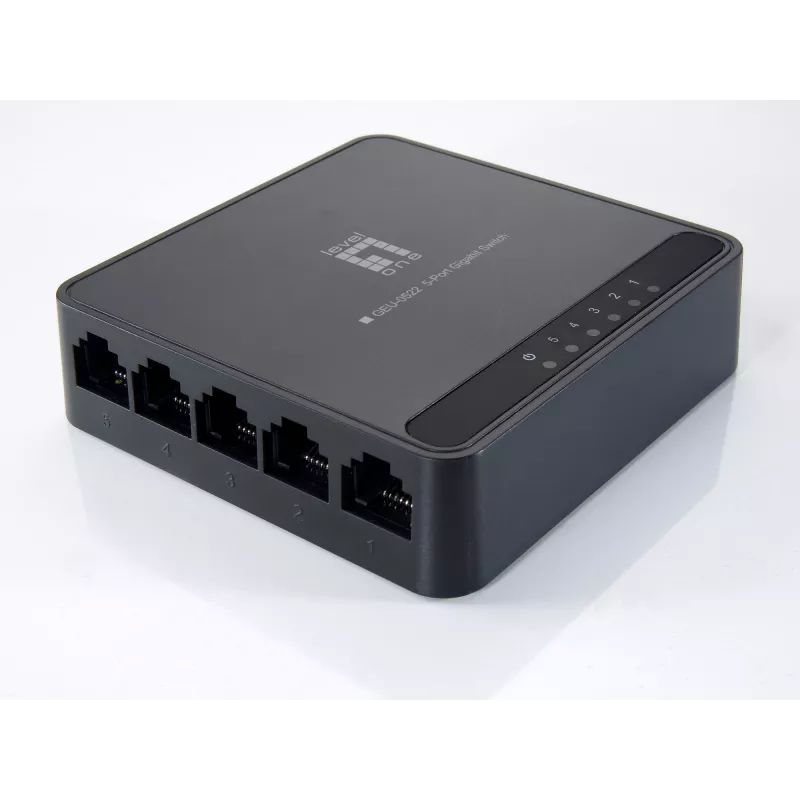

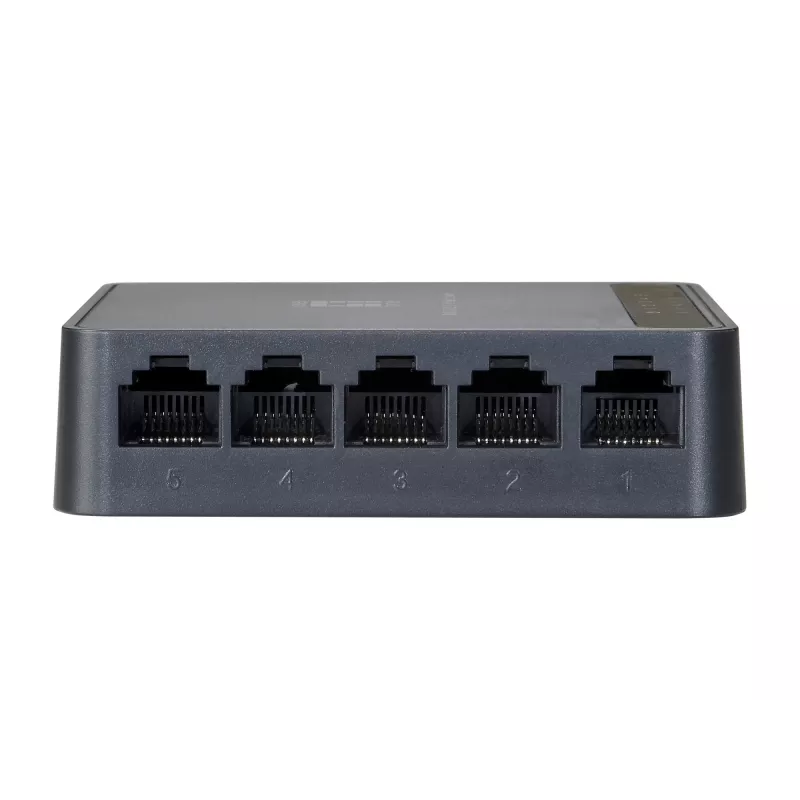

LevelOne 5-Port Gigabit Switch, Gigabit Ethernet (10/100/1000), Full duplex

LevelOne 5-Port Gigabit Switch, Gigabit Ethernet (10/100/1000), Full duplex
LevelOne 5-Port Gigabit Switch, Gigabit Ethernet (10/100/1000), Full duplex
LevelOne 5-Port Gigabit Switch, Gigabit Ethernet (10/100/1000), Full duplex
LevelOne 5-Port Gigabit Switch, Gigabit Ethernet (10/100/1000), Full duplex
LevelOne 5-Port Gigabit Switch, Gigabit Ethernet (10/100/1000), Full duplex
LevelOne 5-Port Gigabit Switch, Gigabit Ethernet (10/100/1000), Full duplex
LevelOne 5-Port Gigabit Switch, Gigabit Ethernet (10/100/1000), Full duplex
LevelOne 5-Port Gigabit Switch, Gigabit Ethernet (10/100/1000), Full duplex
R567
+R1 store credit
PDF
Add to Cart
Add to Wish List Compare this Product
PDF
Stock 3696 Code 111245 Model GEU-0522 Warranty 2 Years
DepartmentNetworking EquipmentCategoryNetwork SwitchesLEVELONEBrandLEVELONE

Shipping & Returns

Estimated delivery Tuesday, November 24
You will be kept updated through our detailed tracking system
Payment options
EFTPayFastBank CardSnapScanZapperGoogle PayApple PayMobicredMoreTymePay on Arrival

Ask a question – the AI assistant answers instantly.

Description

The LevelOne GEU-0522 is a wire-speed, non-blocking networking device that provides 5 ports 10/100/1000Mbps Ethernet connections. All ports support auto-negotiation and auto-MDI/MDIX sensing, eliminating the need for crossover cables or Uplink Ports. Each port can be used as general network port or as connecting port into a router, server, hub or another network switch.

LevelOne 5-Port Gigabit Switch. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 5. Full duplex. MAC address table: 1000 entries, Switching capacity: 10 Gbit/s. Networking standards: IEEE 802.3, IEEE 802.3ab, IEEE 802.3az, IEEE 802.3u

Key Highlights
  • 1000Mbps full-duplex, 10/100Mbps full/half-duplex, auto-negotiation, auto-MDI/MDIX
  • Supports 4K MAC address auto-learning and auto-aging
  • Quick and easy installation
  • Minimize carbon footprint with advanced energy efficient technology (IEEE 802.3az)
  • Package Contents
  • Basic switching RJ-45 Ethernet ports quantity: 5
  • 10BASE-T, 100BASE-T, 1000BASE-T
  • MAC address table: 1000 entries Switching capacity: 10 Gbit/s

Specifications

Specifications
10G support
No
AC adapter included
Yes
Auto MDI/MDI-X
Yes
Auto-negotiation
Yes
Basic switching RJ-45 Ethernet ports quantity
5
Basic switching RJ-45 Ethernet ports type
Gigabit Ethernet (10/100/1000)
Buffer size
64 KB
Certification
CE, FCC
Copper ethernet cabling technology
10BASE-T, 100BASE-T, 1000BASE-T
Country of origin
China
Depth
23 mm
Full duplex
Yes
Harmonized System (HS) code
85176990
Height
89 mm
Input current
0.6 A
Input voltage
5 V
Installed SFP modules quantity
0
Installed SFP+ modules quantity
0
Jumbo frames
9000
Jumbo frames support
Yes
LED indicators
Activity, Link, Power
MAC address auto-aging supported
Yes
MAC address auto-learning supported
Yes
MAC address table
1000 entries
Master (outer) case gross weight
10.2 kg
Master (outer) case height
516 mm
Master (outer) case length
191 mm
Master (outer) case width
495 mm
Networking standards
IEEE 802.3, IEEE 802.3ab, IEEE 802.3az, IEEE 802.3u
Operating relative humidity (H-H)
10 - 90%
Operating temperature (T-T)
0 - 50 °C
Package depth
82 mm
Package height
98 mm
Package type
Box
Package weight
184 g
Package width
95 mm
Packet forwarding rate (1 Gbps)
1488100 pps
Packet forwarding rate (10 Mbps)
14880 pps
Packet forwarding rate (100 Mbps)
148810 pps
Power over Ethernet (PoE)
No
Product colour
Black
Products per master (outer) case
50 pc(s)
Quick start guide
Yes
Stackable
No
Storage relative humidity (H-H)
5 - 90%
Storage temperature (T-T)
-40 - 70 °C
Store-and-forward
Yes
Switching capacity
10 Gbit/s
Weight
71.4 g
Width
86 mm
