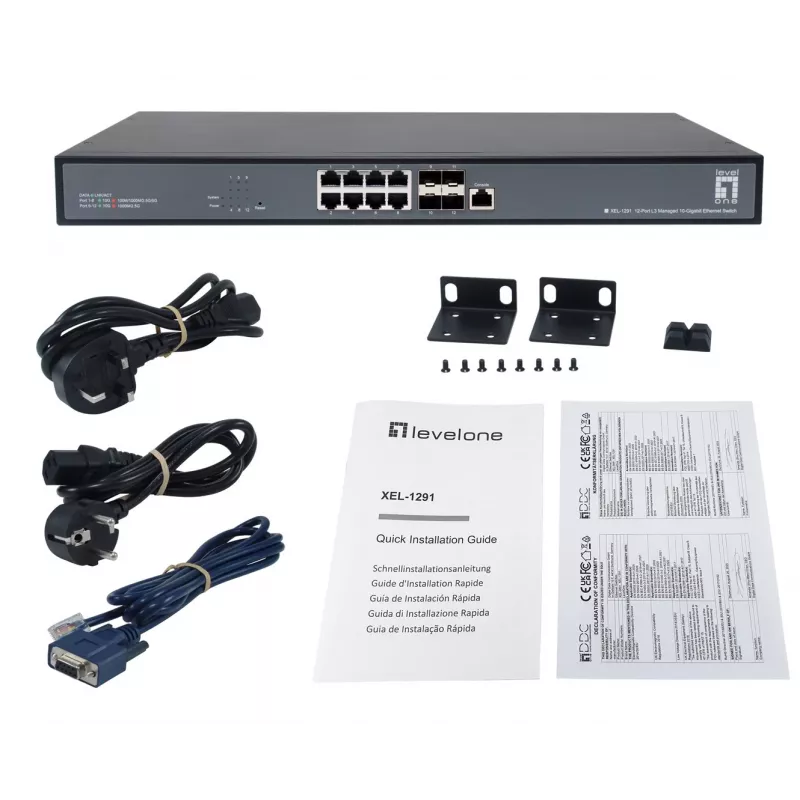

LevelOne 12-Port L3 Managed 10-Gigabit Switch, 8 x 1G/2.5G/5G/10G RJ45, 4 x 1G/2.5G/10G SFP+ Uplinks, 240Gbps Non-Blocking Fabric, 19-Inch Rackmount

LevelOne 12-Port L3 Managed 10-Gigabit Switch, 8 x 1G/2.5G/5G/10G RJ45, 4 x 1G/2.5G/10G SFP+ Uplinks, 240Gbps Non-Blocking Fabric, 19-Inch Rackmount
LevelOne 12-Port L3 Managed 10-Gigabit Switch, 8 x 1G/2.5G/5G/10G RJ45, 4 x 1G/2.5G/10G SFP+ Uplinks, 240Gbps Non-Blocking Fabric, 19-Inch Rackmount
LevelOne 12-Port L3 Managed 10-Gigabit Switch, 8 x 1G/2.5G/5G/10G RJ45, 4 x 1G/2.5G/10G SFP+ Uplinks, 240Gbps Non-Blocking Fabric, 19-Inch Rackmount
LevelOne 12-Port L3 Managed 10-Gigabit Switch, 8 x 1G/2.5G/5G/10G RJ45, 4 x 1G/2.5G/10G SFP+ Uplinks, 240Gbps Non-Blocking Fabric, 19-Inch Rackmount
LevelOne 12-Port L3 Managed 10-Gigabit Switch, 8 x 1G/2.5G/5G/10G RJ45, 4 x 1G/2.5G/10G SFP+ Uplinks, 240Gbps Non-Blocking Fabric, 19-Inch Rackmount
LevelOne 12-Port L3 Managed 10-Gigabit Switch, 8 x 1G/2.5G/5G/10G RJ45, 4 x 1G/2.5G/10G SFP+ Uplinks, 240Gbps Non-Blocking Fabric, 19-Inch Rackmount
LevelOne 12-Port L3 Managed 10-Gigabit Switch, 8 x 1G/2.5G/5G/10G RJ45, 4 x 1G/2.5G/10G SFP+ Uplinks, 240Gbps Non-Blocking Fabric, 19-Inch Rackmount
LevelOne 12-Port L3 Managed 10-Gigabit Switch, 8 x 1G/2.5G/5G/10G RJ45, 4 x 1G/2.5G/10G SFP+ Uplinks, 240Gbps Non-Blocking Fabric, 19-Inch Rackmount
LevelOne 12-Port L3 Managed 10-Gigabit Switch, 8 x 1G/2.5G/5G/10G RJ45, 4 x 1G/2.5G/10G SFP+ Uplinks, 240Gbps Non-Blocking Fabric, 19-Inch Rackmount
LevelOne 12-Port L3 Managed 10-Gigabit Switch, 8 x 1G/2.5G/5G/10G RJ45, 4 x 1G/2.5G/10G SFP+ Uplinks, 240Gbps Non-Blocking Fabric, 19-Inch Rackmount
LevelOne 12-Port L3 Managed 10-Gigabit Switch, 8 x 1G/2.5G/5G/10G RJ45, 4 x 1G/2.5G/10G SFP+ Uplinks, 240Gbps Non-Blocking Fabric, 19-Inch Rackmount
LevelOne 12-Port L3 Managed 10-Gigabit Switch, 8 x 1G/2.5G/5G/10G RJ45, 4 x 1G/2.5G/10G SFP+ Uplinks, 240Gbps Non-Blocking Fabric, 19-Inch Rackmount
R17,452
The LevelOne 12-Port L3 Managed 10-Gigabit Switch (XEL-1291) delivers high-performance Layer 3 switching with 8 x 1G/2.5G/5G/10GBASE-T RJ45 ports and 4 x 1G/2.5G/10GBASE-X SFP+ uplinks, providing a non-blocking switching capacity of 240 Gbps. Designed for demanding enterprise networks, this 1U rackm... Read More
Stock 49 Code 2724887 Brand LEVELONE Model 569821 Warranty 2 Years

Shipping & Returns

Estimated delivery Monday, October 5
You will be kept updated through our detailed tracking system
Payment options
EFTPayFastBank CardSnapScanZapperGoogle PayApple PayMobicredMoreTymePay on Arrival

The LevelOne 12-Port L3 Managed 10-Gigabit Switch (XEL-1291) delivers high-performance Layer 3 switching with 8 x 1G/2.5G/5G/10GBASE-T RJ45 ports and 4 x 1G/2.5G/10GBASE-X SFP+ uplinks, providing a non-blocking switching capacity of 240 Gbps. Designed for demanding enterprise networks, this 1U rackmount switch supports advanced routing protocols, comprehensive security features, and robust management options.

Advantages

Experience ultra-fast data transfer with multi-gigabit support on all ports, enabling seamless connectivity for high-bandwidth applications such as video streaming, virtualization, and data-intensive workloads. The switch's Layer 3 capabilities allow efficient inter-VLAN routing, reducing network latency and improving overall performance. With a fan-based smart cooling system, the switch ensures reliable operation even in demanding environments.

Suitable for

  • Enterprise campus networks requiring high-speed backbone switching
  • Data centers needing low-latency 10GbE connectivity
  • Video surveillance systems with high-resolution IP cameras
  • Virtualized server environments
  • Small to medium businesses scaling their network infrastructure

Key specifications

  • 12 ports: 8 x RJ45 (1G/2.5G/5G/10G) + 4 x SFP+ (1G/2.5G/10G)
  • Switching capacity: 240 Gbps
  • Forwarding rate: 238.08 Mpps
  • Jumbo frame support: up to 12K bytes
  • MAC address table: 32K entries
  • VLAN support: 4K IEEE 802.1Q VLANs
  • Layer 3 routing: Static, RIP v1/v2, OSPF v2/v3
  • Management: Web GUI, CLI, SNMP v1/v2c/v3, RMON, Telnet, SSH
  • Security: ACLs, Port Security, 802.1X, RADIUS/TACACS+
  • QoS: 802.1p, DSCP, port-based, rate limiting
  • Power supply: Internal AC 100-240V, 50/60Hz
  • Max power consumption: 60 W
  • Form factor: 1U 19-inch rackmount
  • Operating temperature: 0°C to 50°C
  • Cooling: Smart fan

Recommendations

For optimal performance, use Category 6a or higher cabling for 10GBASE-T connections. Pair with LevelOne SFP+ transceivers for fiber uplinks. Ensure adequate ventilation in the rack to maintain operating temperature.

Key Highlights
  • Multi-Gig 10G Connectivity: 8 x 100M/1G/2.5G/5G/10G RJ45 ports and 4 x 1G/2.5G/10G SFP+ uplinks for flexible copper and fiber designs
  • High-Performance Fabric: 240Gbps non-blocking switching capacity and 178.56Mpps forwarding for wire-speed throughput on every port
  • Advanced L3 Routing: Static IPv4/IPv6 routes, RIP v1/v2, OSPF v2 and BGP-4 for scalable inter-VLAN and WAN routing
  • Rich VLAN Segmentation: Supports up to 4K 802.1Q VLANs with QinQ, private, voice, guest and subnet-based VLAN options
  • Strong Security: 802.1X authentication, ACLs, MAC/port limiting and DoS protection to block unauthorized access and attacks
  • Service-Aware QoS: Eight hardware queues per port with SP, WRR and WDRR scheduling to prioritize voice, video and critical services
  • Resilient Architecture: LACP/static trunks, MSTP (64 instances) and ERPS rings for load sharing and sub-second failover
  • Comprehensive Management: Web GUI, console/Telnet/SSH, HTTPS/SSL, SNMP v1/v2c/v3, Syslog and FTP/TFTP for easy deployment and monitoring
  • Rack-Ready Design: 19-inch rack-mount L3 10G switch ideal for SMB cores, campus edge and high-performance workgroups
  • Managed L3 Web-based management
  • Quality of Service (QoS) support
  • Basic switching RJ-45 Ethernet ports quantity: 8 Console port: RJ-45
  • 10G support
  • Switching capacity: 240 Gbit/s
  • 1U Rack mounting
  • DC Power supply included
Specifications
AC input frequency
50/60 Hz
AC input voltage
100-240 V
Brand
LevelOne
Category
Switch
Depth
260 mm
EAN
4015867242988
Height
44 mm
LED indicators
Power, System, Link/Activity, PoE (if applicable)
MAC address table
32K entries
Mean time between failures (MTBF)
500,000 hours
Model
XEL-1291
MPN
XEL-1291
Networking standards
IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3z, IEEE 802.3ae, IEEE 802.3x, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1X
Noise level
Smart fan
Number of fans
1
Password protection
Yes
Power connector
Internal AC
Power consumption (max)
60 W
Power source
AC
Quality of Service (QoS) support
Yes
Security algorithms
SSH, SSL/TLS, SNMPv3, 802.1X, RADIUS, TACACS+, ACLs
System event log
Yes
Web-based management
Yes
Weight
1.7 kg
Width
440 mm

Leaflet

Open Leaflet

Document

Open Document
