DeLOCK D-Sub 9 pin female to RJ45 female Assembly Kit yellow VGA RJ-45

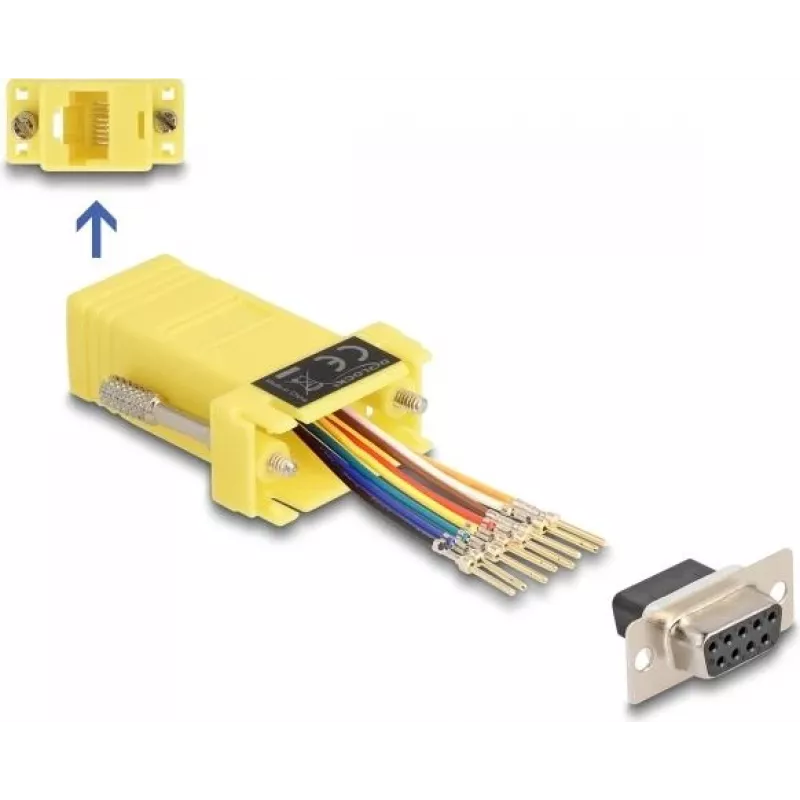

The DeLOCK D-Sub 9 pin female to RJ45 female assembly kit (yellow) enables extending a serial interface using a Cat.5 / 5e / 6 cable. The kit provides a D-Sub 9 female connector coupled to an RJ45 female socket and allows individual pin assignment by inserting the cable wires into the desired connector holes and locking them into the housing. Compact dimensions make it suitable for installations with limited space.

Advantages

This assembly kit allows flexible wiring of a D-Sub 9 interface over standard network cable, supports individual pin assignment, and requires no soldering. The RJ45-to-D-Sub solution is compact (34 mm × 50 mm × 16 mm) and is supplied in a visible yellow housing for easy identification.

Suitable for

• Extending RS-232 or other serial connections over Cat5 / Cat5e / Cat6 cable
• Custom pinout wiring between D-Sub 9 and RJ45
• Space-constrained installations requiring a compact adapter

Key specifications

• Brand: DELOCK
• Model / MPN: 67107
• EAN: 4043619671076
• Connector A: D-Sub 9 pin female
• Connector B: RJ45 female
• Color: Yellow
• Dimensions (W × D × H): 34 × 50 × 16 mm
• Cable types: Cat.5 / Cat.5e / Cat.6 (optional)

How to use

Prepare a Cat5 / Cat5e / Cat6 cable by stripping the outer jacket and separating the individual conductor wires. Insert each conductor into the desired hole of the RJ45 assembly according to the preferred pin assignment. Once all wires are positioned, press them into the housing until they lock. Mount the D-Sub 9 female to the target device and connect the RJ45 cable to the corresponding RJ45 socket.

Recommendations

Verify the intended pinout and signal levels (for example RS-232 voltage levels) before wiring. Use twisted-pair Cat5/5e/6 cable for reliable signal transmission and keep cable runs as short as practical to reduce interference.
