Lanview LVO-101015 Network Video Recorder 16 Channels 4K

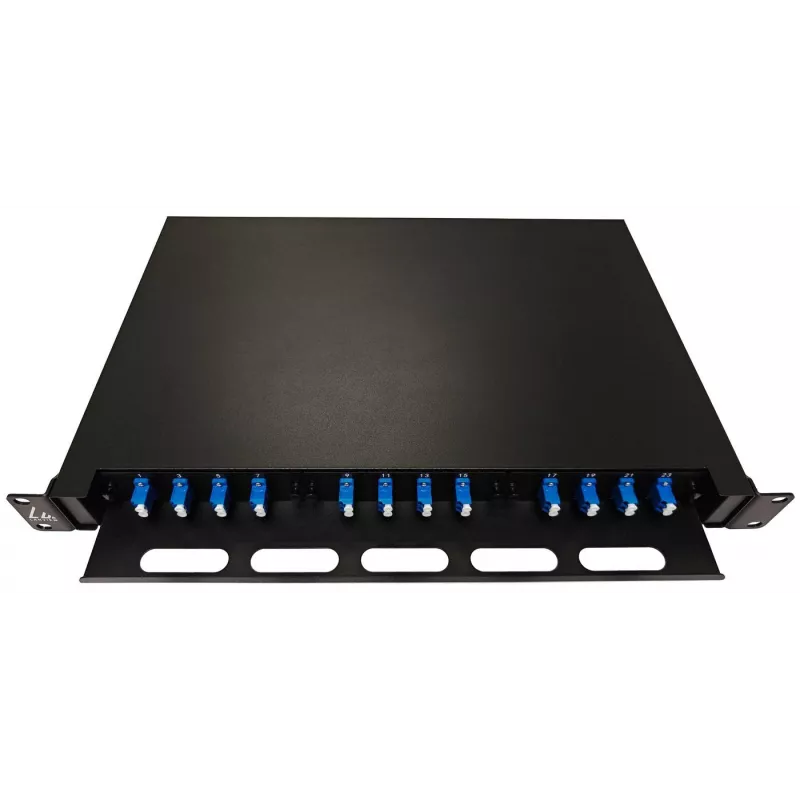

1U indoor 19-inch sliding rack panel ODF with capacity for 24 optical fibres and 12 LC duplex ports. The panel comes fully loaded with LC/UPC single-mode duplex adaptors and pre-terminated LC/UPC G657A2 0.9mm 1 m LSZH colour-coded pigtails. The unit fits a standard 19" rack and features a slide-out design for easier access during installation and maintenance.

Advantages

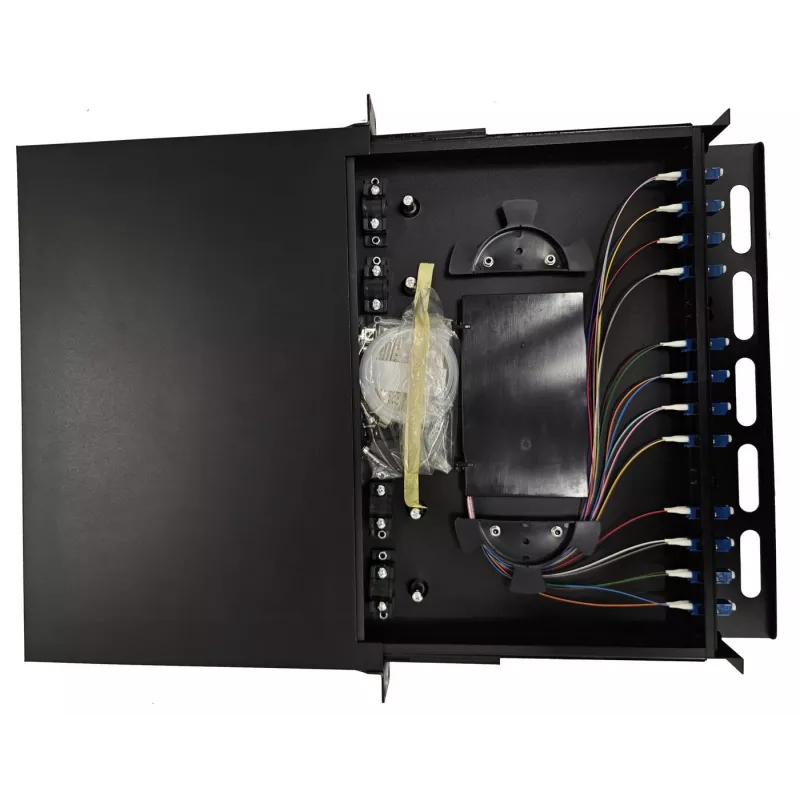

The sliding 1U design provides convenient front access to adaptors and pigtails without removing the unit from the rack. Fully loaded LC/UPC adaptors and factory-terminated G657A2 pigtails reduce onsite splicing and speed up deployment. LSZH sheathing on the pigtails minimizes hazardous smoke emission in enclosed spaces, and the colour coding simplifies fibre identification.

Suitable for

• Indoor telecommunications and data centre fibre management
• FTTx, backbone and horizontal distribution panels
• Environments requiring quick access and orderly fibre routing

Key specifications

• Form factor: 1U, 19-inch rack mount, slide-out panel
• Capacity: 24 cores (fibres), 12 LC duplex ports
• Connectors/adaptors: LC/UPC single-mode duplex adaptors (fully loaded)
• Pigtails: LC/UPC, G657A2 single-mode, 0.9 mm, 1 m length, LSZH, colour coded
• Design feature: slide-out for maintenance and access

How to use

Mount the unit in a standard 19" indoor rack at the desired 1U position. Pull out the sliding panel to access LC/UPC adaptors and route incoming/outgoing fibres to the matching colour-coded pigtails. Perform fusion splicing or patching as required using the pre-terminated pigtails, then retract the panel and secure it in place. Use proper cable management to avoid tight bends and maintain fibre bend radius.

Recommendations

Install in a clean, temperature-controlled indoor environment. Avoid exceeding the recommended bend radius for G657A2 fibres and secure pigtails to prevent strain. Use compatible LC/UPC patch cords for connections and label ports according to your network documentation.
