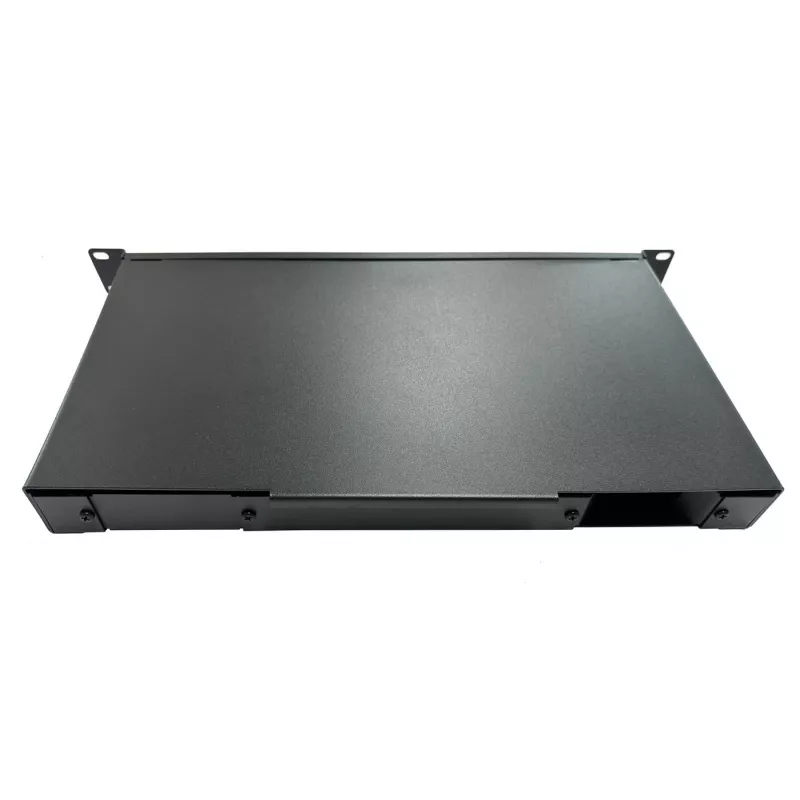

Lanview LVO233845 patch panel 1U

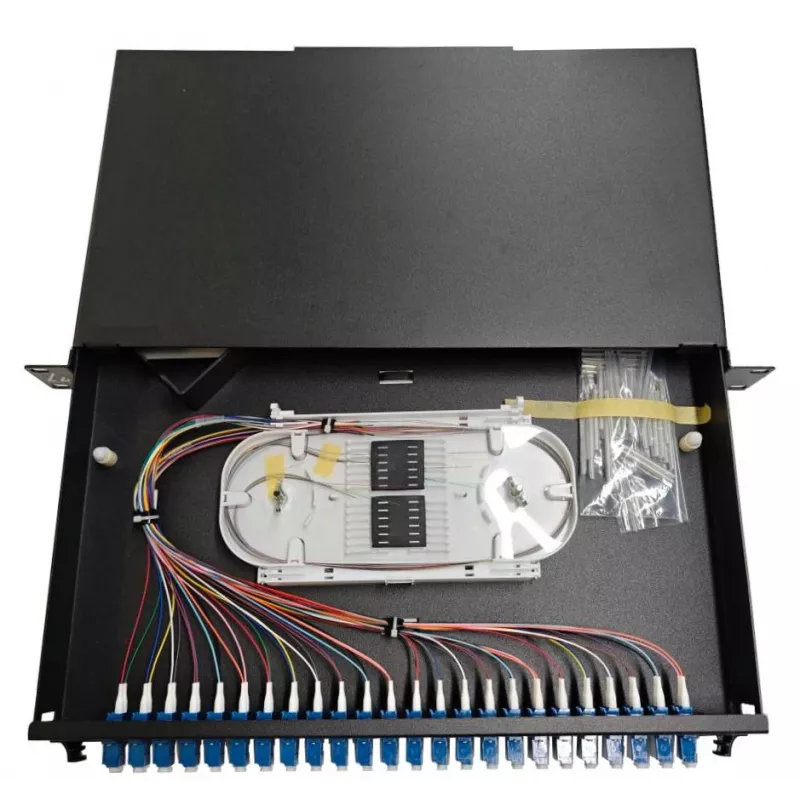

The Lanview LVO233845 is a 19" 1U fiber patch panel designed for organized rack-mounted fiber management. It supports up to 24 LC duplex or 24 SC simplex adapters and is supplied with 24 LC duplex single-mode adapters and 48 pre-mounted pigtails in splice cassettes. The panel is made of durable black steel and includes multiple cable entry points and reinforced strain relief suitable for blown-fibre installations.

Advantages

This 1U patch panel provides a compact, standardized 19" form factor for efficient rack use and clear fiber routing. It has four Ø20 mm round inlets compatible with PG screw connections and two rectangular 80 x 34 mm inlets with blank plates, enabling flexible cable entry. Rubber-coated strain relief reduces mechanical stress on fibers, and built-in fixtures for splice cassettes plus cable management cutouts allow secure fixation of cables with ties or Velcro straps.

Suitable for

• Rack-mounted fiber management in data centers and server rooms
• Fiber backbone termination and distribution panels
• Blown-fibre installations requiring reinforced strain relief
• Environments using SC simplex or LC duplex single-mode connections

Key specifications

• Model: Lanview LVO233845
• Format: 19" 1U rack-mountable
• Adapter capacity: up to 24 SC simplex or 24 LC duplex
• Supplied adapters: 24 x LC duplex single-mode
• Pre-mounted pigtails: 48 in splice cassettes
• Cable inlets: 4 × Ø20 mm (PG screw compatible) and 2 × 80 × 34 mm rectangular with blank plates
• Strain relief: rubber-coated, suitable for blown-fibre
• Material/colour: steel, black
• Dimensions (approx.): 420 mm width × 36 mm depth × 245 mm height
• Weight: 3.5–3.6 kg

How to use

Mount the patch panel in a standard 19" rack using the 1U space. Install splice cassettes in the provided fixtures and secure pre-mounted pigtails. Terminate incoming cables through the selected inlets and fasten with suitable PG screws or remove blank plates for rectangular entries as needed. Route fibers using the built-in cable management cutouts and secure them with cable ties or Velcro straps to maintain bend radius and relieve stress. Connect patch cords to the front LC or SC adapters for network links.

Recommendations

When installing, confirm connector types (LC duplex vs SC simplex) and handle fibers with appropriate ESD and fiber-cleaning procedures. Maintain minimum bend radii for single-mode fibers and use the rubber-coated strain relief for blown-fibre runs to prevent damage and signal loss.
