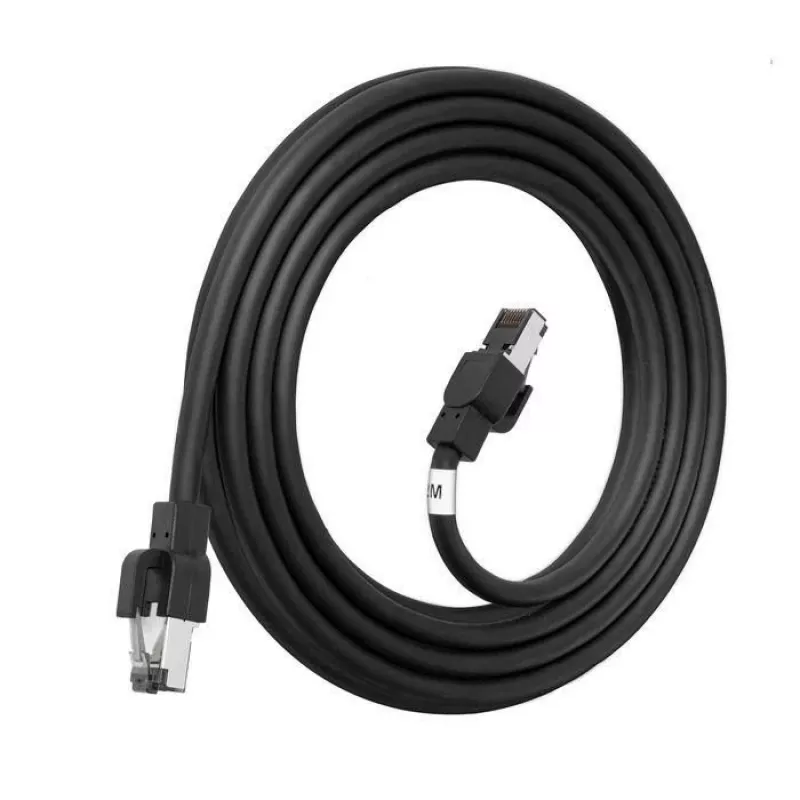

LANVIEW Cat6a HIGH-FLEX S/FTP Outdoor Network Cable – 10GbE, 500 MHz, 23 AWG Solid Copper, Black

Standard outdoor cables often sacrifice flexibility for weather resistance, but the LANVIEW Cat6a HIGH-FLEX S/FTP Outdoor cable delivers both. Engineered for 10 Gigabit Ethernet in demanding environments, it combines S/FTP shielding with a UV-resistant polyethylene jacket and a high-flex design that withstands repeated bending without performance loss. Whether you're wiring outdoor access points, security cameras, or industrial networks, this cable ensures stable, high-speed connectivity up to 100 metres.

Highlights

• Category 6a performance with 500 MHz bandwidth and 10GBASE-T support
• S/FTP shielding (individually screened pairs plus an overall braid) cancels crosstalk and external noise
• Made with 23 AWG solid bare copper conductors for maximum signal integrity
• High-flex construction for tight bends and frequent movement
• UV-resistant PE jacket protects against sun, moisture and direct burial

In daily use

This cable is the right choice for outdoor access points, security cameras, industrial networking, or any run that leaves a building and needs to endure the elements. The high-flex rating means you can route it around corners and through conduits without worrying about kinks. It delivers stable 10GbE performance up to 100 metres, so it easily handles high-bandwidth applications like video surveillance or backbone links.

Full specifications

• Cable type: Cat6a S/FTP (PiMF)
• Conductors: 4 twisted pairs, 23 AWG solid bare copper
• Bandwidth: 500 MHz
• Data rate: 10GBASE-T
• Impedance: 100 Ohm ±15%
• Jacket: UV-resistant PE, black
• Outer diameter: 7.8 mm (nominal)
• Bend radius: 8 x outer diameter
• Operating temperature: -20°C to +60°C

Final note

For installations that demand both durability and high-speed performance, the LANVIEW Cat6a HIGH-FLEX S/FTP Outdoor cable is a reliable, future-proof choice.
