DIGITUS outdoor installation cable - Cat 7 - S/FTP - AWG 23/1 - 1000m - Black

DIGITUS outdoor installation cable - Cat 7 - S/FTP - AWG 23/1 - 1000m - Black
DIGITUS outdoor installation cable - Cat 7 - S/FTP - AWG 23/1 - 1000m - Black
DIGITUS outdoor installation cable - Cat 7 - S/FTP - AWG 23/1 - 1000m - Black
DIGITUS outdoor installation cable - Cat 7 - S/FTP - AWG 23/1 - 1000m - Black
R23,680
Future-oriented standards and high-end quality for your network.- 10GBit Ethernet- 1200 MHz transmission frequency- Permanent Link certified- PoE Power over Ethernet support- PE outer sheath, BauPVO class Eca inner sheathThe Digitus® Professional Cat.7 S/FTP underground cable is characterized by the... Read More
Stock 1 Code 129315 Brand DIGITUS Model DK-1741-VH-10-OD Warranty 2 Years

Shipping & Returns

Estimated delivery Friday, October 2
You will be kept updated through our detailed tracking system
Payment options
EFTPayFastBank CardSnapScanZapperGoogle PayApple PayMobicredMoreTymePay on Arrival

Future-oriented standards and high-end quality for your network.

- 10GBit Ethernet
- 1200 MHz transmission frequency
- Permanent Link certified
- PoE Power over Ethernet support
- PE outer sheath, BauPVO class Eca inner sheath

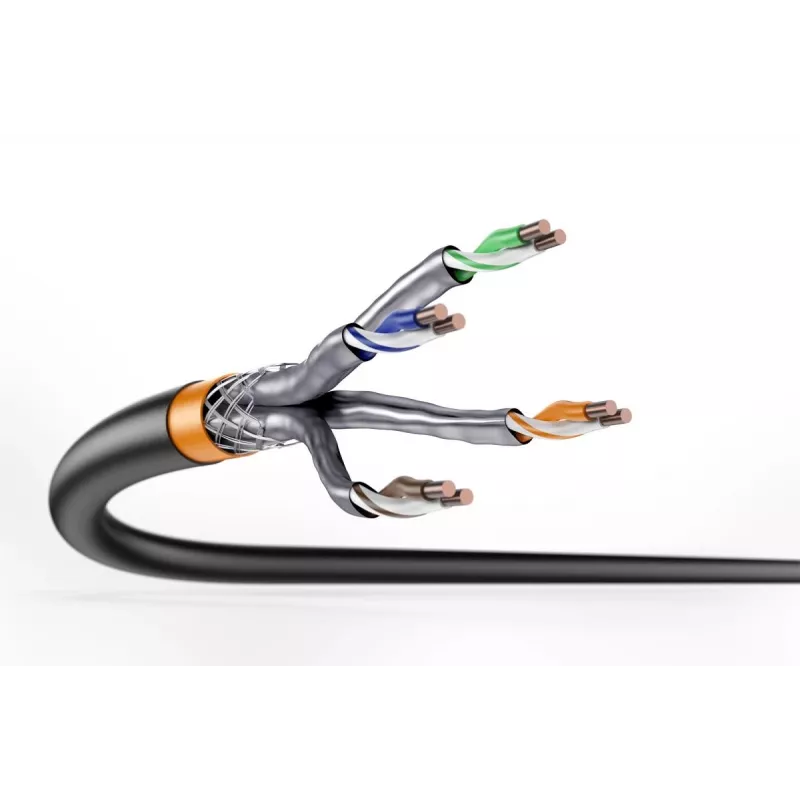

The Digitus® Professional Cat.7 S/FTP underground cable is characterized by the following cable structure 4x2x AWG23/1 and achieves a transmission frequency of up to 1200 MHz. The cable has a PE outer sheath and a halogen-free inner sheath and conforms to the IEC 60332-1, FRNC-B, LSZH-1 and BauPVO Euroclass Eca standards. The cable is suitable for installations in dry or damp rooms, outdoors or in the ground. Conforms to the standards ISO/IEC 11801, DIN EN 50173, DIN EN 50288-4-1.

Key Highlights
  • Physical properties:
  • Conductor: Bare copper wire, AWG 23/1
  • Insulation: SFS-PE (foamed polyethylene jacket)
  • Total number of insulated conductors: 8, twisted into 4 pairs
  • Color code: Blue-white, orange-white, green-white, brown-white
  • Shielding of the individual pairs: Aluminum-laminated polyester film, covers 100%
  • Overall shielding: copper braiding
  • Outer sheath: PE (polyethylene); UV-resistant
  • Outer sheath thickness (nominal): 0.50 mm nominal
  • Outer casing color: Black (RAL 9005)
  • Mechanical properties:
  • Strain relief: 150N max.
  • Dynamic bending radius: 8x AD mm min.
  • Static bending radius: 4x AD mm min.
  • Transport and storage temperature range: -20 °C to +60 °C
  • Operating temperature range: -50 °C to +60 °C
  • Installation temperature range: 0 °C to +60 °C
  • Outer diameter simplex (nominal): 8.5 mm (Eca)
  • Weight (kg/km): 66.5 kg/km
  • Electrical properties:
  • Impedance: 100±5 Ohm @ 4-100 MHz; 100±25 Ohm @ 100-1200 MHz
  • Capacitance: 45 pF/m nominal @ 1 KHz
  • Capacitance unbalance (pair-earth): 1.6 pF/m max. @ 1 KHz
  • Insulation resistance: 5 GOhm x km min.
  • DC resistance: 95 Ohm/km max. (2% max. unbalanced resistance)
  • Loop resistance: 190 Ohm/km max. (2% max. unbalanced resistance)
  • Operating voltage: 72 Vdc max.
  • Coupling attenuation: CA-Type 1b
  • Phase delay: 450 nS/100 m max.
  • Time delay: 10 nS/100 m max.
  • Separation class: "d" according to EN 50174-2
  • NVP: 79%
Specifications
AWG wire size
23/1
Cable length
1000 m
Cable shielding
S/FTP (S-STP)
Cable standard
Cat7
Certification
CPR class Eca
Conductor type
Solid
Country of origin
China
Frequency
1200 MHz
Harmonized System (HS) code
84733080
Jacket material
Polyethylene (PE)
Package depth
600 mm
Package volume
118800 cm³
Package weight
66 kg
Package width
600 mm
Product colour
Black
UK Trade Tariff code
85444920
