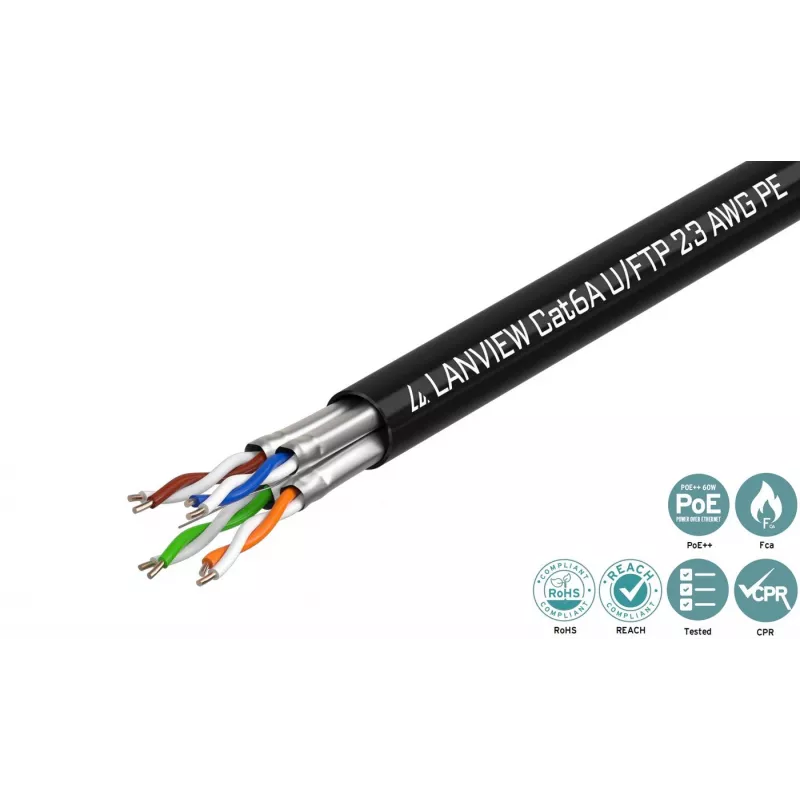

Lanview LVN122445 networking cable Black 500 m Cat6a U/UTP (UTP)

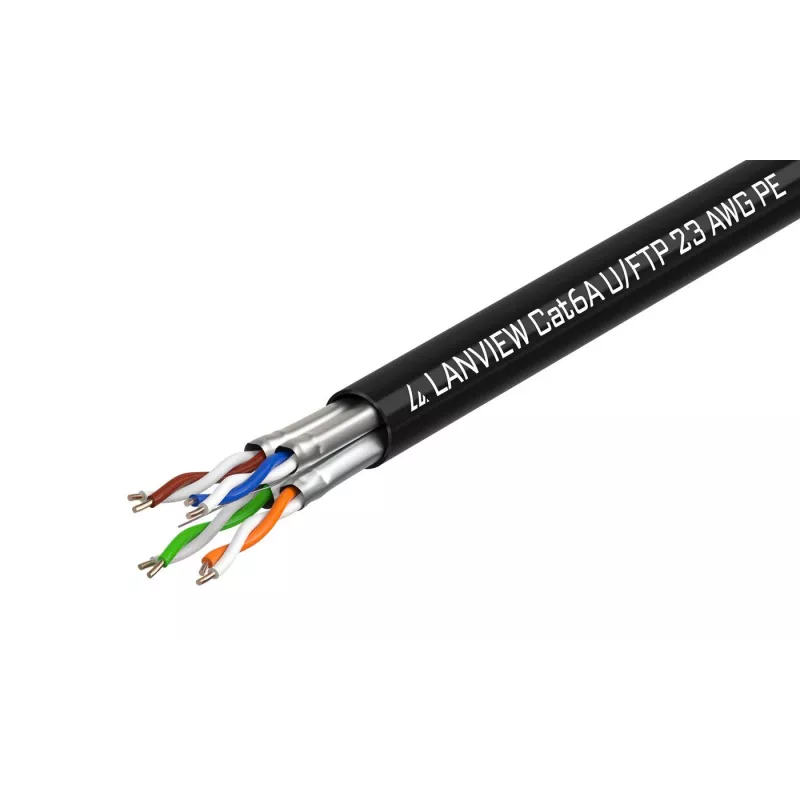

Lanview LVN122445 Cat6a U/UTP (UTP) 500 m Black is a 500-metre outdoor-rated networking cable designed for structured cabling where Cat6a performance is required. The cable features four individually foil-wrapped twisted pairs (U-FTP) within an overall unshielded jacket, providing improved protection from pair-to-pair crosstalk and electromagnetic interference compared with plain UTP. Constructed with 23 AWG solid copper conductors and a weather-resistant polyethylene (PE) outer sheath, this cable supports 10 Gigabit Ethernet and is suitable for horizontal runs, backbone links and intermediate outdoor cabling between buildings.

Advantages

The Lanview Cat6a U-UTP design balances signal integrity and installation flexibility by combining individually shielded pairs with an unshielded outer jacket, offering reduced near-end crosstalk and better pair isolation without the need for an overall metallic screen. UV-resistant PE outer jacket and duct-grade construction make the cable suitable for outdoor environments and exposure to sunlight. Meter markings on the 500 m reel simplify measurement during installation, and a nominal NVP of 74% supports predictable signal timing for high-speed links.

Suitable for

• Outdoor structured cabling runs between buildings
• Backbone links and intermediate cabling
• Outdoor surveillance and camera systems
• Data centre horizontal or vertical distribution where Cat6a is required
• HDBaseT video and high-speed Ethernet installations

Key specifications

• Category: Cat6a
• Cable type: U/UTP (individual pairs foil screened, overall unshielded)
• Length: 500 m reel
• Conductors: 4 pairs, 23 AWG solid copper
• Nominal Velocity of Propagation (NVP): 74%
• Maximum data rate: 10 Gigabit Ethernet (10000 Mbit/s)
• Jacket material: UV-resistant polyethylene (PE), duct grade
• Colour: Black
• Meter marked: yes

How to use

Install this Lanview Cat6a cable in accordance with standard cabling practices for outdoor and structured cabling systems. Route the cable through suitable conduits or ducts to protect it from mechanical damage and ensure correct bend radii during pulling to avoid deforming the pairs. Terminate each pair on compatible Cat6a-rated keystone jacks, patch panels or connectors that accept 23 AWG solid conductors and maintain pair integrity and untwisted length limits as specified by installation standards. For outdoor intermediate runs, ensure proper entry sealing at building penetrations and provide adequate strain relief at reel ends and terminations.

Recommendations

Use the cable where Cat6a performance is required in outdoor or ducted installations. Avoid prolonged exposure to chemical solvents and do not install without appropriate conduit or ducting in locations with a high risk of physical damage. Perform end-to-end certification testing after installation to verify compliance with ISO/IEC and TIA/EIA performance levels.
