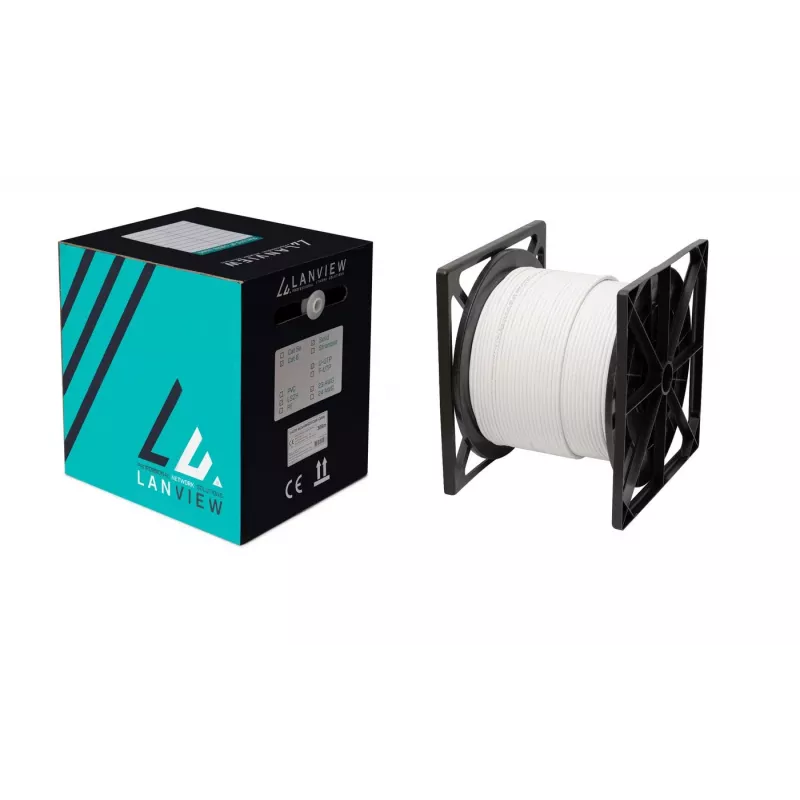

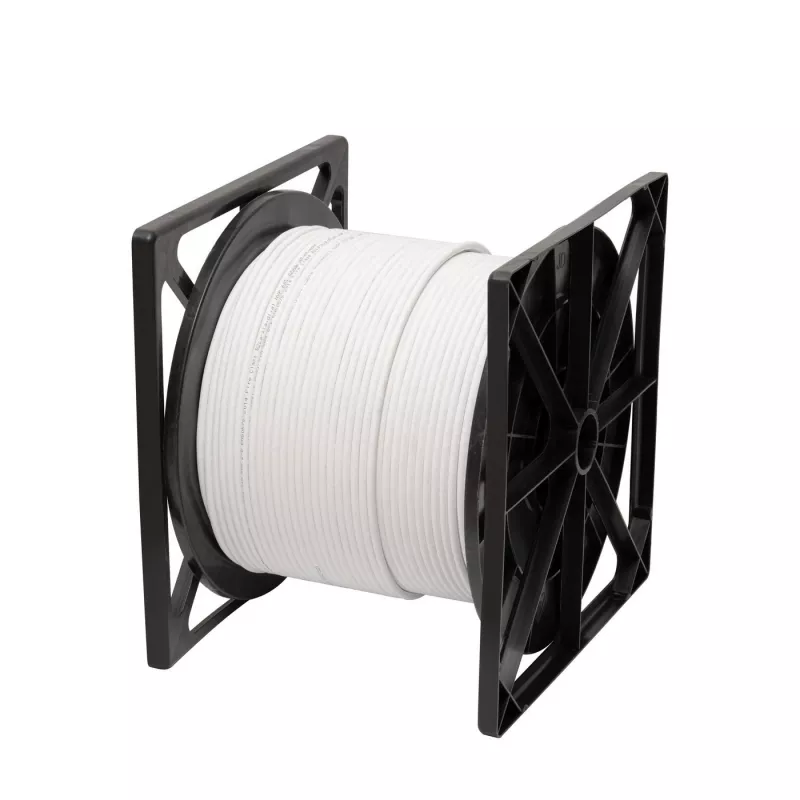

Lanview LVN122432 networking cable White 305 m Cat6a U/FTP (STP)

Lanview LVN122432 U/FTP Cat6a cable, 305 m, is a shielded network cable designed for high-speed cabling systems. Manufactured and tested to ISO/IEC 11801, EIA/TIA 568B and EN50173-2 standards, the white cable contains four pairs of PE-insulated, color-coded conductors and supports 10GBase-T data rates up to 10000 Mbit/s. The cable is HDBaseT-approved for transmission of full HD, 2K and 4K uncompressed video, audio, Ethernet, power and control signals over a single Cat6a link.

Advantages

The U/FTP shielding minimizes crosstalk and interference in electrically noisy environments, while the LSZH jacket reduces hazardous smoke and toxic gas emission in case of fire. Tested to relevant international standards and approved by the HDBaseT Alliance, this Cat6a cable provides consistent performance for demanding applications and compact cable routing where space is limited.

Suitable for

• High-speed 10GBase-T network installations
• HDBaseT audio/video distribution (full HD, 2K, 4K)
• Noisy electromagnetic environments
• Installations with limited cable route space

Key specifications

• Length: 305 m
• Cabling technology: 10GBase-T (Cat6a)

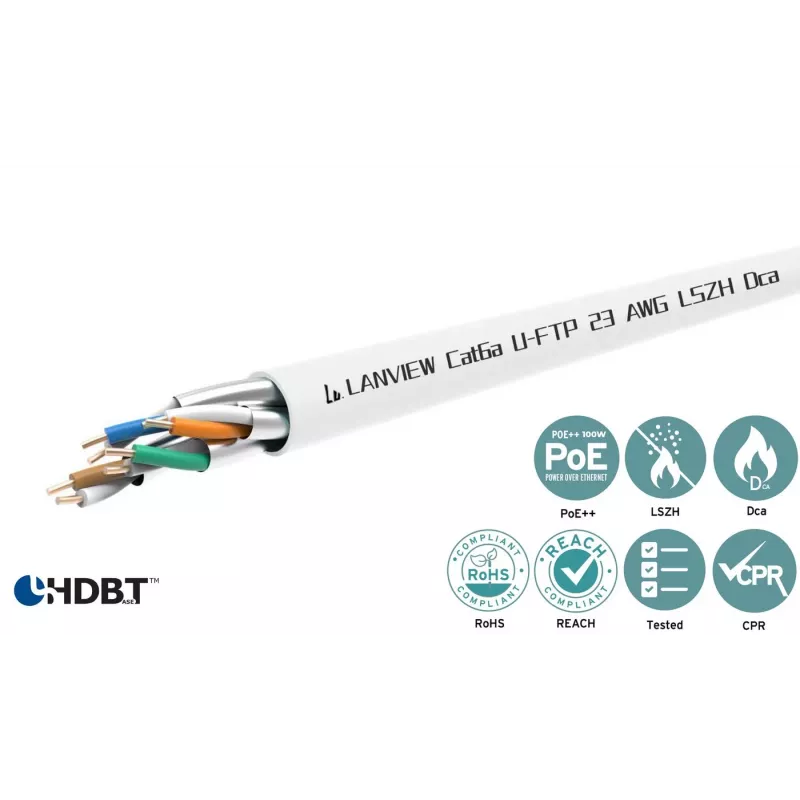

• Shielding: U/FTP (overall unshielded with individually foil‑shielded pairs)
• Standards: ISO/IEC 11801, EIA/TIA 568B, EN50173-2
• HDBaseT approval
• Maximum data rate: up to 10000 Mbit/s
• Conductor insulation: PE, 4 twisted pairs, color coded
• Jacket material: LSZH (low smoke, zero halogen)
• Color: White
• Weight: 17 kg

How to use

Run the Lanview LVN122432 cable through the planned cable routes and terminate each end with compatible Cat6a RJ45 connectors or keystone jacks following standard termination procedures. Observe recommended bend radius and avoid excessive pulling force during installation. Ensure correct grounding and bonding practices where required for shielded cabling and test each link with a certified network tester to verify performance up to 10GBase-T.

Recommendations

For reliable HDBaseT performance and to maintain 10G data rates, install the cable away from strong electrical sources, respect the manufacturer's specified bend radius and use proper shielding termination and grounding methods. Use certified Cat6a connectors and verify each run with appropriate testing equipment.
