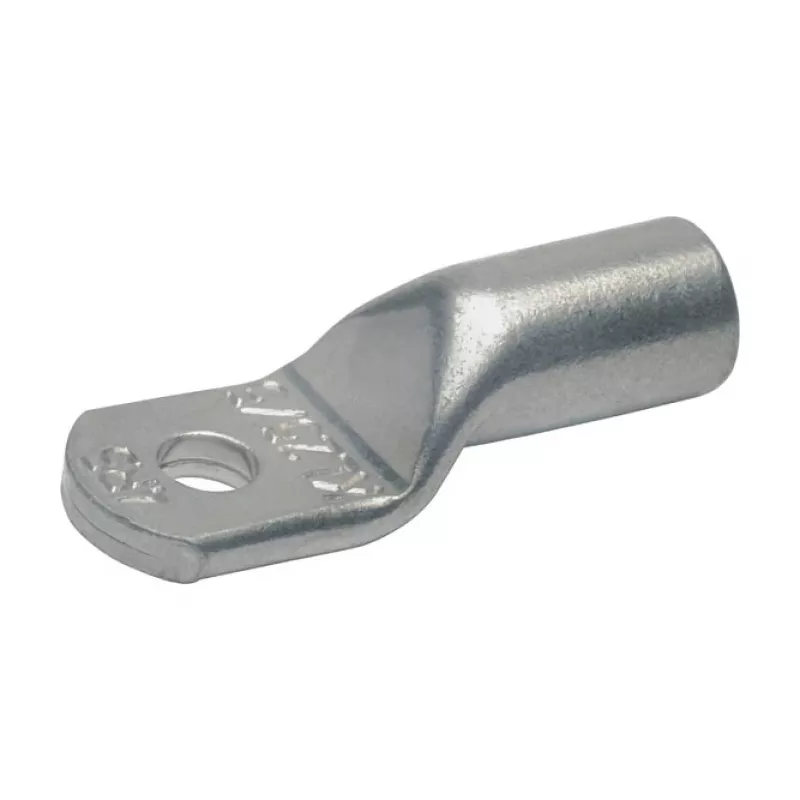

KLAU Cu-Crimp Cable Lug 5R10 35mm² M10 – DIN 46235, Electrolytic Copper, Inspection Hole

Engineered for reliable electrical power connections, this crimp cable lug from KLAU handles a conductor cross-section of 35 mm² with an M10 bolt hole, making it suitable for demanding industrial and grounding applications. Manufactured from electrolytic copper (E-Cu) and compliant with DIN 46235, it ensures optimal conductivity and mechanical strength.

Overview

The KLAU 5R10 is a tubular crimp cable lug designed for stranded copper conductors of Class 2, 5, and 6. Its inspection hole allows for visual verification of proper conductor insertion, while the untreated bare copper surface provides excellent electrical contact. With a maximum operating temperature of 120 °C and a voltage rating up to 1000 V, this lug is built to perform in harsh environments.

What stands out

• Made from high-conductivity electrolytic copper (E-Cu) for minimal resistance.
• Conforms to DIN 46235, ensuring standardized dimensions and performance.
• Inspection hole enables quick and reliable quality checks during installation.
• Compatible with stranded copper conductors (Class 2, 5, 6) for versatile use.
• RoHS compliant and halogen-free, meeting modern environmental standards.

Technical details

• Product type: Crimp cable lug
• Material: Electrolytic copper (E-Cu)
• Conductor cross-section: 35 mm²
• Bolt hole diameter: 10.5 mm
• Bolt size: M10
• Connection method: Crimp
• Barrel type: Tubular
• Surface treatment: Untreated / bare copper
• Conductor type compatibility: Stranded copper conductors (Class 2, 5, 6)
• Inspection hole: Yes
• Max. operating temperature: 120 °C
• Voltage rating: Up to 1000 V
• RoHS compliant: Yes
• Halogen-free: Yes
• Series: 5R
• Application: Electrical power connections, grounding
• Colour: Copper (natural)

Our verdict

The KLAU 5R10 crimp cable lug is a dependable choice for professionals who require a DIN-compliant, high-conductivity connection. Its inspection hole and robust copper construction make installation and long-term performance straightforward, while the RoHS and halogen-free credentials align with today's environmental expectations.
