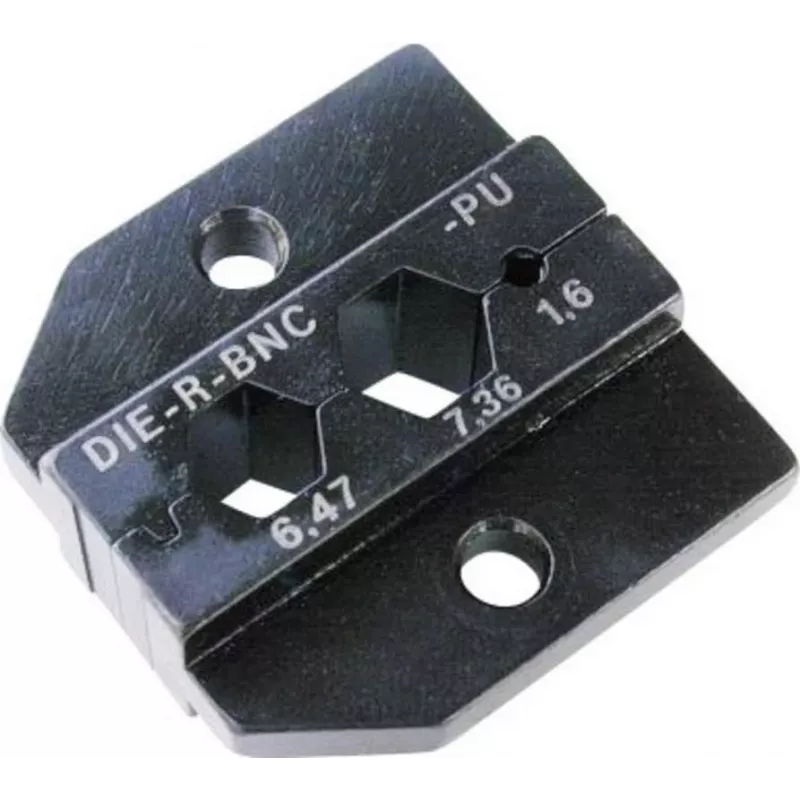

Neutrik DIE-R-BNC-PU Crimp Die Insert for rearTWIST BNC Connectors, Black

For professionals who demand flawless BNC terminations, the Neutrik DIE-R-BNC-PU crimp die insert delivers precision that generic dies simply cannot match. Machined from hardened steel and engineered exclusively for Neutrik rearTWIST 75 Ohm BNC connectors, this insert guarantees a perfect hexagonal ferrule crimp and a square center pin crimp every time—no guesswork, no rework, no signal degradation.

Highlights

• Precision-machined hardened steel for long-lasting durability
• Two dedicated crimp cavities: 6.48 mm hex for ferrule, 1.73 mm square for center pin
• Optimized for Neutrik rearTWIST BNC 75 Ohm connectors (NBNC75BLP series)
• Compatible with a wide range of coaxial cables including Belden 1505A, 1694A, 1855A, RG59, and RG6
• Quick and tool-free insertion/removal from the Neutrik HX-R-BNC crimping tool
• RoHS compliant and built for broadcast, pro A/V, and studio environments

In daily use

Install the DIE-R-BNC-PU into your HX-R-BNC crimping tool and you immediately feel the difference: a snug, secure fit that eliminates wobble and ensures consistent crimp geometry. The hexagonal ferrule cavity produces a uniform 360° compression for excellent cable retention and shielding integrity, while the square center pin cavity forms a precise, gas-tight connection that maintains 75 Ohm impedance. Whether you are terminating a single patch cable or building a full studio patch bay, this die insert helps you achieve repeatable, professional-grade results with minimal effort.

Full specifications

• Product type: Crimp die insert
• Application: Termination of BNC connectors
• Connector compatibility: Neutrik rearTWIST BNC 75 Ohm (NBNC75BLP9, NBNC75BLP7, NBNC75BLP6, NBNC75BLP5, NBNC75BLP4)
• Cable compatibility: Belden 1505A, 1694A, 1855A, RG59, RG6 and similar coaxial cables
• Crimp profile 1 (ferrule): Hexagonal, 6.48 mm (0.255")
• Crimp profile 2 (center pin): Square, 1.73 mm (0.068")
• Number of crimp cavities: 2
• Tool compatibility: Neutrik HX-R-BNC crimping tool
• Material: Hardened steel
• Color: Black finish
• Impedance (for compatible connectors): 75 Ohm
• RoHS compliant: Yes
• Packaging quantity: 1 piece

Final note

For broadcast engineers, AV integrators, and serious DIY enthusiasts, the Neutrik DIE-R-BNC-PU is an essential accessory that turns a good crimping tool into a precision instrument. Trust the original—your connections deserve it.
