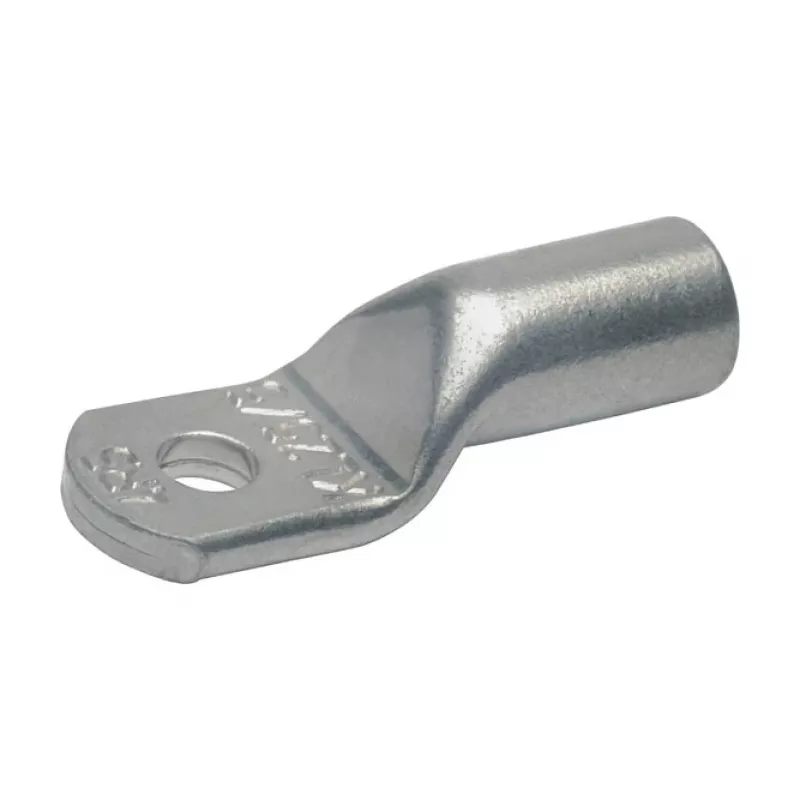

KLAUKE Cu-Crimp Cable Lug 6R8 50mm² M8

For secure, low-resistance terminations on 50 mm² copper conductors, the KLAUKE 6R8 crimp cable lug delivers a permanent, gas-tight connection that withstands vibration and harsh environments. Its seamless electrolytic copper construction ensures excellent conductivity and corrosion resistance, while the M8 stud hole fits standard bolts for reliable fastening in electrical installations, switchgear, and machinery.

Who is it for

Electricians, panel builders, and maintenance technicians who need dependable cable terminations for power distribution, control cabinets, or automotive applications. It is ideal for anyone crimping copper conductors with standard tools and requiring a durable, inspection-friendly lug.

Main features

• Seamless E-Cu tube with >99.9% copper purity for maximum conductivity.
• Bell-mouth entry simplifies conductor insertion, reducing strand damage.
• Inspection hole allows visual confirmation of full conductor insertion.
• Untreated bare copper surface suitable for standard crimping and optional tinning.
• Wide operating temperature range from -55 °C to +150 °C.

Specifications

• Conductor cross-section: 50 mm²
• Stud hole diameter: 8 mm (M8)
• Material: Electrolytic copper (E-Cu)
• Surface: Bare copper, no corrosion protection
• Entry type: Bell-mouth
• Inspection hole: Yes
• Operating temperature: -55 °C to +150 °C
• Compatible with standard crimping tools for copper lugs

Tips

Always use a calibrated crimping tool matched to the lug size and conductor cross-section. Strip the insulation to the correct length so the conductor fully seats in the barrel; the inspection hole should show copper. For corrosive environments, consider tinning or using a sealed lug variant.
