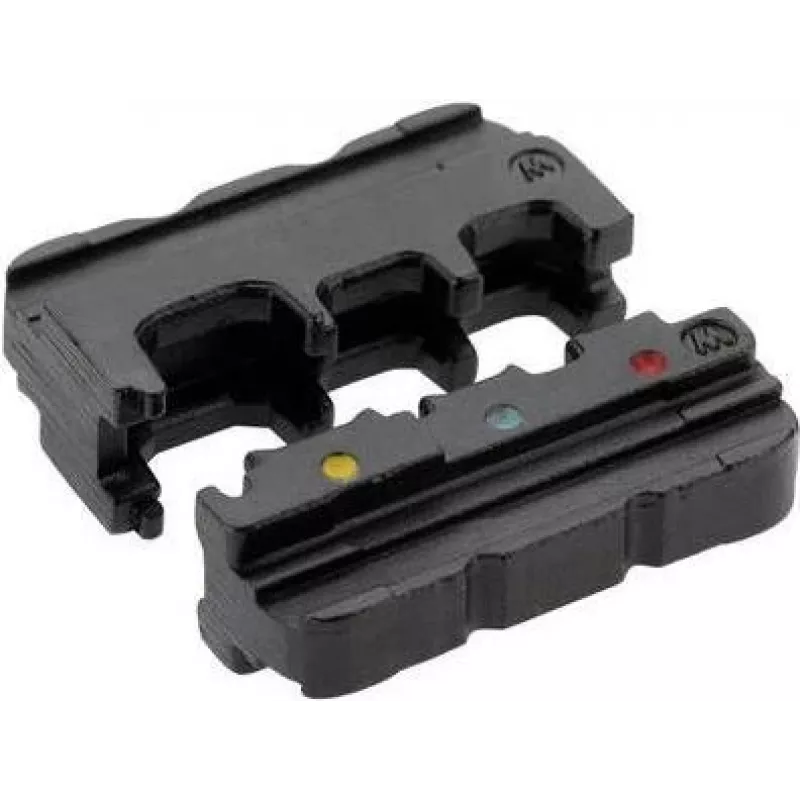

Crimping nest die Cimco 106010 6 mm² 1 pc

The Cimco 106010 crimping nest die is designed for crimping cables with a maximum cross-section of 6 mm². This single die insert fits into compatible crimping tools to form reliable, mechanically robust crimps for insulated and non-insulated terminals used in electrical installations and maintenance tasks. Manufactured to provide consistent crimp geometry, the die helps ensure electrical continuity and long-term connection stability.

Advantages

The crimping nest die delivers repeatable crimp quality and precise conductor compression, reducing the risk of loose connections. Made from wear-resistant steel, it is suitable for frequent use in workshop and field environments. Its accuracy contributes to predictable contact resistance and improved safety in low-voltage electrical systems.

Suitable for

• Crimping electrical connectors on single and multi-strand conductors up to 6 mm²
• Professional electrical installation and repair work
• Workshop use for automotive, control panels, and household wiring
• Replacement or upgrade of worn crimping dies in compatible tools

Key specifications

• Maximum conductor cross-section: 6 mm²
• Form factor: single nest die insert for compatible crimping tools
• Material: hardened steel for wear resistance and dimensional stability
• Intended application: insulated and non-insulated terminal crimps in low-voltage wiring
• Quantity: 1 piece

How to use

Install the die into the compatible crimping tool according to the tool manufacturer's instructions, ensuring correct orientation and secure fastening. Select the appropriate terminal and strip the conductor to the recommended length. Insert the conductor and terminal into the die pocket, operate the crimping tool to full stroke, and release once the crimp is completed. Inspect the crimp for proper deformation and mechanical security before placing the connection into service.

Recommendations

Regularly inspect the die for wear, nicks, or dimensional changes and replace when crimp quality deteriorates. Use the die only with terminals and conductors within the specified 6 mm² range and follow relevant electrical installation standards and safety procedures.
