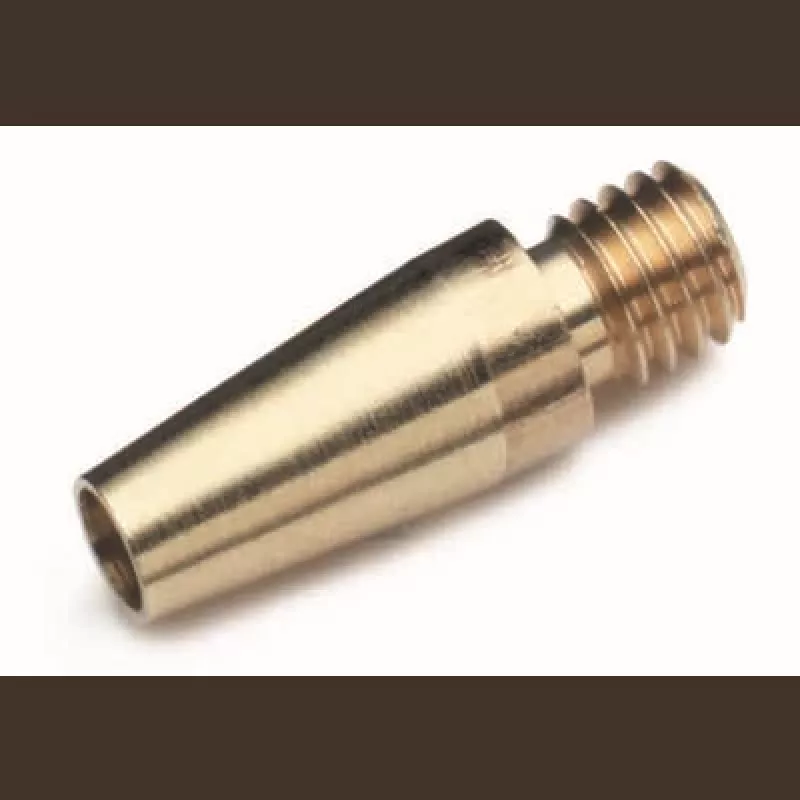

Starting Sleeve M5 by cimco — model 142142, steel construction

Cimco Starting Sleeve M5 is a steel starting sleeve designed to assist with the accurate insertion of M5 threaded fasteners. The sleeve functions as a guide and support during the initial engagement of screws or bolts, helping to align the fastener and reduce the risk of cross-threading or damage to mating threads. Constructed from steel, the sleeve provides the rigidity and wear resistance needed for repeated use in workshop and industrial settings where precise starting of M5 fasteners is required.

Advantages

The steel construction offers durability and resistance to deformation under normal installation forces, ensuring consistent performance over repeated cycles. By providing a stable guide for the fastener, the sleeve improves alignment and reduces installation time and rework from damaged threads. Its size and shape are matched specifically for M5 fasteners, enabling reliable engagement with common installation tools used in mechanical assembly and maintenance.

Suitable for

• Mechanical assembly of M5 screws and bolts
• Workshop and maintenance operations requiring precise thread starting
• Industrial production lines where consistent fastener alignment is needed
• Situations where reduced risk of cross-threading is important

Key specifications

• Material: steel for enhanced strength and wear resistance
• Size compatibility: designed for M5 threaded fasteners
• Function: starting guide to assist initial fastener engagement and alignment
• Typical applications: workshop, maintenance, assembly, and industrial use

How to use

Place the Starting Sleeve M5 over the M5 screw or bolt so the fastener shaft is guided by the sleeve. Insert the fastener and sleeve assembly into the receiving hole, ensuring the sleeve keeps the fastener aligned with the mating thread. Apply the required driving torque using the recommended installation tool; the sleeve maintains alignment during initial turns until the fastener is sufficiently engaged. After engagement, the sleeve can be withdrawn if designed for removable use or left in place if the application requires a permanent guide.

Recommendations

Use appropriate personal protective equipment and recommended installation tools for M5 fasteners. Inspect the sleeve for wear or deformation before use and replace if damaged to maintain alignment accuracy. Avoid excessive torque that could deform the sleeve or the fastener during installation.
