Internal M.2 Adapter DeLOCK 90305

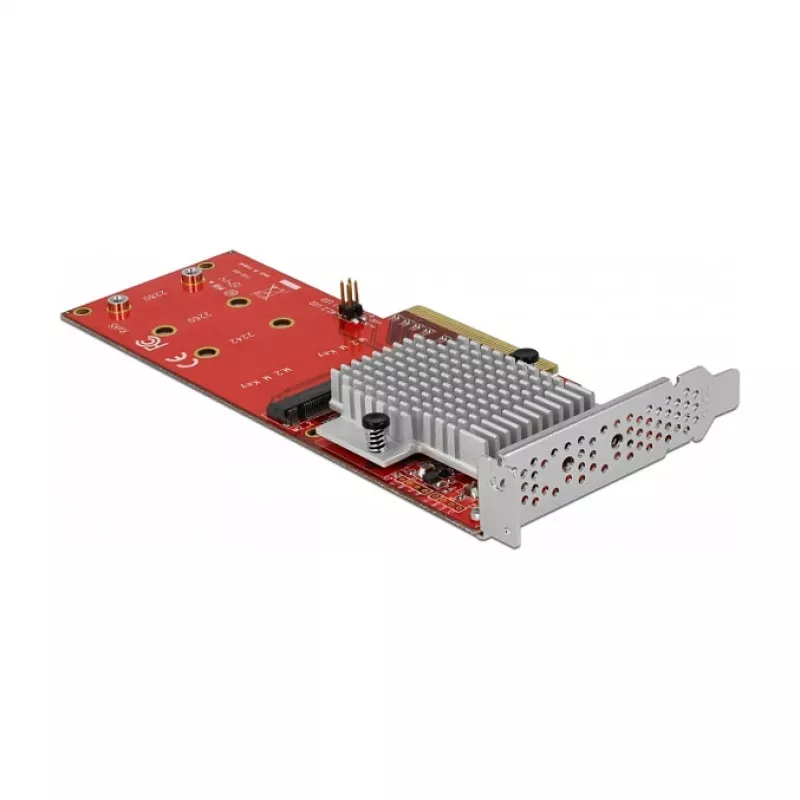

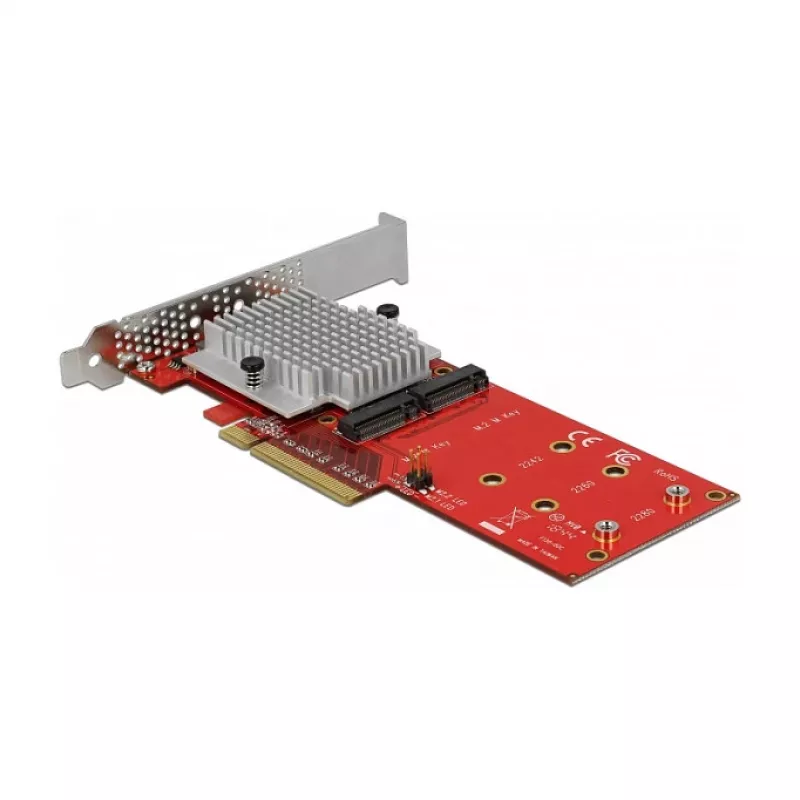

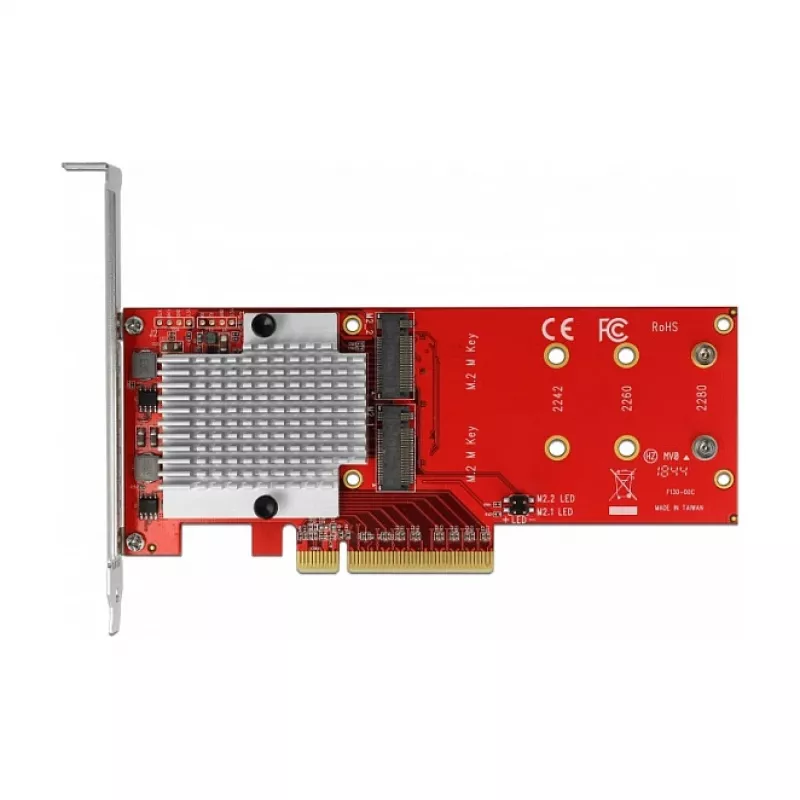

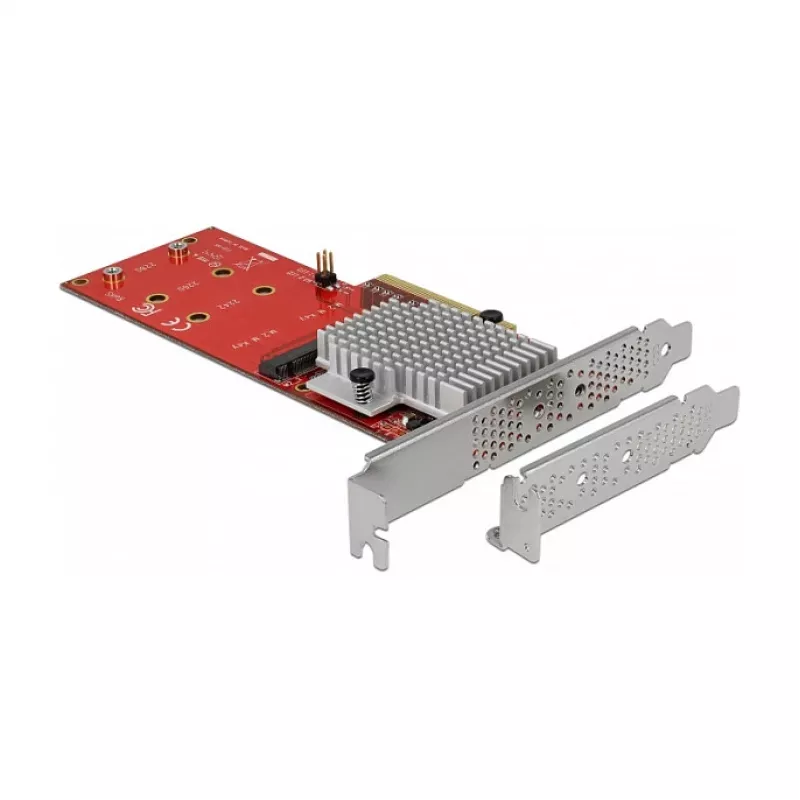

This PCI Express card by Delock expands a PC with two M.2 NVMe slots, supporting M.2 formats 2280, 2260, 2242 and 2230. The internal adapter uses the Asmedia ASM2824 chipset and is available in a low-profile form factor, making it suitable for desktops and small-form-factor systems that require additional high-speed storage.

Advantages

The DeLOCK 90305 provides two simultaneous M.2 NVMe connections over a PCIe host interface, enabling increased storage capacity and high transfer rates up to the chipset's supported bandwidth. Its compatibility with multiple M.2 lengths and low-profile bracket improves installation flexibility in different PC cases.

Suitable for

Key specifications

How to use

Install the card into an available PCIe slot on the motherboard, secure the low-profile bracket if required, and attach up to two M.2 NVMe SSDs in the supported lengths. Ensure the SSDs are correctly seated and fastened with the supplied standoffs or screws. After hardware installation, boot the system and verify detection in the BIOS/UEFI or operating system. Install any necessary drivers if the OS does not automatically recognize the controller.

Recommendations

For optimal performance, install NVMe SSDs that match the PCIe lane and bandwidth capabilities of your motherboard. Verify physical clearance in compact cases before installation and consult the motherboard manual for PCIe lane allocation when multiple add-in cards are used.
