DeLOCK PCI Express x16 Card to 4 x internal NVMe M.2 Key M 110 mm Bifurcation

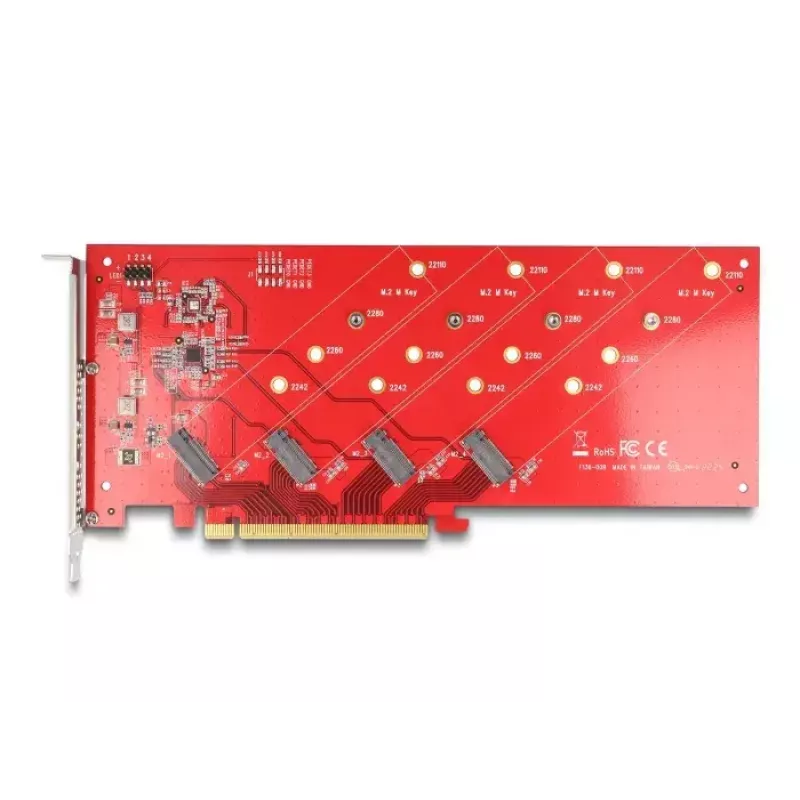

This PCI Express x16 card by DELOCK provides four internal M.2 Key M NVMe slots and is intended to expand a PC's storage capacity by connecting up to four M.2 SSDs in sizes 22110, 2280, 2260 and 2242. The card uses the PCIe host interface and is designed for installation into a PCIe x16 slot; the product colour is red. The card is supplied in a box.

Advantages

The card supports up to four NVMe M.2 SSDs, enabling higher aggregate storage capacity and potential parallel performance when the motherboard supports PCIe bifurcation. It fits multiple M.2 lengths (22110, 2280, 2260, 2242) and installs into a PCIe x16 slot for direct PCIe connectivity.

Suitable for

Key specifications

How to use

Install the DELOCK card into an available PCIe x16 slot on the motherboard. Mount up to four M.2 NVMe SSDs of supported lengths into the M.2 slots and secure them according to the motherboard or card mounting points. Configure the motherboard BIOS/UEFI to enable PCIe bifurcation so the PCIe lanes are split across the multiple M.2 ports; without PCIe bifurcation only the first M.2 slot will be usable. After hardware installation and BIOS configuration, initialize and format the drives within the operating system as required.

Recommendations

Ensure your motherboard supports PCIe bifurcation and that the BIOS/UEFI settings are configured correctly before installing multiple NVMe drives; consult the motherboard manual for bifurcation options and lane allocation. Verify thermal management for multiple NVMe SSDs, as high-performance drives may require additional cooling.
