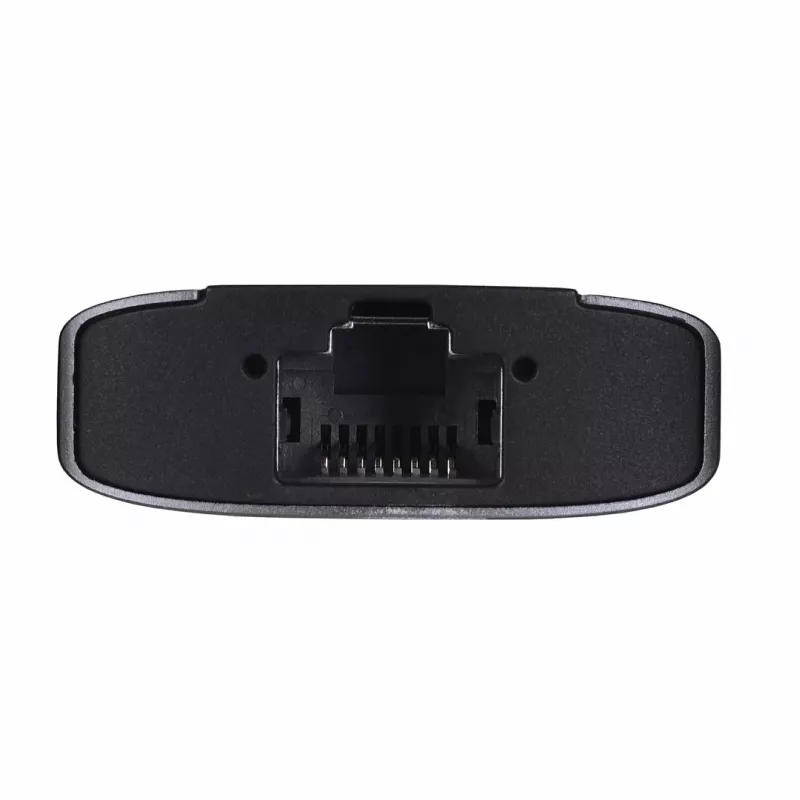

Interface Hub UNITEK H1112F USB 3.2 Gen 1 Type-C

The UNITEK H1112F 6-in-1 Multiport USB-C HUB expands a USB-C laptop or host into multiple ports including HDMI, RJ-45 Gigabit Ethernet, two USB-A 3.0 ports and a USB-C 3.0 port. The compact grey hub supports USB 3.2 Gen 1 (also labelled 3.1 Gen 1) connectivity and enables video output, high-speed data transfer and power delivery passthrough.

Advantages

This USB-C hub supports up to 4K@30Hz (3840 x 2160) or 1080P@60Hz HDMI output for mirroring or extending a display, Gigabit Ethernet for stable wired network access, and up to 100W Power Delivery pass-through to charge the host while other ports are in use. Two USB-A 3.0 ports and one USB-C 3.0 port provide up to 5 Gbps data transfer speeds for fast file and media transfer. An LED indicator shows status for data transmission and Ethernet connection. The device is plug-and-play when the host supports USB-C display output.

Suitable for

• Connecting a USB-C laptop to an external monitor or projector (4K@30Hz / 1080P@60Hz)
• Adding wired Gigabit Ethernet to a laptop or tablet
• Connecting USB peripherals and external storage with USB 3.0 speeds
• Charging a USB-C laptop while using multiple peripherals (up to 100W PD passthrough)
• Creating a compact workstation for remote work or presentations

Key specifications

• Model: UNITEK H1112F
• Host interface: USB 3.2 Gen 1 (Type-C)
• Ports: HDMI, RJ-45 (Gigabit Ethernet), 2× USB-A 3.0, 1× USB-C 3.0 (data), total 6 ports
• Max HDMI resolution: 3840 × 2160 @30Hz (or 1080P @60Hz)
• Data transfer speed: up to 5 Gbps (USB 3.0 / USB 3.2 Gen 1)
• Power Delivery: up to 100W passthrough
• Colour: Grey
• Dimensions: 124 mm × 37 mm × 13.3 mm

How to use

Plug the UNITEK H1112F into a USB-C host port that supports display output. Connect an HDMI cable from the hub to an external monitor or projector to mirror or extend the screen. For wired network, connect an Ethernet cable to the RJ-45 port. Attach USB devices or external drives to the USB-A or USB-C ports for data transfer. If charging the laptop, connect a USB-C PD charger to the hub’s PD input to enable up to 100W passthrough while other ports remain active.

Recommendations

The host device must support USB-C display output for video transmission via HDMI. Use high-quality HDMI and Ethernet cables for reliable signal and network performance. When using high-power laptops, ensure the connected PD charger provides sufficient wattage to maintain battery charge while under load.
