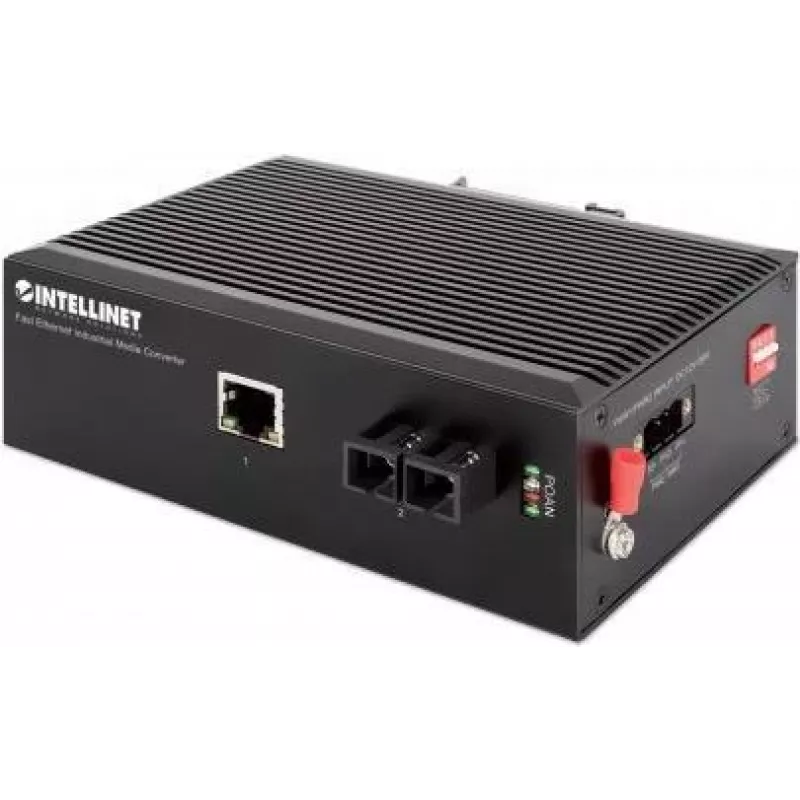

Intellinet Industrial Fast Ethernet Media Converter, 100Base-TX to 100Base-FX (SC) Single-mode, 20 km, IP40-rated Metal Housing, DIN-rail Mount

Intellinet Industrial Fast Ethernet Media Converter, 100Base-TX to 100Base-FX (SC) Single-mode, 20 km, IP40-rated Metal Housing, DIN-rail Mount
Intellinet Industrial Fast Ethernet Media Converter, 100Base-TX to 100Base-FX (SC) Single-mode, 20 km, IP40-rated Metal Housing, DIN-rail Mount
R2,780
Industrial Media Converter - expand your existing network in harsh industrial environmentsThe Intellinet Network Solutions Fast Ethernet Industrial Media Converter offers the network designer a device for migration from copper-based Ethernet to Fiber Ethernet. Now, migration or expansion of existing... Read More
Stock 2 Code 2236992 Brand Intellinet Model 508322 Warranty 2 Years

Shipping & Returns

Estimated delivery Thursday, October 8
You will be kept updated through our detailed tracking system
Payment options
EFTPayFastBank CardSnapScanZapperGoogle PayApple PayMobicredMoreTymePay on Arrival
Industrial Media Converter - expand your existing network in harsh industrial environments
The Intellinet Network Solutions Fast Ethernet Industrial Media Converter offers the network designer a device for migration from copper-based Ethernet to Fiber Ethernet. Now, migration or expansion of existing networks can be achieved with minimum cost and complexity. The converter is completely transparent to the network, so the network performs exactly the way it did before, only now it can support both copper and fiber media. It provides fiber connectivity to Ethernet segments, allowing for even greater networking expansion between extended workgroups. It also provides building-to-building connectivity without the need for the cost and disruption associated with the installation of additional routers.

Equipped even for challenging environment conditions
With its rugged, protective, IP40-rated metal housing, the converter operates reliably, even in extreme temperatures from -40 - 75℃ (-40 - 167°F). In combination with its DIN-rail mounting option and two safe redundant DC power inputs with plenty of other safety features, this converter is ideal for IoT applications in Industry 4.0 and more.

Intellinet Industrial Fast Ethernet Media Converter, 100Base-TX to 100Base-FX (SC) Single-mode, 20 km, IP40-rated Metal Housing, DIN-rail Mount. Networking standards: IEEE 802.3, IEEE 802.3u, Ethernet interface type: Fast Ethernet, Ethernet LAN data rates: 10,100 Mbit/s. Maximum transfer distance: 20000 m, Wavelength: 1310 nm, Fiber mode structure: Single-mode. Product colour: Black, Housing material: Metal. Input voltage: 12 - 58 V. Width: 104 mm, Depth: 143 mm, Height: 48 mm

Key Highlights
  • One 10/100 RJ45 port supporting a maximum distance of 100 m (300 ft.)
  • One 100Base-FX fiber SC single-mode port supporting a maximum distance of 20 km (12.4 mi.)
  • IP40 slim-type metal housing to withstand harsh industrial conditions
  • Option for DIN-rail installation
  • Two redundant DC inputs (12 - 58 V) with I/O terminal block
  • Requires industrial power supply (not included)
  • Port surge protection up to 6 kV
  • Rated for shock (IEC 60068-2-27), freefall (IEC 60068-2-32) and vibration (IEC 60068-2-6)
  • Wavelength: 1310 nm
  • Supports full-duplex and half-duplex modes with autonegotiation
  • Wide operating temperature: -40 - 75℃ (-40 - 167°F)
  • Supports 8k MAC address entries with Auto-learning and Auto-aging
  • Buffer memory of 1 MByte
  • Supports jumbo frames up to 10 kBytes
  • Fanless design for silent operation
  • 20000 m 1310 nm
  • Terminal block port
  • Single-mode 8/125,8.3/125,8.7/125,10/125 µm
  • Black
Specifications
Cable types supported
Cat5e
Certification
FCC Class B, CE, RoHS
Depth
143 mm
Ethernet interface type
Fast Ethernet
Ethernet LAN data rates
10,100 Mbit/s
Fiber cable diameters supported (core/cladding)
8/125,8.3/125,8.7/125,10/125 µm
Fiber mode structure
Single-mode
Harmonized System (HS) code
85176990
Height
48 mm
Housing material
Metal
Input voltage
12 - 58 V
Internal
No
Jumbo frames support
Yes
LED indicators
Yes
Manual
Yes
Maximum transfer distance
20000 m
Networking standards
IEEE 802.3, IEEE 802.3u
Operating relative humidity (H-H)
5 - 90%
Operating temperature (T-T)
-40 - 75 °C
Product colour
Black
Storage temperature (T-T)
-40 - 85 °C
Supported network protocols
UTP/STP
Terminal block port
Yes
Tx power (max)
-3 dBmW
Tx power (min)
-9 dBmW
Wavelength
1310 nm
Weight
600 g
Width
104 mm

Manual

Open Manual

Leaflet

Open Leaflet

Document

Open Document
