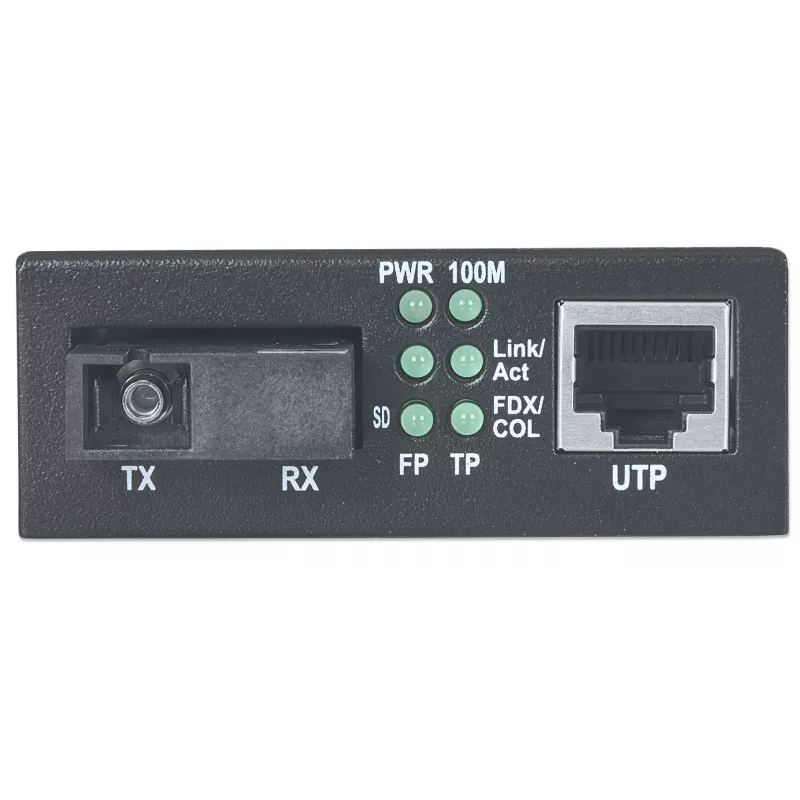

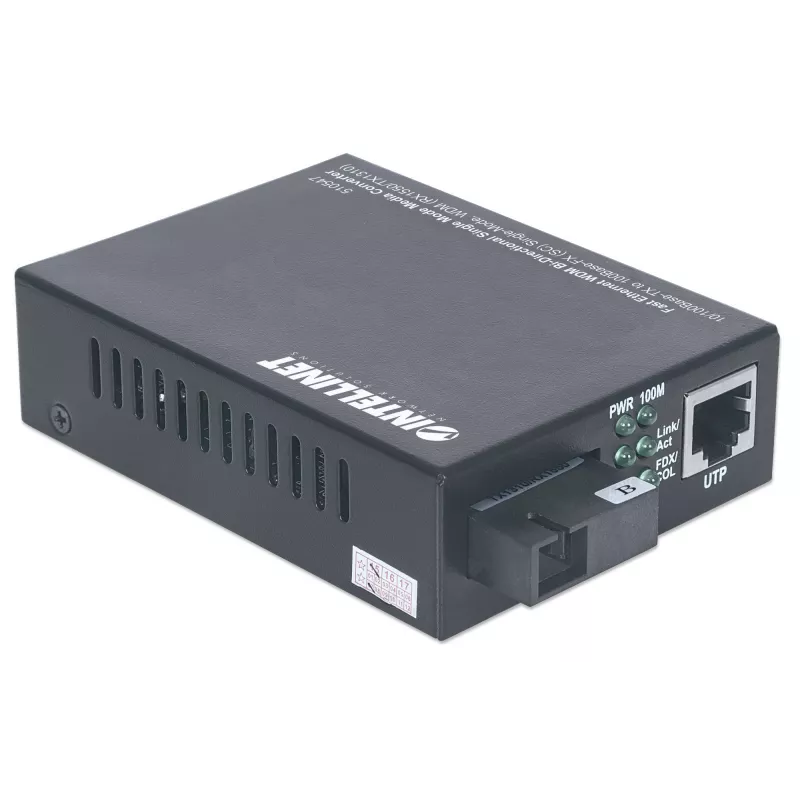

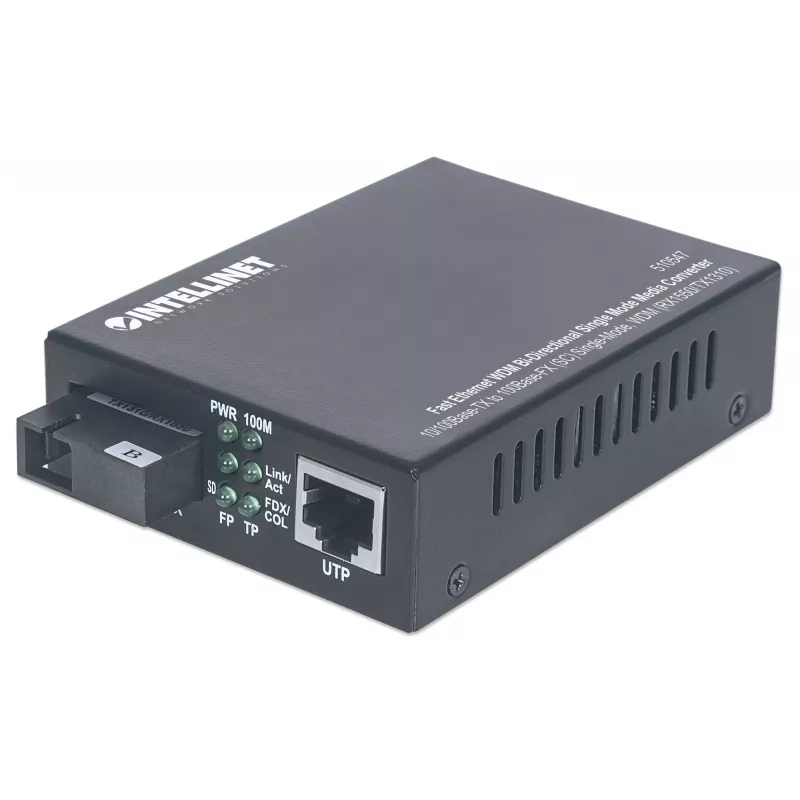

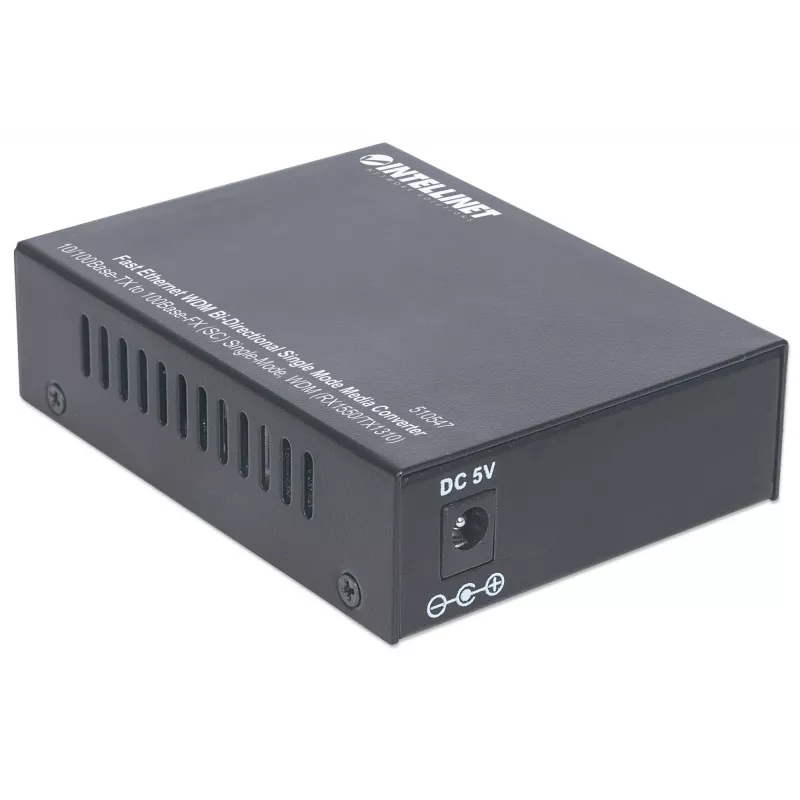

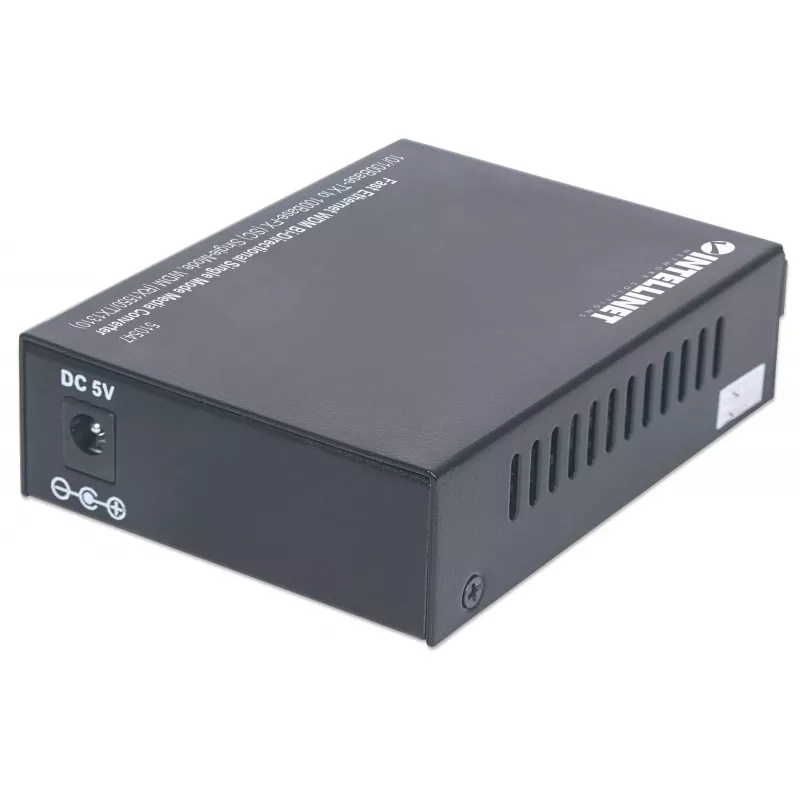

Intellinet Fast Ethernet WDM Bi-Directional Single Mode Media Converter, 10/100Base-Tx to 100Base-Fx (SC) Single-Mode, 20 km (12.4 mi.), WDM (Rx1550/Tx1310)

Intellinet Fast Ethernet WDM Bi-Directional Single Mode Media Converter, 10/100Base-Tx to 100Base-Fx (SC) Single-Mode, 20 km (12.4 mi.), WDM (Rx1550/Tx1310)
Intellinet Fast Ethernet WDM Bi-Directional Single Mode Media Converter, 10/100Base-Tx to 100Base-Fx (SC) Single-Mode, 20 km (12.4 mi.), WDM (Rx1550/Tx1310)
Intellinet Fast Ethernet WDM Bi-Directional Single Mode Media Converter, 10/100Base-Tx to 100Base-Fx (SC) Single-Mode, 20 km (12.4 mi.), WDM (Rx1550/Tx1310)
Intellinet Fast Ethernet WDM Bi-Directional Single Mode Media Converter, 10/100Base-Tx to 100Base-Fx (SC) Single-Mode, 20 km (12.4 mi.), WDM (Rx1550/Tx1310)
Intellinet Fast Ethernet WDM Bi-Directional Single Mode Media Converter, 10/100Base-Tx to 100Base-Fx (SC) Single-Mode, 20 km (12.4 mi.), WDM (Rx1550/Tx1310)
Intellinet Fast Ethernet WDM Bi-Directional Single Mode Media Converter, 10/100Base-Tx to 100Base-Fx (SC) Single-Mode, 20 km (12.4 mi.), WDM (Rx1550/Tx1310)
Intellinet Fast Ethernet WDM Bi-Directional Single Mode Media Converter, 10/100Base-Tx to 100Base-Fx (SC) Single-Mode, 20 km (12.4 mi.), WDM (Rx1550/Tx1310)
Intellinet Fast Ethernet WDM Bi-Directional Single Mode Media Converter, 10/100Base-Tx to 100Base-Fx (SC) Single-Mode, 20 km (12.4 mi.), WDM (Rx1550/Tx1310)
Intellinet Fast Ethernet WDM Bi-Directional Single Mode Media Converter, 10/100Base-Tx to 100Base-Fx (SC) Single-Mode, 20 km (12.4 mi.), WDM (Rx1550/Tx1310)
Intellinet Fast Ethernet WDM Bi-Directional Single Mode Media Converter, 10/100Base-Tx to 100Base-Fx (SC) Single-Mode, 20 km (12.4 mi.), WDM (Rx1550/Tx1310)
Intellinet Fast Ethernet WDM Bi-Directional Single Mode Media Converter, 10/100Base-Tx to 100Base-Fx (SC) Single-Mode, 20 km (12.4 mi.), WDM (Rx1550/Tx1310)
Intellinet Fast Ethernet WDM Bi-Directional Single Mode Media Converter, 10/100Base-Tx to 100Base-Fx (SC) Single-Mode, 20 km (12.4 mi.), WDM (Rx1550/Tx1310)
Intellinet Fast Ethernet WDM Bi-Directional Single Mode Media Converter, 10/100Base-Tx to 100Base-Fx (SC) Single-Mode, 20 km (12.4 mi.), WDM (Rx1550/Tx1310)
Intellinet Fast Ethernet WDM Bi-Directional Single Mode Media Converter, 10/100Base-Tx to 100Base-Fx (SC) Single-Mode, 20 km (12.4 mi.), WDM (Rx1550/Tx1310)
R1,194
The Intellinet Network Solutions Fast Ethernet WDM (bi-directional wavelength division multiplexing) Media Converter utilizes a single strand of fibre to transmit network traffic on separate receive and transmit wavelengths (1550/1310 nm). This innovative technology allows you to effectively use the... Read More
Stock 82 Code 2227162 Brand Intellinet Model 510547 Warranty 2 Years

Shipping & Returns

Estimated delivery Wednesday, October 7
You will be kept updated through our detailed tracking system
Payment options
EFTPayFastBank CardSnapScanZapperGoogle PayApple PayMobicredMoreTymePay on Arrival
The Intellinet Network Solutions Fast Ethernet WDM (bi-directional wavelength division multiplexing) Media Converter utilizes a single strand of fibre to transmit network traffic on separate receive and transmit wavelengths (1550/1310 nm). This innovative technology allows you to effectively use the two strands for two independent connections or to double the capacity without digging in a second fibre cable. The converter is completely transparent to the network so the network performs exactly the way it did before - only now it can support both copper and fibre mediums.

Expands the Size of an Existing Network
This converter Provides fibre connectivity to Ethernet segments, allowing for even further networking expansion between extended workgroups. It also provides building-to-building connectivity without the cost and disruption associated with the installation of additional routers.

Enhances the Distance between Networking Devices
Connecting the converter to fibre segments can further extend distances between networking nodes. This can be achieved by direct connection between the converter and a fibre-based node or networking device.

Cabling Flexibility
Network managers can install fibre cabling anywhere within a network without changing the arrangement of copper-based Ethernet. The compact size of the converter allows it to be easily deployed in any narrow desktop location or to be used in a wallmount installation. Several converters can be simultaneously installed into a 19"; rack-mountable chassis.

Intellinet Fast Ethernet WDM Bi-Directional Single Mode Media Converter, 10/100Base-Tx to 100Base-Fx (SC) Single-Mode, 20 km (12.4 mi.), WDM (Rx1550/Tx1310). Maximum data transfer rate: 100 Mbit/s, Converter input interface: 10Base-T, 100Base-TX, Converter output interface: 100Base-FX. Maximum transfer distance: 20000 m, Fiber mode structure: Single-mode, Fiber cable diameters supported (core/cladding): 9/125 µm. Product colour: Black, Housing material: Metal. Fiber optic connector: SC, Connectivity technology: Wired. Output voltage: 5 V, Output current: 1.2 A, Power consumption (max): 5 W

Key Highlights
  • Fibre SC-type dual-wavelength single-mode port connects over distances of up to 20 km (12.4 miles)
  • Must be used with Fast Ethernet WDM Bi-Directional Single Mode Media Converter, model 510530
  • Data transfer rate: 100 Mbps
  • WDM (wavelength division multiplexing) technology utilizes only one strand of fibre to transmit data on separate receive and transmit wavelengths
  • Wavelengths: receive (RX), 1550 nm; transmit (TX), 1310 nm
  • 10/100Base-TX RJ45 port, maximum distance 100 m / 300 ft. (Cat5e and better)
  • RJ45 port with Auto MDI/MDI-X support
  • 100Base-FX single-mode Fibre SC port
  • Status LEDs for easy monitoring of device status
  • Functions as a stand-alone converter or can be used with the 14-slot Media Converter Chassis, model 507356

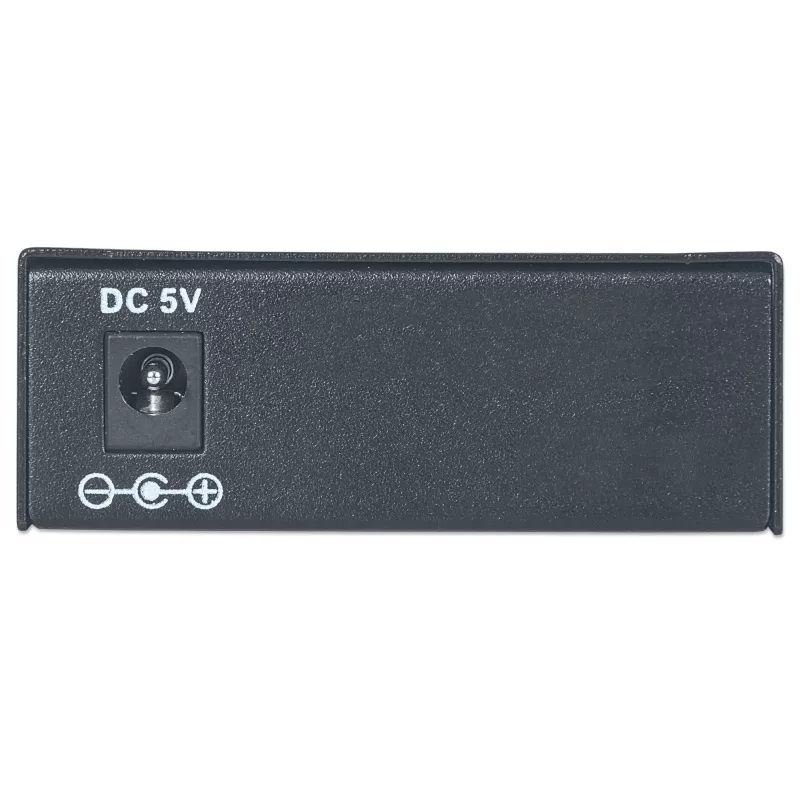

  • External power adapter, 5 VDC
  • Three-Year Warranty
  • Wired
  • 100 Mbit/s 20000 m
  • 10BASE-T, 100BASE-TX
  • 100BASE-FX
  • Ethernet LAN (RJ-45) ports: 1 DC-in jack
  • Single-mode Fiber ports quantity: 1 SC 9/125 µm
  • Black
Specifications
AC adapter included
Yes
Auto MDI/MDI-X
Yes
Cable types supported
Cat5e
Certification
FCC Class A, CE
Connectivity technology
Wired
Converter input interface
10Base-T, 100Base-TX
Converter output interface
100Base-FX
Copper ethernet cabling technology
10BASE-T, 100BASE-TX
DC-in jack
Yes
Depth
105 mm
Duplex system
Full
Ethernet interface type
Fast Ethernet
Ethernet LAN (RJ-45) ports
1
Ethernet LAN data rates
10,100 Mbit/s
External power adapter
Yes
Fiber cable diameters supported (core/cladding)
9/125 µm
Fiber ethernet cabling technology
100BASE-FX
Fiber mode structure
Single-mode
Fiber optic connector
SC
Fiber ports quantity
1
Harmonized System (HS) code
85176990
Height
25 mm
Housing material
Metal
Internal
No
LED indicators
Yes
Manual
Yes
Maximum data transfer rate
100 Mbit/s
Maximum transfer distance
20000 m
Mean time between failures (MTBF)
100000 h
Networking standards
IEEE 802.3, IEEE 802.3u
Operating relative humidity (H-H)
10 - 80%
Operating temperature (T-T)
0 - 50 °C
Output current
1.2 A
Output voltage
5 V
Power consumption (max)
5 W
Product colour
Black
Sensitivity
-32 dBmW
Storage temperature (T-T)
-20 - 70 °C
Tx power (max)
-3 dBmW
Tx power (min)
-15 dBmW
Wavelength-division multiplexing (WDM)
Yes
Weight
180 g
Width
69 mm

Manual

Open Manual

Leaflet

Open Leaflet

Manual

Open Manual
